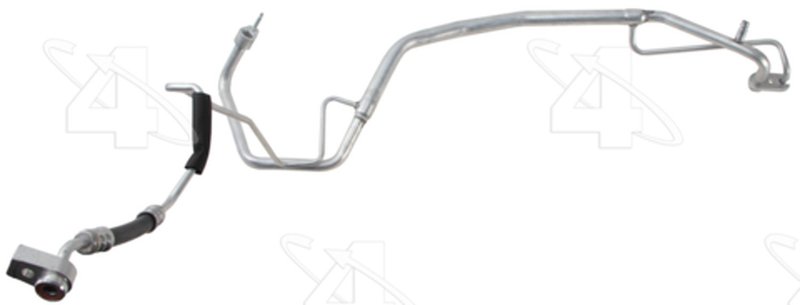

Four Seasons 65568 A/C Suction and Liquid Line Hose Assembly

Reliable A/C Suction and Liquid Line Hose Assembly for Ford Ranger

The Four Seasons Hose Assembly part number 65568 is designed specifically for Ford Ranger models requiring a durable and efficient HVAC hose solution. Engineered with aluminum and rubber materials, this hose assembly supports R1234yf refrigerant systems, ensuring compatibility with modern air conditioning setups.

Key Features of Four Seasons Hose Assembly 65568

• Constructed from aluminum and rubber for durability and flexibility
• Equipped with P-nut fittings on both ends for secure connections
• Includes gasket and multiple O-rings (24257, 24404, 24401) for reliable sealing
• Compatible with R1234yf refrigerant type used in newer Ford Ranger A/C systems
• Includes service port for maintenance access
• Hose assembly style with integrated heat exchanger (IHX)
• Does not include bracket or muffler, designed for direct replacement

About the Four Seasons Hose Assembly Product Line

The Four Seasons Hose Assembly line focuses on providing complete hose assemblies tailored for HVAC systems in various vehicles. This product line emphasizes precise fitment and material quality to maintain system integrity and refrigerant containment. The 65568 hose assembly is part of this line, offering a ready-to-install solution for Ford Ranger air conditioning suction and liquid lines.

Detailed Product Description

This A/C suction and liquid line hose assembly (part number 65568) is engineered to meet the specific requirements of Ford Ranger models using R1234yf refrigerant. The combination of aluminum and rubber materials provides a balance of strength and flexibility, essential for withstanding pressure and vibration within the HVAC system. Both ends feature P-nut fittings, ensuring a secure and leak-resistant connection. The included gasket and three O-rings (sealing washer 24257 and slim line sealing washers 24404 and 24401) enhance sealing performance, reducing the risk of refrigerant leaks. The assembly also includes a service port to facilitate system maintenance without disassembly.

Common Applications and Issues Addressed

• Replacement of worn or damaged A/C suction and liquid line hoses in Ford Ranger vehicles
• Resolving refrigerant leaks caused by degraded seals or fittings
• Upgrading to a hose assembly compatible with R1234yf refrigerant systems
• Restoring proper refrigerant flow and pressure in the A/C system
• Eliminating noise or vibration issues related to hose failure

Installation Notes and Tips

When installing the Four Seasons Hose Assembly 65568 on a Ford Ranger, ensure all old seals and fittings are removed and the connection points are clean. Use the included gasket and O-rings to achieve a proper seal. Verify that the P-nut fittings are tightened to manufacturer torque specifications to prevent leaks. The hose assembly does not include a bracket or muffler, so reuse existing mounting hardware if applicable. The service port allows for easy refrigerant charging and system diagnostics after installation.

Quality Assurance and Warranty

Four Seasons products are manufactured to meet industry standards for HVAC components. This hose assembly is built to provide reliable service life under normal operating conditions. While specific warranty details are not provided here, Four Seasons typically offers coverage against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
