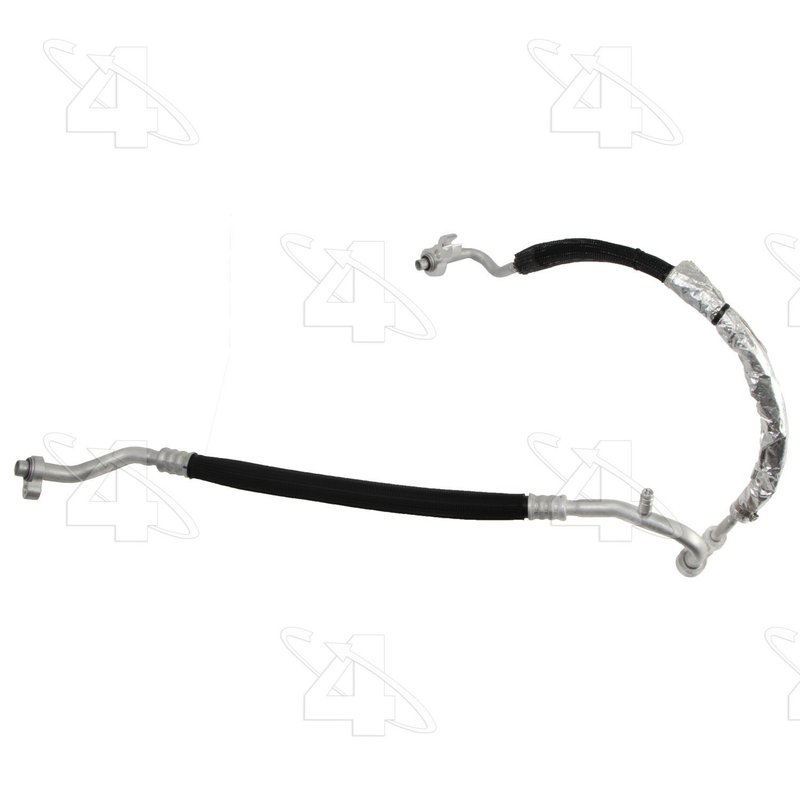

Four Seasons 66152 A/C Refrigerant Discharge / Suction Hose Assembly

Overview of Four Seasons Hose Assembly 66152

The Four Seasons Hose Assembly 66152 is designed specifically for Chrysler 200 models, providing reliable A/C refrigerant discharge and suction line functionality. Constructed with durable aluminum and rubber materials, this hose assembly supports R1234yf refrigerant systems and includes essential seals for a secure fit.

• Compatible with Chrysler 200 vehicles
• Constructed from aluminum and rubber for durability
• Designed for R1234yf refrigerant type
• Includes slimline washer O-rings for leak prevention
• Features P-nut fittings on both discharge and suction ends
• Includes manifold block and service port with switch port
• OE replacement part ensuring proper fit and function

Detailed Product Description

This Four Seasons Hose Assembly 66152 belongs to the Hose Assembly product line, which focuses on delivering precise HVAC hose and pipe solutions for automotive air conditioning systems. The assembly combines aluminum and rubber materials to withstand pressure and temperature variations typical in A/C refrigerant lines. It is engineered for use with R1234yf refrigerant, a common refrigerant in modern Chrysler 200 models.

The assembly includes two sets of slimline washer O-rings (part numbers 24402 and 24404) to ensure a tight seal and prevent refrigerant leaks. Both discharge and suction ends utilize P-nut fittings, with the suction end featuring a male P-nut fitting and the discharge end a P-nut fitting style. The manifold block is integrated into the assembly, and the unit comes with a service port equipped with a switch port, although it does not include a bracket or muffler.

Common Applications and Issues Addressed

• Replacement of worn or damaged A/C refrigerant discharge and suction hoses on Chrysler 200
• Resolving refrigerant leaks caused by degraded seals or fittings
• Restoring proper refrigerant flow in R1234yf systems
• Addressing issues related to faulty or missing service ports
• Ensuring compatibility with OEM specifications for HVAC hose assemblies

Installation Notes and Tips

When installing the Four Seasons Hose Assembly 66152, ensure all O-rings are properly seated to prevent leaks. The included slimline washers should be inspected for damage before installation. Since this assembly does not include a bracket or muffler, verify existing mounting points and supports on the Chrysler 200. Use appropriate tools to tighten P-nut fittings to manufacturer torque specifications. Confirm the service port switch is correctly connected if applicable.

Quality Assurance and Warranty

Four Seasons provides this hose assembly as an OE replacement part, meeting original equipment standards for fit, form, and function. The inclusion of all necessary seals and O-rings supports reliable performance. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship.
