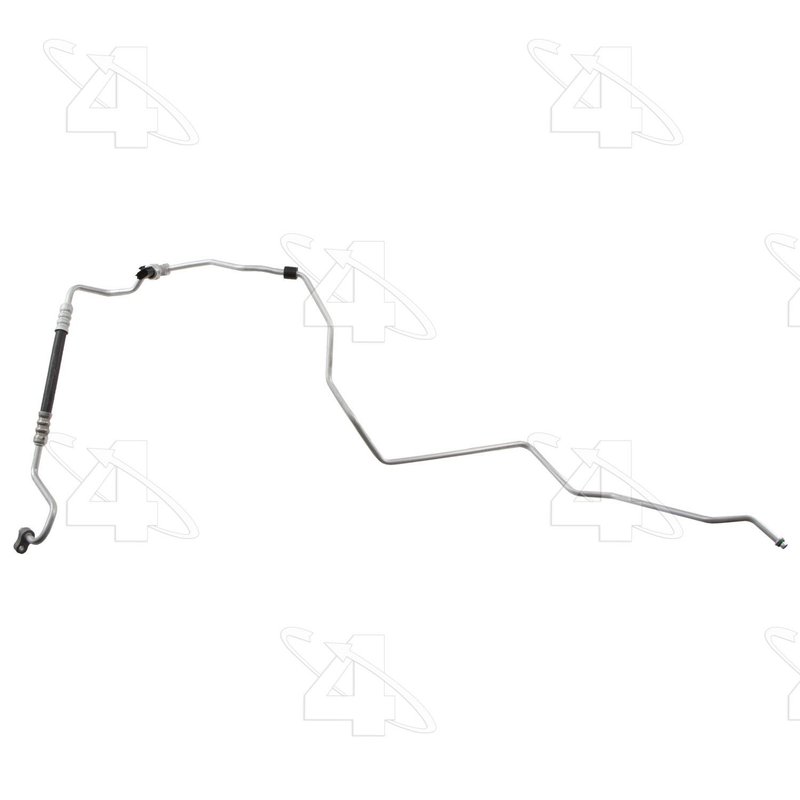

Four Seasons 66514 A/C Refrigerant Liquid Hose

Overview of Four Seasons Hose Assembly 66514

The Four Seasons Hose Assembly 66514 is designed specifically for Hyundai Santa Fe models requiring a reliable A/C refrigerant liquid hose. Constructed with durable aluminum and rubber materials, this hose assembly supports high-pressure R134a refrigerant systems, ensuring consistent performance in your vehicle's HVAC system.

Key Features of the Four Seasons 66514 Hose Assembly

• Material: Combination of aluminum and rubber for durability and flexibility
• Refrigerant Type: Compatible with R134a refrigerant
• System Pressure: Rated for high-pressure applications
• Includes gasket or seal for secure connections
• Equipped with a switch service port (M10x1.25 size)
• Liquid line style features P-nut fittings with male gender
• Includes two O-rings for proper sealing
• Comes with an orifice tube integrated
• OE replacement part ensuring proper fit and function
• Does not include a bracket or service port

About the Four Seasons Hose Assembly Product Line

The Four Seasons Hose Assembly line focuses on providing precise HVAC hose assemblies tailored for specific vehicle applications. This product line emphasizes compatibility and quality, offering assemblies that meet original equipment specifications. The 66514 hose assembly is part of this line, designed to maintain the integrity of the Hyundai Santa Fe’s air conditioning system by delivering a reliable liquid line connection without the need for additional brackets.

Detailed Product Description

This A/C refrigerant liquid hose assembly is engineered for the Hyundai Santa Fe, featuring a robust aluminum and rubber construction that withstands the demands of high-pressure R134a refrigerant systems. The hose includes a male liquid line with P-nut fittings on both the liquid and suction ends, facilitating secure and leak-free connections. The inclusion of two O-rings and a gasket ensures a tight seal, while the integrated orifice tube helps regulate refrigerant flow. The assembly also features a switch service port sized M10x1.25, allowing for system diagnostics or pressure monitoring without compromising the hose integrity. This hose assembly does not include a bracket or service port, aligning with original equipment design for straightforward installation and compatibility.

Common Applications and Issues Addressed

• Replacement of worn or damaged A/C refrigerant liquid hoses in Hyundai Santa Fe vehicles
• Resolving refrigerant leaks caused by cracked or deteriorated hose materials
• Addressing poor A/C system performance due to faulty orifice tube integration
• Fixing pressure inconsistencies in high-pressure refrigerant lines
• Ensuring proper sealing and connection with included gaskets and O-rings

Installation Notes and Tips

• Verify compatibility with Hyundai Santa Fe model year before installation
• Ensure all O-rings and gaskets are properly seated to prevent leaks
• Use appropriate tools for P-nut fittings to avoid damage during installation
• Check the switch service port for correct size (M10x1.25) before connecting diagnostic equipment
• Follow manufacturer torque specifications for fittings to maintain system integrity

Quality Assurance and Warranty

The Four Seasons Hose Assembly 66514 is manufactured to meet or exceed original equipment standards, providing reliable performance in Hyundai Santa Fe HVAC systems. This part is an OE replacement, ensuring fit and function consistent with factory specifications. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
