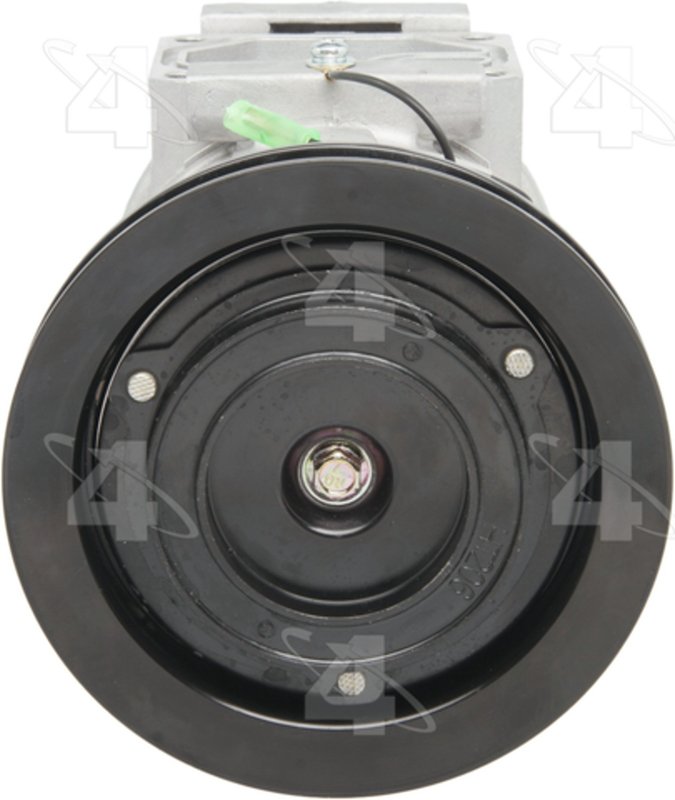

Four Seasons 68301 A/C Compressor

Overview of Four Seasons New Compressor 68301

The Four Seasons New Compressor 68301 is designed for reliable air conditioning performance in select Dodge, Mitsubishi, and Toyota vehicles. Engineered to meet OEM specifications, this A/C compressor supports R134a refrigerant systems and comes complete with clutch and oil for efficient operation.

• Compatible with Dodge Montero, Mitsubishi Raider and Pickup, Toyota T100 models
• Refrigerant type: R134a with included oil (Pag 46 compatible)
• Compressor type: 10pa15c with 12V coil voltage
• Includes clutch assembly with 5.625 inch maximum diameter
• Single V-belt pulley with 1 groove and tangent mount design
• Pad mount suction and discharge ports for secure installation
• Terminal type: Butt connection with 1 wire lead coil clock position
• O-ring gasket included for compressor manifold port sealing

Four Seasons New Compressor Product Line Details

The Four Seasons New Compressor line offers brand-new, direct replacement compressors designed to restore factory A/C system performance. This product line focuses on delivering complete compressor assemblies that include clutch and oil, reducing installation time and ensuring compatibility with original equipment refrigerant and oil types. The 68301 model exemplifies this approach by providing a fully assembled unit ready for installation in compatible vehicles.

Technical Description and Features

This Four Seasons A/C compressor features a 10pa15c compressor type optimized for R134a refrigerant systems. It includes Pag 46 compatible oil pre-filled to maintain lubrication and system efficiency. The compressor is equipped with a single-groove V-belt pulley measuring approximately 5.625 inches in diameter, designed for tangent mounting with a 2.953 inch distance from clutch to mounting flange. The clutch assembly is included, featuring a maximum diameter of 5.625 inches and a coil voltage of 12 volts with a single wire lead terminal. Both suction and discharge ports utilize pad mount types, and the unit comes with an O-ring gasket (part number 24156) for the compressor manifold port. Mounting hardware is not included, so original equipment hardware should be reused or sourced separately.

Applications and Common Issues Addressed

• Replacement for failed or leaking A/C compressors in Dodge Montero, Mitsubishi Raider, Pickup, and Toyota T100
• Restores proper refrigerant compression and circulation in R134a systems
• Solves clutch engagement problems with included clutch assembly
• Addresses oil contamination or loss by providing pre-filled compressor oil
• Resolves pulley or belt slippage issues with correctly sized single-groove pulley

Installation Notes and Tips

• Verify compatibility with vehicle make and model before installation
• Use original equipment mounting hardware or equivalent, as hardware is not included
• Ensure proper refrigerant oil type (Pag 46) is used when servicing the system
• Check clutch coil wiring and terminal connections for secure fit
• May require use of original equipment manifold due to pad mount port design

Quality Assurance and Warranty

The Four Seasons New Compressor 68301 is a new, direct replacement part manufactured to meet or exceed OEM standards. It includes factory-installed oil and clutch assembly to ensure proper function upon installation. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or supplier for exact warranty terms.
