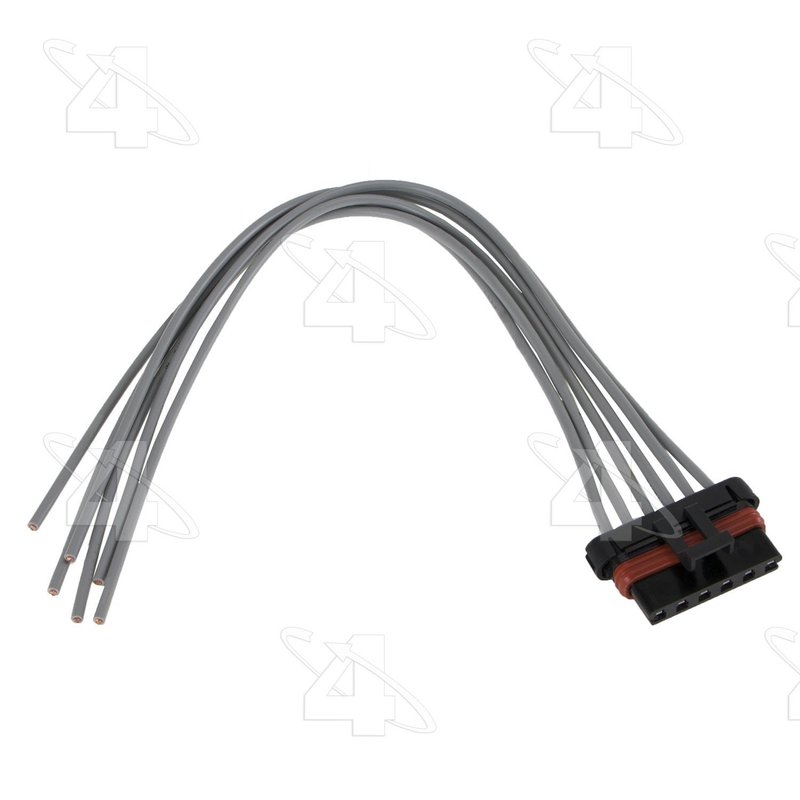

Four Seasons 70053 HVAC Blower Motor Resistor Harness - Front

Overview of Four Seasons Harness Connector 70053

The Four Seasons Harness Connector 70053 is designed for reliable HVAC blower motor resistor connections in select Chevrolet and GMC vehicles. This high temperature harness connector ensures secure electrical connections for optimal HVAC system performance in models like the Chevrolet Astro and GMC Savana series.

• High temperature harness connector for HVAC applications
• Rectangular connector shape with 6 terminals
• Male gender connector with female terminal gender
• Compatible with Chevrolet Astro, Express 1500/2500/3500, G30, Safari, and GMC Savana 1500/2500/3500
• Part number 70053 for precise identification

Four Seasons Harness Connector Product Line

The Harness Connector product line by Four Seasons focuses on durable and temperature-resistant connectors specifically engineered for HVAC systems. This line includes connectors designed to maintain secure electrical connections under high heat conditions, which is critical for blower motor resistor harnesses. The 70053 connector exemplifies this focus by providing a robust solution for wiring needs in Chevrolet and GMC vans and trucks.

Detailed Product Description

The Four Seasons 70053 harness connector features a rectangular design with six terminals, combining a male connector body with female terminal contacts. This configuration supports a stable and reliable connection within the HVAC blower motor resistor circuit. Its high temperature style ensures the connector withstands the heat generated by HVAC components, reducing the risk of electrical failure or connection degradation over time. The connector is engineered to meet the specific wiring requirements of Chevrolet Astro, Express 1500/2500/3500, G30, Safari, and GMC Savana 1500/2500/3500 models, ensuring compatibility and ease of integration.

Common Applications and Issues Addressed

• Replacement of damaged or corroded blower motor resistor harness connectors
• Resolving HVAC blower motor resistor circuit failures due to poor electrical connections
• Addressing intermittent blower motor operation caused by faulty wiring harness connectors
• Upgrading to a high temperature connector to improve durability in heat-prone HVAC systems
• Ensuring proper fitment and electrical contact in Chevrolet and GMC van HVAC systems

Installation Notes and Tips

• Verify vehicle compatibility with Chevrolet Astro, Express 1500/2500/3500, G30, Safari, or GMC Savana 1500/2500/3500 before installation
• Ensure the connector terminals are clean and free of corrosion prior to connection
• Use appropriate tools to securely attach the connector to the blower motor resistor harness
• Check for proper seating of the rectangular connector to avoid loose connections
• Inspect wiring for damage and replace if necessary to maintain system integrity

Quality Assurance and Warranty

Four Seasons maintains strict quality control standards for the 70053 harness connector, ensuring it meets OEM specifications for HVAC wiring components. The high temperature design is tested to withstand the thermal demands of blower motor resistor circuits. Warranty coverage details should be confirmed with the product documentation or supplier, as Four Seasons typically offers limited warranties on their HVAC electrical components.
