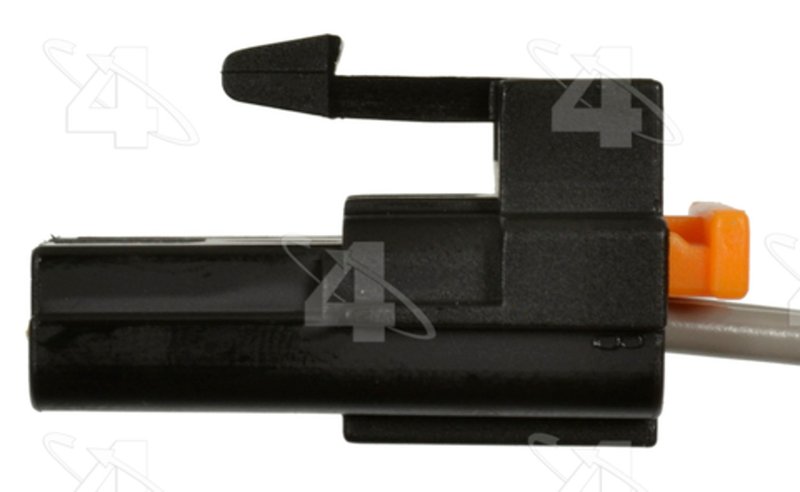

Four Seasons 70056 HVAC Blower Motor Resistor Harness - Front or Rear

Overview of Four Seasons Harness Connector 70056

The Four Seasons Harness Connector 70056 is a reliable HVAC blower motor resistor harness designed for a range of GM and related vehicles. This connector ensures secure electrical connections with its durable 12-gauge wire and blade terminals, making it suitable for maintaining proper HVAC system function in models like the Chevrolet Silverado and GMC Sierra.

• Compatible with multiple makes including Buick, Cadillac, Chevrolet, GMC, Hummer, Isuzu, Oldsmobile, Pontiac, Saab, and Saturn
• Features 12-gauge wire for optimal current capacity
• Includes two blade terminals with female terminal gender
• Rectangular connector shape for secure fitment
• 6-inch (152.4 mm) wire length for flexible installation
• Part number 70056 for precise identification

Detailed Product Description

The Four Seasons Harness Connector 70056 is part of the Harness Connector product line, which focuses on providing high-quality connectors specifically engineered for HVAC applications. This harness connector is designed with a rectangular shape and two female blade terminals, ensuring a secure and reliable connection to the blower motor resistor circuit. The 12-gauge wire gauge measurement supports adequate electrical flow, reducing the risk of voltage drops or overheating. With a 6-inch wire length, this connector offers enough flexibility for installation in various vehicle models.

Compatible Vehicles and Applications

This HVAC blower motor resistor harness connector is compatible with a wide range of vehicles, including but not limited to:

• Chevrolet Silverado 1500, 2500, and 3500 series
• GMC Sierra 1500, 2500, and 3500 series
• Cadillac Escalade and Escalade ESV
• Buick LaCrosse and Regal
• Hummer H2
• Isuzu Ascender and Bravada
• Oldsmobile Aurora and Intrigue
• Saab 9-7x
• Saturn Vue and Aura

Common Issues Addressed by This Harness Connector

• Intermittent blower motor operation due to faulty wiring connections
• HVAC blower motor resistor failures caused by poor electrical contact
• Electrical shorts or open circuits in the blower motor resistor harness
• Replacement of damaged or corroded connectors in HVAC wiring
• Restoring proper blower motor speed control functionality

Installation Notes and Tips

• Ensure the vehicle ignition is off before installation to prevent electrical shock
• Verify compatibility with your specific make and model using the part number 70056
• Inspect existing wiring and connectors for damage before replacement
• Use appropriate tools to disconnect and reconnect blade terminals securely
• Confirm proper seating of the rectangular connector to avoid loose connections

Quality Assurance and Warranty

Four Seasons products, including the Harness Connector 70056, are manufactured to meet or exceed OEM specifications for HVAC electrical components. This part undergoes rigorous quality control to ensure durability and reliable performance in demanding automotive environments. While specific warranty details may vary, Four Seasons typically offers coverage against defects in materials and workmanship, providing confidence in the longevity of this harness connector.
