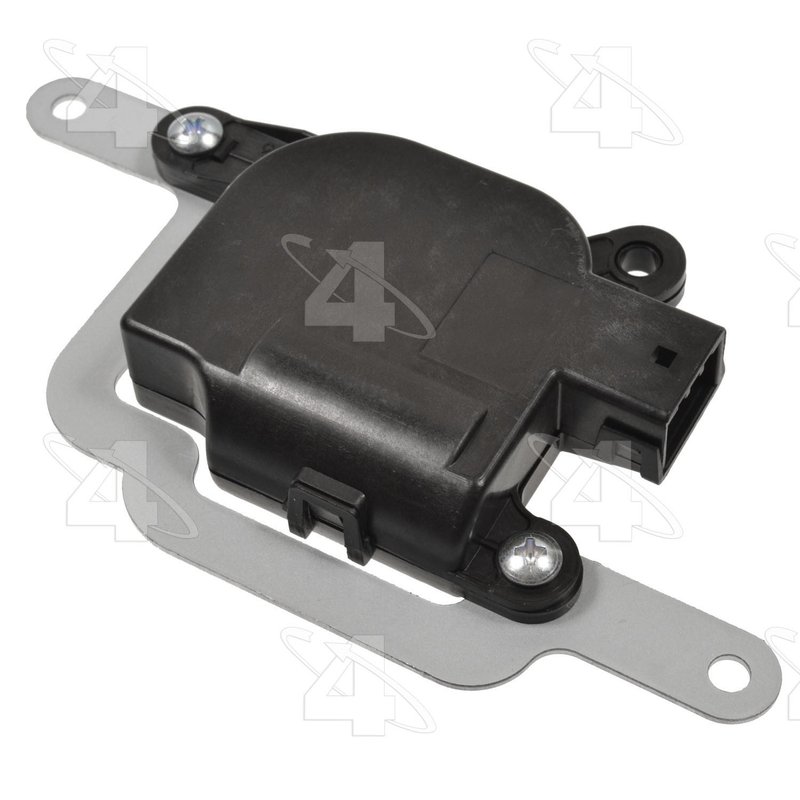

Four Seasons 73096 HVAC Mode Door Actuator

Reliable HVAC Mode Door Actuator for Hyundai Elantra

The Four Seasons Air Door Actuator 73096 is designed to restore proper airflow control in your Hyundai Elantra's HVAC system. This HVAC mode door actuator ensures precise operation of the air door linkage, maintaining optimal climate control inside your vehicle.

• Compatible with Hyundai Elantra models
• HVAC mode door actuator style for accurate air distribution
• Female door linkage for secure connection
• Equipped with 3 mounting ears for stable installation
• Features 5 terminal pins for reliable electrical connectivity

About the Four Seasons Air Door Actuator Product Line

The Air Door Actuator line by Four Seasons focuses on delivering dependable HVAC components that regulate airflow within vehicle climate control systems. This product line includes actuators engineered to match OEM specifications, ensuring consistent performance and fitment. The 73096 actuator is part of this line, providing a direct replacement solution for Hyundai Elantra HVAC systems requiring precise mode door operation.

Detailed Product Description

The Four Seasons 73096 HVAC mode door actuator is specifically designed for Hyundai Elantra vehicles. It features a female door linkage that interfaces securely with the HVAC system's air doors. The actuator includes three mounting ears, which facilitate a firm and accurate installation, minimizing vibration and misalignment. With five terminal pins, this actuator ensures stable electrical connections for consistent actuator response. Its HVAC air door actuator style is engineered to control the mode door position, directing airflow to the desired vents inside the cabin.

Common HVAC Issues Addressed by This Actuator

• Inconsistent or incorrect airflow direction inside the vehicle
• Failure of the HVAC mode door to move or respond properly
• Unusual noises from the HVAC system due to faulty actuator movement
• Inability to switch between heating, cooling, or defrost modes
• Intermittent or no response from the HVAC control panel

Installation Notes and Tips

• Ensure vehicle ignition is off before beginning installation
• Disconnect the battery to prevent electrical shorts during replacement
• Carefully remove the old actuator, noting the position of the door linkage
• Align the female door linkage of the new actuator correctly with the HVAC door
• Secure the actuator using the three mounting ears to avoid movement
• Reconnect the electrical connector with all five terminal pins properly seated

Quality Assurance and Warranty

Four Seasons manufactures the 73096 HVAC mode door actuator to meet or exceed OEM standards for durability and performance. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. Always verify warranty terms with the product documentation or supplier.
