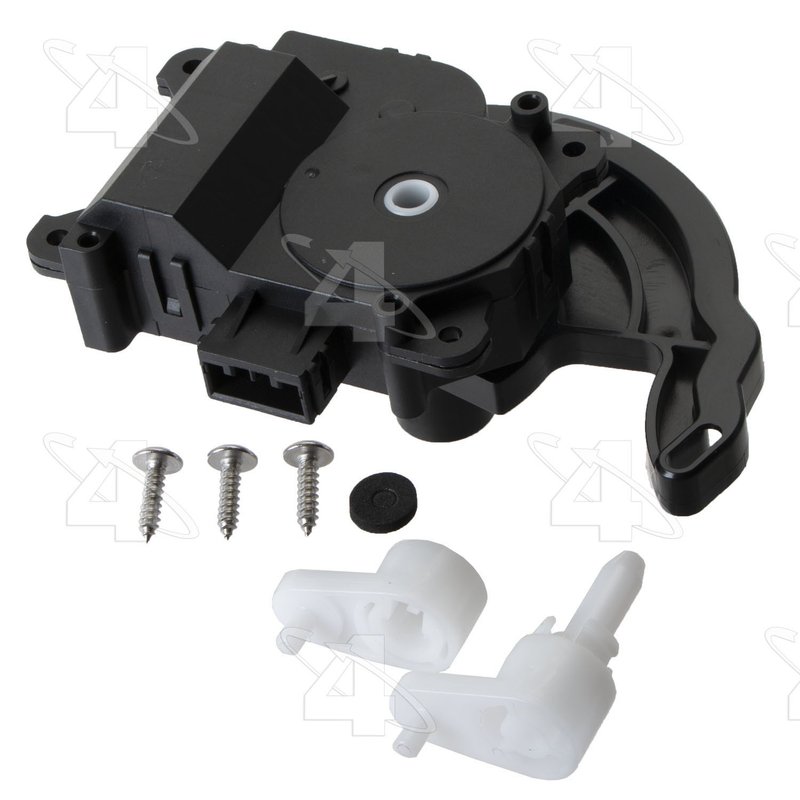

Four Seasons 73109 HVAC Mode Door Actuator

Reliable HVAC Mode Door Actuator for Ford Edge and Lincoln MKX

The Four Seasons Air Door Actuator 73109 is designed to restore proper airflow control in your vehicle's HVAC system. Specifically engineered for Ford Edge and Lincoln MKX models, this actuator ensures precise operation of the HVAC mode door for consistent cabin comfort.

• Brand: Four Seasons
• Brand Line: Air Door Actuator
• Part Number: 73109
• Door Linkage Type: Arm
• Mounting Ear Quantity: 4
• Terminal Pin Quantity: 7
• Style: HVAC air door actuator

Product Line Overview: Four Seasons Air Door Actuator

The Four Seasons Air Door Actuator product line focuses on delivering reliable HVAC components that control airflow direction within vehicle climate systems. This line includes actuators designed to operate HVAC mode doors, blend doors, and recirculation doors, providing precise movement and durability. The 73109 actuator is part of this line, engineered to meet the specific requirements of Ford Edge and Lincoln MKX HVAC systems.

Detailed Description of the HVAC Mode Door Actuator 73109

This HVAC mode door actuator features an arm-type door linkage and is secured with four mounting ears for stable installation. It includes seven terminal pins to ensure proper electrical connectivity and communication with the vehicle’s climate control module. The actuator’s design allows it to accurately position the HVAC mode door, directing airflow to the desired vents inside the cabin. Its style and construction are tailored to fit the HVAC systems of Ford Edge and Lincoln MKX models, ensuring compatibility and reliable performance.

Common HVAC Issues Addressed by This Actuator

• Inconsistent airflow direction or inability to switch between vent modes
• Unresponsive or stuck HVAC mode door
• Unusual noises coming from the HVAC system during mode changes
• Failure to properly regulate cabin temperature due to airflow misdirection
• Electrical connection problems causing intermittent HVAC operation

Installation Notes and Tips

• Ensure vehicle compatibility with Ford Edge and Lincoln MKX models before installation
• Disconnect the battery to prevent electrical shorts during replacement
• Carefully remove the old actuator, noting the position of the door linkage arm
• Align the new actuator’s arm linkage and secure it using the four mounting ears
• Verify the seven terminal pins are properly connected to the vehicle’s wiring harness
• Test HVAC mode door operation before reassembling panels

Quality Assurance and Warranty Information

Four Seasons manufactures the Air Door Actuator 73109 to meet OEM specifications for fit and function. The part undergoes quality control testing to ensure durability and reliable operation within the HVAC system. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
