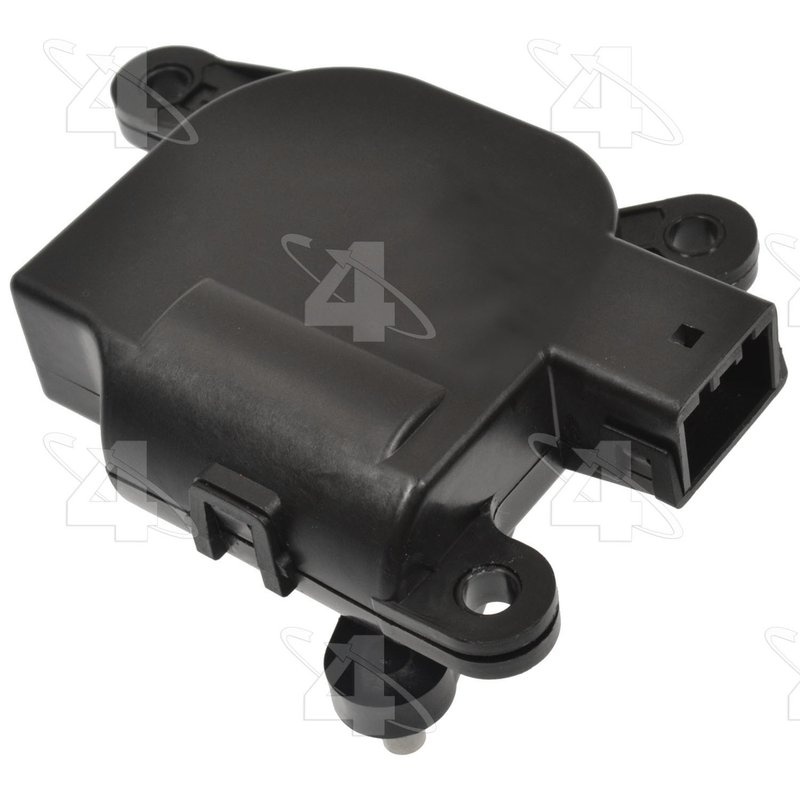

Four Seasons 73116 HVAC Recirculation Door Actuator

Four Seasons 73116 Air Door Actuator

Four Seasons 73116 is an HVAC recirculation door actuator built for precise air door movement in the climate control system. It uses a 5-terminal pin layout, a 3-ear mounting design, and an arm-style door linkage for direct replacement service on select Hyundai Accent applications.

Compatible With 2006-2011 Hyundai Accent HVAC recirculation door actuator applications, this Four Seasons Air Door Actuator supports proper cabin air routing when the recirculation door needs accurate positioning. The Four Seasons Air Door Actuator line is focused on replacement HVAC control components for vehicles that rely on electronic door movement inside the heater and A/C housing.

Key Features

• Part number 73116 for HVAC recirculation door actuator service
• Arm-style door linkage for the air door mechanism
• 3 mounting ears for secure installation alignment
• 5-terminal pin configuration
• Direct-fit replacement for select Hyundai Accent model years

Detailed Description

This actuator is used in the HVAC case to move the recirculation door based on control input from the climate system. On Hyundai Accent models, a worn or failed actuator can prevent the door from changing position correctly, which affects airflow routing through the cabin. Four Seasons 73116 is specified for 2006-2011 Hyundai Accent applications listed below, including 2007 Accent to 5/9/07, 2008 Accent from 7/08, 2009-2010 Accent, and 2011 Accent old body style to 2/11.

This part cross-references Dayco 73116 and Global Parts Distributors LLC 1711915 for the same application.

What It Helps Address

• Recirculation door not changing position
• Improper cabin airflow routing
• HVAC mode response issues tied to the air door actuator
• Clicking or inconsistent actuator movement inside the dash HVAC case
• Loss of recirculation function in select Hyundai Accent vehicles

Installation Notes and Tips

Verify the connector style, 5-terminal pin layout, and 3-ear mounting pattern before installation. Confirm the vehicle build date and body style against the listed fitment, especially for 2007, 2008, and 2011 Hyundai Accent applications with date-specific notes. Access is typically through the HVAC housing, so compare the original actuator arm position and linkage orientation before removal.

Quality Assurance

Four Seasons supplies HVAC replacement components for service applications, and this actuator is cataloged for direct replacement use on the listed Hyundai Accent vehicles. Confirm fitment by year, body style, and build date before ordering.
