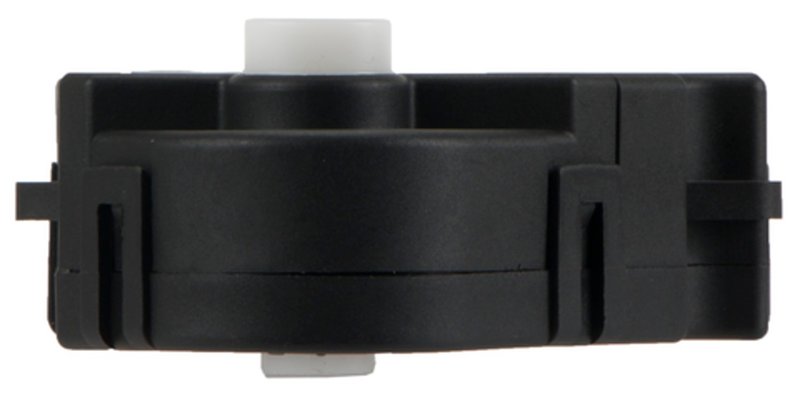

Four Seasons 73236 HVAC Blend Door Actuator

Reliable HVAC Blend Door Actuator for Precise Climate Control

The Four Seasons 73236 HVAC Blend Door Actuator is engineered to provide accurate control of your vehicle's air distribution system. Designed with a female door linkage and three mounting ears, this actuator ensures a secure fit and smooth operation in HVAC systems requiring a 4-terminal pin connection.

• Female door linkage for secure connection
• Three mounting ears for stable installation
• HVAC air door actuator style for blend door control
• Four terminal pins for reliable electrical connectivity
• Part number 73236 for easy identification and replacement

Detailed Product Description

This HVAC blend door actuator from Four Seasons is built to regulate the flow of air within the heating and cooling system of various vehicles. The actuator’s female door linkage design allows it to interface precisely with the blend door mechanism, while the three mounting ears provide a firm attachment point to prevent movement or vibration during operation. The four terminal pins ensure consistent electrical signals for accurate positioning of the blend door, which is critical for maintaining the desired cabin temperature. The style of this actuator is specifically tailored for HVAC air door applications, making it suitable for vehicles that require this configuration.

Common Applications and Issues Addressed

• Resolves inconsistent cabin temperature due to faulty blend door movement
• Eliminates clicking or knocking noises from the HVAC system
• Restores proper airflow direction between heat and air conditioning modes
• Fixes blend door stuck in one position causing limited climate control
• Addresses electrical connection failures with the four terminal pin setup

Installation Notes and Tips

When installing the Four Seasons 73236 blend door actuator, ensure the female door linkage aligns correctly with the blend door shaft. Secure the actuator using the three mounting ears to prevent any loosening over time. Verify the four terminal pins are properly connected to the vehicle’s wiring harness to maintain reliable electrical communication. It is recommended to consult the vehicle’s service manual for specific HVAC system access and actuator replacement procedures.

Quality Assurance and Warranty

Four Seasons is a recognized brand in automotive HVAC components, known for manufacturing parts that meet or exceed OEM specifications. The 73236 blend door actuator undergoes rigorous quality control to ensure durability and consistent performance. While specific warranty details are not provided here, Four Seasons typically offers coverage against defects in materials and workmanship. Refer to the product packaging or manufacturer’s website for exact warranty terms.
