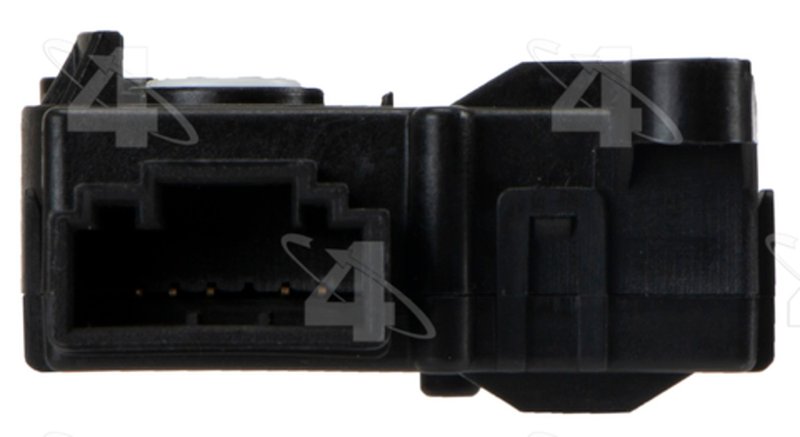

Four Seasons 73269 HVAC Mode Door Actuator

Reliable HVAC Mode Door Actuator for Fiat and Volkswagen

The Four Seasons Air Door Actuator 73269 is designed to restore proper airflow control in your vehicle's HVAC system. Compatible with select Fiat and Volkswagen models, this actuator ensures precise operation of the HVAC mode door for consistent cabin comfort.

• Female door linkage for secure connection
• Three mounting ears for stable installation
• HVAC air door actuator style for mode control
• Five terminal pins for reliable electrical connectivity
• Compatible with Fiat 500 and Volkswagen Passat, Passat CC, and CC models

Product Details and Specifications

This HVAC mode door actuator from Four Seasons features a female door linkage that interfaces directly with the vehicle’s HVAC system door linkage. The actuator includes three mounting ears, providing a firm and precise fit to the HVAC housing. Its five terminal pins ensure a stable electrical connection, supporting accurate control signals for the air door movement. The style is specifically designed as an HVAC air door actuator, making it suitable for controlling airflow direction within the climate control system.

The Four Seasons Air Door Actuator product line focuses on delivering dependable HVAC components that meet OEM specifications. This actuator model 73269 is part of that line, engineered to maintain proper airflow distribution in the vehicle’s heating and cooling system, which is critical for passenger comfort and system efficiency.

Compatible Vehicles and Common Applications

This actuator is compatible with the following vehicles:

• Fiat 500
• Volkswagen Passat
• Volkswagen Passat CC
• Volkswagen CC

It is commonly used to address issues such as:

• HVAC mode door stuck or not moving
• Inconsistent airflow direction inside the cabin
• Unresponsive climate control settings
• Unusual noises from the HVAC system
• Failure to switch between heating and cooling modes

Installation Notes and Tips

When installing the Four Seasons Air Door Actuator 73269, ensure the three mounting ears align correctly with the HVAC housing for a secure fit. Verify the female door linkage is properly connected to the HVAC door linkage to avoid operational issues. Carefully connect all five terminal pins to the vehicle’s wiring harness, confirming a solid electrical connection. It is recommended to test the actuator’s movement before reassembling the dashboard components.

Quality Assurance and Warranty

Four Seasons manufactures this HVAC mode door actuator to meet or exceed OEM standards, ensuring reliable performance and durability. The part number 73269 undergoes quality checks to maintain consistent functionality. Please refer to Four Seasons’ warranty policy for specific coverage details related to this actuator.
