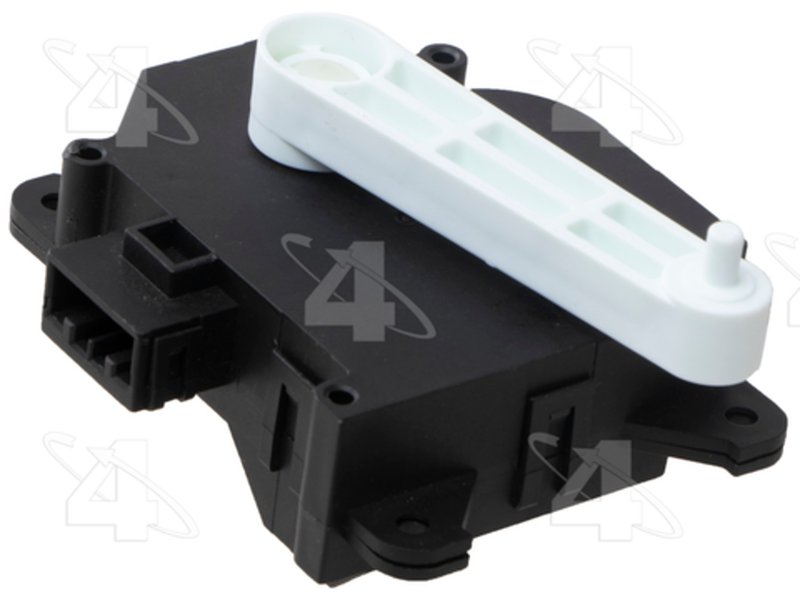

Four Seasons 73514 HVAC Mode Door Actuator - Auxiliary

Overview of Four Seasons Air Door Actuator 73514

The Four Seasons Air Door Actuator 73514 is designed specifically for Honda Odyssey models, providing reliable HVAC mode door control. This actuator ensures precise air flow direction within the vehicle's climate control system.

• Compatible with Honda Odyssey HVAC systems
• HVAC mode door actuator style for accurate air door movement
• Equipped with 7 terminal pins for secure electrical connections
• Features 4 mounting ears for stable installation
• Includes an arm-type door linkage for effective operation

Detailed Product Description

This HVAC mode door actuator from Four Seasons is engineered to regulate the air door movement within the heating, ventilation, and air conditioning system of Honda Odyssey vehicles. The part number 73514 corresponds to a unit that uses an arm-style door linkage, which provides smooth and consistent control of the air distribution doors. With 7 terminal pins, this actuator ensures a reliable electrical interface, while the 4 mounting ears allow for secure attachment to the HVAC housing. The actuator style is specifically designed to match the original equipment specifications for proper fit and function.

About the Four Seasons Air Door Actuator Product Line

The Four Seasons Air Door Actuator product line focuses on delivering precise control components for vehicle HVAC systems. These actuators are built to meet OEM standards, ensuring compatibility and durability. The Air Door Actuator line includes various models tailored to specific vehicle makes and models, such as this 73514 unit for the Honda Odyssey, to maintain optimal climate control performance.

Common Applications and Issues Resolved

• Restores proper air flow direction in Honda Odyssey HVAC systems
• Eliminates inconsistent or stuck air door movement
• Resolves HVAC mode switching failures
• Prevents unwanted noises from faulty door actuators
• Improves overall climate control responsiveness

Installation Notes and Tips

When installing the Four Seasons Air Door Actuator 73514, ensure the 4 mounting ears align correctly with the HVAC housing mounting points. Verify that the 7 terminal pins are securely connected to the vehicle’s wiring harness to avoid electrical issues. Handle the arm-type door linkage carefully to prevent damage during installation. It is recommended to test the actuator operation before reassembling the dashboard components.

Quality Assurance and Warranty

Four Seasons manufactures the Air Door Actuator 73514 to meet strict quality standards, ensuring reliable performance in Honda Odyssey vehicles. While specific warranty details may vary, Four Seasons typically offers coverage against defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
