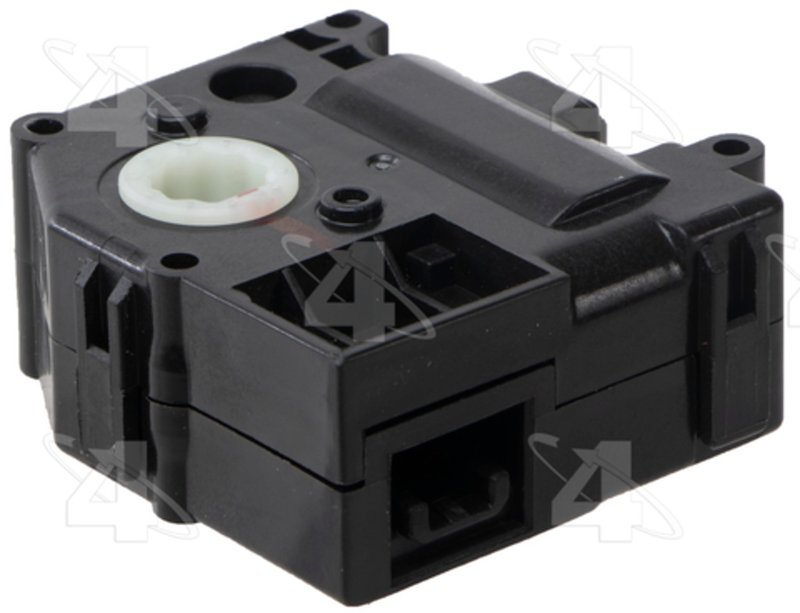

Four Seasons 73516 HVAC Mode Door Actuator

Four Seasons 73516 Air Door Actuator

Four Seasons 73516 is an HVAC mode door actuator built for precise control of cabin airflow routing. With a female door linkage, 5 terminal pins, and an HVAC air door actuator style, it is used to restore proper movement of the mode or recirculation door in supported Lexus, Toyota, and Scion applications.

The Four Seasons Air Door Actuator line focuses on direct-fit HVAC replacement parts for vehicles that need accurate blend, mode, or recirculation door operation. This part number, 73516, is listed for multiple Lexus and Toyota platforms, including Lexus LX570 and Toyota Land Cruiser applications.

Key Features

• Four Seasons Air Door Actuator replacement for HVAC mode door control
• Female door linkage for the listed applications
• 5-terminal-pin electrical connection
• Direct-fit coverage for select Lexus, Toyota, and Scion vehicles
• Cross-reference part numbers include 8710660270 and A60516

Detailed Description

Four Seasons 73516 is an HVAC mode door actuator used to control air distribution inside the vehicle cabin. In supported Lexus LX570 and Toyota Land Cruiser models, it is listed for main or recirculation-related HVAC door operation, while other applications include specific left, right, panel, and No. 2 positions. If your Lexus IS350, Lexus RC350, or Toyota Prius V has inconsistent airflow direction, this actuator is the type of replacement part used to restore proper door movement.

This part cross-references 8710660270 and A60516 for the same application. The Four Seasons 73516 part number is also referenced across multiple fitments, making it a useful match when verifying an OE-style HVAC actuator replacement by vehicle, position, and connector style.

Fitment

• Fits 2022 Lexus IS300, N/A, No. 2
• Fits 2022 Lexus IS350, N/A, No. 2
• Fits 2022 Lexus RC F, N/A, No. 2
• Fits 2022 Lexus RC300, N/A, No. 2
• Fits 2022 Lexus RC350, N/A, No. 2
• Fits 2018-2021 Lexus LX570, Main
• Fits 2018-2021 Toyota Land Cruiser, Main
• Fits 2017 Lexus CT200h, N/A
• Fits 2017 Lexus LX570, N/A, Panel
• Fits 2017 Toyota Land Cruiser, N/A, HVAC Mode Door Actuator controls recirculation door functionality
• Fits 2016 Scion iM, Right
• Fits 2016 Toyota Land Cruiser, N/A, From 8/2015; Main
• Fits 2016 Toyota Prius V, Left
• Fits 2015 Lexus IS250, N/A
• Fits 2015 Lexus IS350, N/A
• Fits 2015 Lexus RC F, N/A
• Fits 2015 Lexus RC350, N/A
• Fits 2015 Toyota Prius V, Left, From 11/11/14
• Fits 2014 Lexus IS250, N/A, From 6/2014
• Fits 2014 Lexus IS350, N/A, From 6/2014
• Fits 2014-2015 Lexus GS450h, N/A, No. 2
• Fits 2014-2015 Lexus LX570, N/A, HVAC Mode Door Actuator controls recirculation door functionality
• Fits 2014-2015 Toyota Land Cruiser, N/A, HVAC Mode Door Actuator controls recirculation door functionality
• Fits 2013 Lexus LX570, N/A, From 1/2013; Main
• Fits 2013 Toyota Land Cruiser, N/A, From 1/2013; Main

Common Replacement Uses

• Restores HVAC mode door movement when airflow stays stuck on one vent setting
• Addresses recirculation door operation concerns in listed Land Cruiser and LX570 applications
• Helps correct temperature or airflow routing issues caused by a failed actuator
• Replaces a worn or non-responsive HVAC air door actuator
• Supports proper cabin comfort control in Lexus, Toyota, and Scion HVAC systems

Installation Notes and Tips

Verify the vehicle year, make, model, and actuator position before ordering. Match the female linkage, 5-pin connector, and listed application notes such as Main, Left, Right, Panel, or No. 2 to the original part. On Lexus LX570 and Toyota Land Cruiser applications, confirm whether the replacement is for the mode door or recirculation door function.

After installation, cycle the HVAC controls to confirm the door moves through all commanded positions and that airflow changes correctly. If the system has stored HVAC-related faults, clear codes and recheck operation after the actuator is installed.

Quality Assurance

Four Seasons HVAC replacement parts are cataloged for direct application matching across supported vehicles. Part number 73516 is listed against multiple OE-style interchange references and vehicle-specific fitments for accurate selection.
