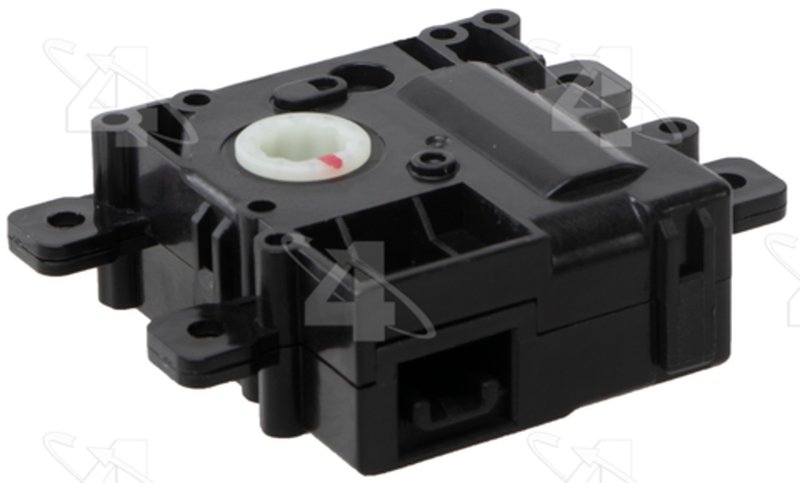

Four Seasons 73517 HVAC Recirculation Door Actuator

Four Seasons 73517 Air Door Actuator Overview

Four Seasons 73517 is an HVAC recirculation door actuator built for vehicles that use a 5-terminal, female-door-linkage design with a 4-ear mounting pattern. It helps control the air door position inside the climate system, supporting proper cabin airflow management in select Lexus and Toyota applications.

The Four Seasons Air Door Actuator line focuses on direct-fit HVAC control components for recirculation and blend-door operation. This 73517 actuator is a practical replacement when the original unit no longer moves the door correctly or responds consistently to HVAC commands.

Key Features

• HVAC recirculation door actuator for climate control air-door operation
• Female door linkage design
• 4 mounting ears for secure installation
• 5 terminal pins for the vehicle electrical connection
• Direct replacement part number: 73517
• Cross-reference part numbers include 8710652150 and A60517

Vehicle Fitment

• Fits 2019-2024 Lexus UX250h, No. 1
• Fits 2019-2022 Lexus UX200, No. 1
• Fits 2020-2022 Toyota Corolla, No. 3
• Fits 2022 Toyota Prius, No. 3
• Fits 2022 Toyota Prius AWD-e, No. 3
• Fits 2017-2022 Toyota Prius Prime, No. 3
• Fits 2017-2019 Toyota Prius C, No. 1
• Fits 2016-2017 Toyota Prius
• Fits 2013-2016 Toyota Prius C, Air Door Actuator
• Fits 2012 Toyota Prius C, From 12/2011; Air Door Actuator

What This Part Helps Resolve

• Recirculation door stuck in one position
• Incorrect cabin airflow routing
• HVAC mode changes that do not respond as expected
• Unusual clicking or actuator movement inside the dash
• Loss of proper air distribution in Lexus UX250h, Lexus UX200, and Toyota Prius-family HVAC systems

Installation Notes and Tips

Verify the connector style, terminal count, linkage type, and mounting-ear layout before installation. On vehicles such as the Toyota Corolla, Prius, Prius Prime, Prius C, and Lexus UX models, confirm the actuator location and the door designation in the HVAC case so the replacement matches the original unit.

After installation, cycle the ignition and HVAC controls to allow the system to relearn door positions if required by the vehicle. If the original actuator failed due to a binding door, inspect the HVAC door movement before installing the replacement.

Quality Assurance

Four Seasons supplies HVAC replacement components for air-door control applications, and this actuator is built to match the specified electrical and mounting configuration for the listed vehicles. Use the confirmed fitment data above to verify application before purchase.
