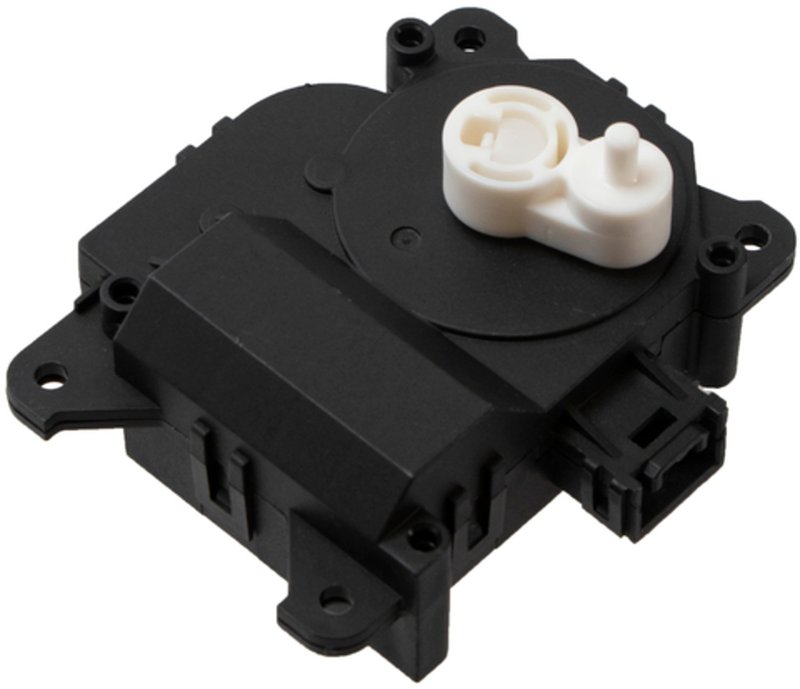

Four Seasons 73549 HVAC Recirculation Door Actuator

Overview of Four Seasons HVAC Recirculation Door Actuator 73549

The Four Seasons HVAC Recirculation Door Actuator 73549 is designed specifically for Lexus Land Cruiser and Toyota LX470 models. This actuator controls the HVAC air door movement, ensuring proper airflow and climate control within the vehicle cabin.

• Door linkage type: Arm for precise door movement
• Mounting ear quantity: 4 for secure installation
• Style: HVAC air door actuator tailored for recirculation control
• Terminal pin quantity: 5 for reliable electrical connections

Detailed Product Description

This HVAC recirculation door actuator from Four Seasons features an arm-type door linkage that provides accurate and consistent operation of the air door within the HVAC system. The actuator includes four mounting ears, which help ensure a stable and secure fit in the HVAC assembly. With five terminal pins, it offers dependable electrical connectivity to the vehicle’s climate control system. The style is specifically designed as an HVAC air door actuator, making it compatible with the recirculation door function in Lexus Land Cruiser and Toyota LX470 models. The part number 73549 identifies this exact actuator, ensuring proper fitment and function.

Common Applications and Issues Addressed

• Restores proper HVAC air recirculation door movement
• Eliminates issues with inconsistent cabin airflow
• Resolves HVAC system errors related to door actuator failure
• Prevents unwanted outside air infiltration when recirculation mode is active
• Improves overall climate control responsiveness in Lexus Land Cruiser and Toyota LX470

Installation Notes and Tips

When installing the Four Seasons HVAC Recirculation Door Actuator 73549, ensure the four mounting ears align correctly with the HVAC housing. Verify that the five terminal pins are properly connected to the vehicle’s wiring harness to avoid electrical faults. It is recommended to test the actuator operation before reassembling the dashboard components to confirm proper door movement and function.

Quality Assurance and Warranty

Four Seasons manufactures this HVAC recirculation door actuator to meet OEM specifications for Lexus and Toyota vehicles. The part number 73549 undergoes quality checks to ensure durability and reliable performance. Please refer to Four Seasons’ warranty policy for coverage details on this HVAC component.
