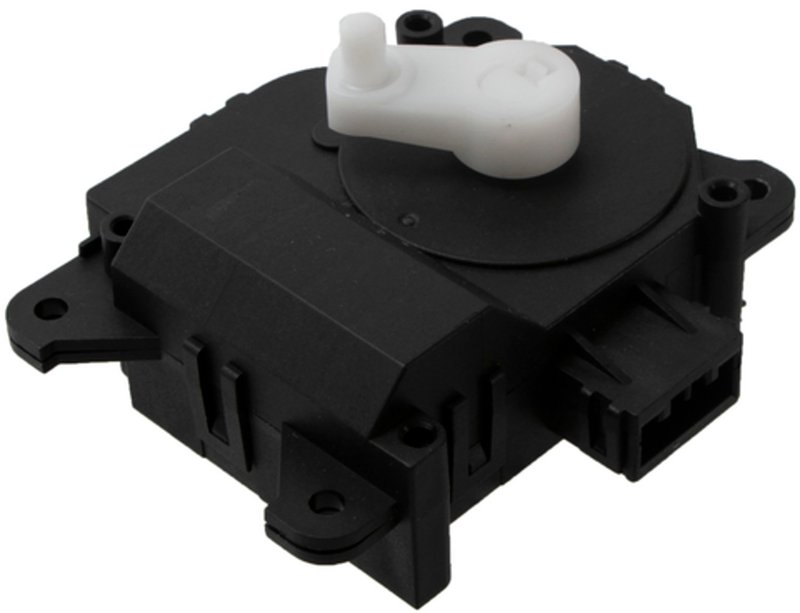

Four Seasons 73561 HVAC Recirculation Door Actuator

Overview of Four Seasons HVAC Recirculation Door Actuator 73561

The Four Seasons HVAC Recirculation Door Actuator 73561 is designed to restore proper airflow control in Honda Civic, CR-V, and Element models. This actuator features a durable arm-type door linkage and a reliable 7-terminal pin configuration to ensure precise HVAC system operation.

• Arm-style door linkage for accurate air door movement
• Four mounting ears for secure installation
• Seven terminal pins for stable electrical connections
• Compatible with Honda Civic, CR-V, and Element HVAC systems
• Part number 73561 for easy identification and replacement

Detailed Product Description

This HVAC recirculation door actuator from Four Seasons is engineered to control the air door within the heating, ventilation, and air conditioning system of select Honda vehicles. The arm-style door linkage provides a direct mechanical connection to the air door, allowing for smooth and consistent operation. With four mounting ears, the actuator mounts firmly in place, reducing the risk of vibration or misalignment. The seven terminal pins ensure a reliable electrical interface, supporting accurate signal transmission for proper actuator function. This part is specifically designed for Honda Civic, CR-V, and Element models, making it a precise replacement option for maintaining HVAC performance.

Common HVAC Issues Addressed by This Actuator

• Inconsistent air recirculation or fresh air intake switching
• HVAC system stuck in one mode due to faulty door movement
• Unusual noises from the air door area during HVAC operation
• Reduced cabin air quality or temperature control problems
• Electrical connection failures causing actuator malfunction

Installation Notes and Tips

When installing the Four Seasons HVAC Recirculation Door Actuator 73561, ensure the four mounting ears align correctly with the vehicle’s HVAC housing. Verify that the arm linkage is properly connected to the air door to avoid binding or incomplete movement. Carefully connect all seven terminal pins to the corresponding wiring harness to maintain electrical integrity. It is recommended to test the actuator operation before reassembling the dashboard components to confirm proper function.

Quality Assurance and Warranty

Four Seasons manufactures this HVAC recirculation door actuator to meet or exceed OEM specifications for fit and function. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product packaging or Four Seasons documentation for exact warranty terms.
