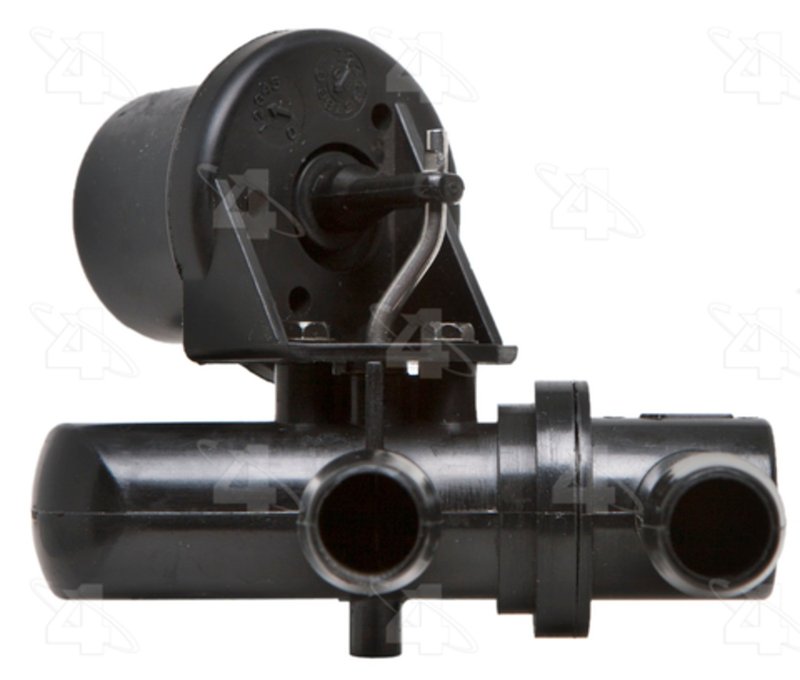

Four Seasons 74809 HVAC Heater Control Valve - Front

Vacuum Heater Valve for Ford and Mazda

Four Seasons 74809 is an OE replacement HVAC heater control valve built for vacuum-operated, bypass-style heater circuits. It uses a plastic body with four hose connectors and 0.625 in. (15.875 mm) openings to match the original routing on select Ford, Mazda, Mercury, and Lincoln applications.

For vehicles such as the Ford Ranger, Ford Explorer, and Mazda B-series trucks, this heater valve helps restore proper coolant flow control through the heater core. The Four Seasons Heater Valve line is focused on direct-fit temperature control components for factory-style HVAC service.

Key Features

• Four Seasons part number 74809
• Vacuum-operated heater control valve
• Bypass style with vacuum-closing operation
• Four hose connectors for 4-port applications
• Plastic construction
• OE replacement design
• 0.625 in. / 15.875 mm hose openings

Detailed Description

This HVAC heater control valve is used to regulate coolant flow through the heater circuit based on vacuum signal from the vehicle’s control system. The bypass design and four-port layout are important for select Ford Ranger, Ford Explorer, Explorer Sport Trac, Mercury Mountaineer, Mazda B2300/B3000/B4000, and Lincoln Aviator applications that use a 4-port heater valve. This part cross-references Hayden 5954 and Global Parts Distributors LLC 8211250 for the same application. Four Seasons 74809 is a direct-fit service part for restoring heater performance on the listed vehicles.

What It Helps Fix

• No heat from the HVAC system due to a stuck heater valve
• Coolant flow that does not switch properly between heater and bypass circuits
• Vacuum-controlled heater valve operation problems
• Incorrect heater core coolant routing on 4-port systems
• Temperature control issues in Ford Ranger and Ford Explorer HVAC systems

Installation Notes and Tips

Verify the vehicle uses a vacuum-operated, bypass-style 4-port heater valve before ordering. Match the hose connector count and opening size to the original part, and confirm the application against the vehicle’s HVAC layout. Fits 1991-1993 Ford Explorer, N/A; Fits 1994-1996 Ford Explorer, N/A; Fits 1997-2000 Ford Explorer, N/A; Fits 2002-2010 Ford Explorer, N/A; Fits 2002-2003 Ford Explorer Sport, N/A; Fits 2002-2005 Ford Explorer Sport Trac, N/A; Fits 2007-2010 Ford Explorer Sport Trac, N/A; Fits 1994-1997 Ford Aerostar, Front; Fits 1995-1996 Ford Ranger, N/A; Fits 1996 Ford F-100 Ranger, N/A; Fits 1997-2001 Ford F-100 Ranger, N/A; Fits 1997-2004 Ford Ranger, N/A; Fits 2005-2010 Ford Ranger, N/A; Fits 2011 Ford Ranger, N/A; Fits 1998-2010 Mercury Mountaineer, N/A; Fits 1995-1996 Mazda B2300, N/A; Fits 1997-2004 Mazda B2300, N/A; Fits 1995-1996 Mazda B3000, N/A; Fits 1997-2004 Mazda B3000, N/A; Fits 2005-2007 Mazda B3000, N/A; Fits 1995-1996 Mazda B4000, N/A; Fits 1997-2004 Mazda B4000, N/A; Fits 2005-2009 Mazda B4000, N/A; Fits 1998-2001 Mazda B2500, N/A; Fits 2003-2005 Lincoln Aviator, N/A.

Quality Assurance

Four Seasons 74809 is an OE replacement heater valve built for direct service use in factory-style HVAC systems. Its vacuum operation, bypass design, and application-specific connector layout support accurate replacement on confirmed Ford, Mazda, Mercury, and Lincoln fitments.
