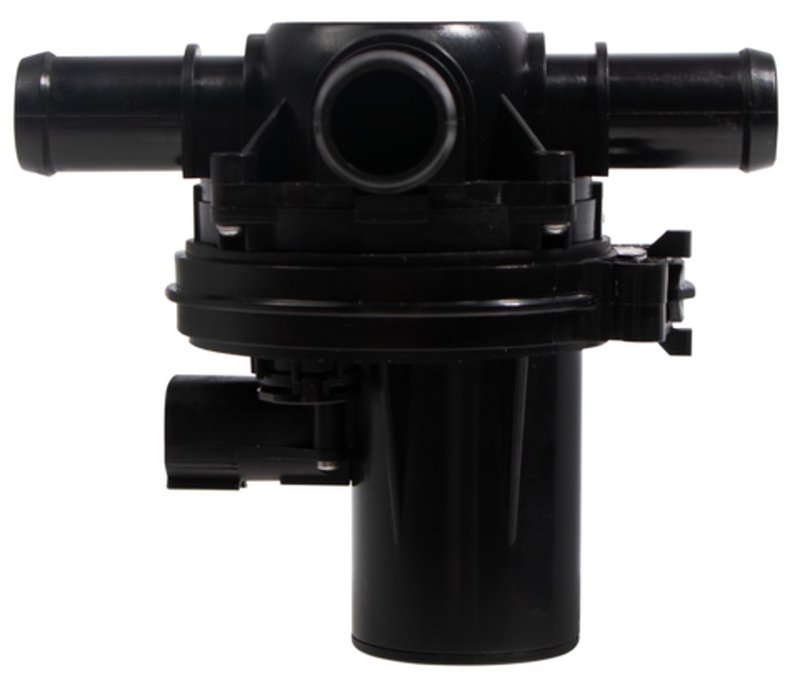

Four Seasons 74946 HVAC Heater Control Valve

Overview of Four Seasons Heater Valve 74946

The Four Seasons Heater Valve 74946 is a motor actuated rotary electronic heater valve designed for precise temperature control. Specifically engineered for Ram 1500 and 1500 Classic models, this heater valve features a bypass style with three connectors to ensure reliable HVAC system performance.

• Brand: Four Seasons
• Brand Line: Heater Valve
• Part Number: 74946
• Type: Motor actuated rotary electronic heater valve
• Material: Durable plastic construction
• Bypass style with three connectors
• Terminal Pin Quantity: 6
• Opening dimensions: 0.78 inches (B, C, and main openings)

Four Seasons Heater Valve Product Line Details

The Four Seasons Heater Valve product line focuses on HVAC heater control valves designed to regulate coolant flow within vehicle heating systems. The Heater Valve line includes motor actuated valves like the 74946, which provide precise control over cabin temperature by modulating heater core flow. This bypass style valve is engineered to fit specific vehicle applications, including Ram 1500 and 1500 Classic models, ensuring compatibility and efficient operation.

Product Features and Specifications

The Four Seasons 74946 heater valve is constructed from durable plastic and features a motor actuated rotary design for smooth operation. It includes three connectors and six terminal pins to facilitate electrical control and integration with the vehicle’s HVAC system. The valve openings measure 0.78 inches, allowing for consistent coolant flow regulation. The bypass style design helps maintain proper coolant circulation, improving heater performance and system longevity.

Common Applications and Problem Resolution

• Restores proper heater core coolant flow in Ram 1500 and 1500 Classic vehicles
• Resolves inconsistent cabin heating or temperature fluctuations
• Eliminates heater valve sticking or failure issues
• Improves HVAC system responsiveness and temperature control
• Addresses electrical control valve malfunctions in HVAC systems

Installation Notes and Tips

When installing the Four Seasons Heater Valve 74946, ensure the vehicle is compatible with Ram 1500 or 1500 Classic models. Verify the electrical connectors and terminal pins align correctly with the vehicle’s wiring harness. Properly secure the valve to prevent coolant leaks and confirm the bypass function operates as intended. Consult the vehicle’s service manual for detailed installation procedures and safety precautions.

Quality Assurance and Warranty

Four Seasons manufactures the Heater Valve 74946 to meet OEM standards for fit, form, and function. The plastic construction and motor actuated design undergo quality control to ensure durability and reliable operation within the HVAC system. Warranty information is available through Four Seasons and should be reviewed prior to installation to confirm coverage details.
