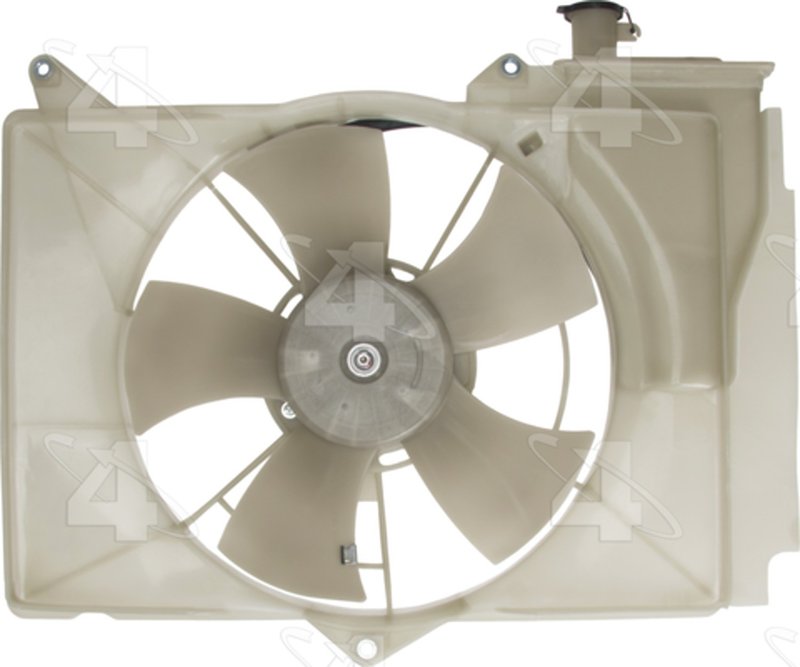

Four Seasons 75477 Dual Radiator and Condenser Fan Assembly

Overview of Four Seasons Rad / Cond Fan Assy. 75477

The Four Seasons Rad / Cond Fan Assy. 75477 is a dual radiator and condenser fan assembly designed for select Toyota and Scion models. Engineered with a combination of plastic and metal materials, this 12-volt electrical fan assembly ensures efficient cooling performance for your vehicle's engine and air conditioning system.

• Dual radiator and condenser fan assembly for integrated cooling
• Constructed with durable plastic and metal components
• Includes a plastic shroud for optimized airflow
• OE mount type for direct replacement installation
• Compatible with 12-volt electrical systems
• Single fan with 5 rigid plastic blades
• Female oval 2-terminal connector included
• Shroud and mounting hardware not included

Product Line Details: Rad / Cond Fan Assy.

The Rad / Cond Fan Assy. product line by Four Seasons focuses on combined radiator and condenser fan assemblies that provide integrated cooling solutions. This line is designed to replace original equipment (OE) parts directly, maintaining factory fit and function. The 75477 model exemplifies this approach by offering a dual fan assembly that supports both radiator and condenser cooling needs in one unit.

Detailed Product Description

This Four Seasons dual radiator and condenser fan assembly features a 12-volt electrical motor system with a single fan containing five rigid plastic blades. The fan is mounted within a white plastic shroud that helps direct airflow efficiently through the radiator and condenser. The assembly uses an OE mount style for straightforward installation on compatible vehicles. The fan clutch is not included within this assembly, allowing for compatibility with existing clutch systems. The connector is a female oval 2-terminal type, designed to interface with male terminals on the vehicle wiring harness.

Compatible Vehicles and Applications

• Designed specifically for Toyota Echo, xA, and xB models
• Also compatible with select Scion Echo, xA, and xB vehicles
• Ideal for replacing worn or damaged cooling fan assemblies
• Helps maintain proper engine temperature and air conditioning efficiency

Common Issues Addressed by This Fan Assembly

• Overheating due to faulty or inefficient radiator fan operation
• Reduced air conditioning performance from condenser cooling failure
• Excessive engine temperature fluctuations during idle or stop-and-go traffic
• Noise or vibration caused by damaged or unbalanced fan blades
• Electrical failures related to fan motor or connector issues

Installation Notes and Tips

Installation requires removal of the existing fan assembly and mounting this OE replacement unit using the original mounting points. Note that mounting hardware is not included and should be reused or sourced separately. Ensure electrical connectors are properly matched—this assembly uses a female oval 2-terminal connector compatible with male terminals on the vehicle. Verify that the fan clutch is present and functional, as it is not included with this assembly. Proper alignment of the shroud and fan blades is essential for optimal airflow and cooling performance.

Quality Assurance and Warranty

Four Seasons Rad / Cond Fan Assy. 75477 is manufactured to meet or exceed original equipment specifications for fit, form, and function. The assembly undergoes quality control testing to ensure reliable operation within the specified 12-volt electrical system. This product is an OE replacement part, designed to provide consistent cooling performance for Toyota and Scion Echo, xA, and xB models. Warranty coverage details should be confirmed with the product distributor or manufacturer.
