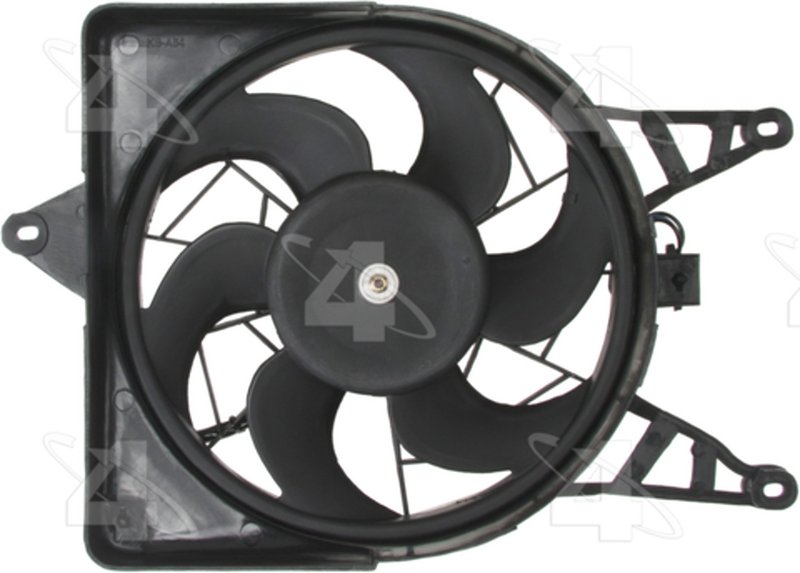

Four Seasons 75484 Engine Cooling Fan Assembly

Overview of Four Seasons Radiator Fan Assy. 75484

The Four Seasons Radiator Fan Assy. 75484 is designed specifically for Hyundai Elantra models, providing reliable engine cooling performance. This engine cooling fan assembly features a durable plastic and metal construction to ensure long-lasting operation under demanding conditions.

• Material: Combination of plastic and metal for durability
• Voltage: 12V electrical operation
• Includes a plastic shroud for optimized airflow
• Fan blade type: 6 rigid plastic blades
• OE mount type for direct replacement installation
• Connector: Female, 3-wire lead with square and round spade connectors
• Fan clutch not included within the assembly
• Mount location: Radiator fan position

Detailed Product Description

This Four Seasons Radiator Fan Assy. 75484 is an electrical engine cooling fan assembly engineered to maintain optimal engine temperature in Hyundai Elantra vehicles. The assembly includes a six-blade rigid plastic fan designed to move air efficiently through the radiator. The fan is mounted on a black plastic shroud that helps direct airflow and improve cooling performance. The assembly operates on a 12-volt electrical system and features OE mounting points for a straightforward replacement process. The fan clutch is not mounted within this assembly, allowing compatibility with existing clutch components.

The connectors are female with a 3-wire lead, including both square and round spade types, ensuring proper electrical connection. The combination of plastic and metal materials balances durability with weight considerations, making it suitable for the engine bay environment.

About the Radiator Fan Assy. Product Line

The Four Seasons Radiator Fan Assy. product line focuses on providing complete engine cooling fan assemblies that meet OE specifications. These assemblies are designed to replace worn or damaged radiator fans in various vehicle makes and models, including the Hyundai Elantra. By offering components such as the fan blade, shroud, and motor in one unit, this product line simplifies maintenance and repair tasks while ensuring consistent cooling system performance.

Common Applications and Issues Addressed

• Replacement of faulty or damaged radiator fan assemblies in Hyundai Elantra
• Resolving engine overheating caused by insufficient airflow
• Eliminating fan motor failure symptoms such as no fan operation
• Addressing electrical connector issues with the 3-wire lead system
• Improving cooling efficiency by restoring proper fan blade function

Installation Notes and Tips

This radiator fan assembly is designed for OE mount installation on the radiator fan location of Hyundai Elantra models. Mounting hardware is not included, so retain original fasteners or acquire appropriate replacements. Ensure electrical connectors match the female 3-wire lead configuration before installation. Verify that the fan clutch is compatible and properly mounted, as this assembly does not include the clutch. Careful alignment of the shroud and fan blades is recommended to avoid contact with other engine components.

Quality Assurance and Warranty

The Four Seasons Radiator Fan Assy. 75484 is manufactured to meet OE replacement standards, ensuring reliable performance and fitment. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
