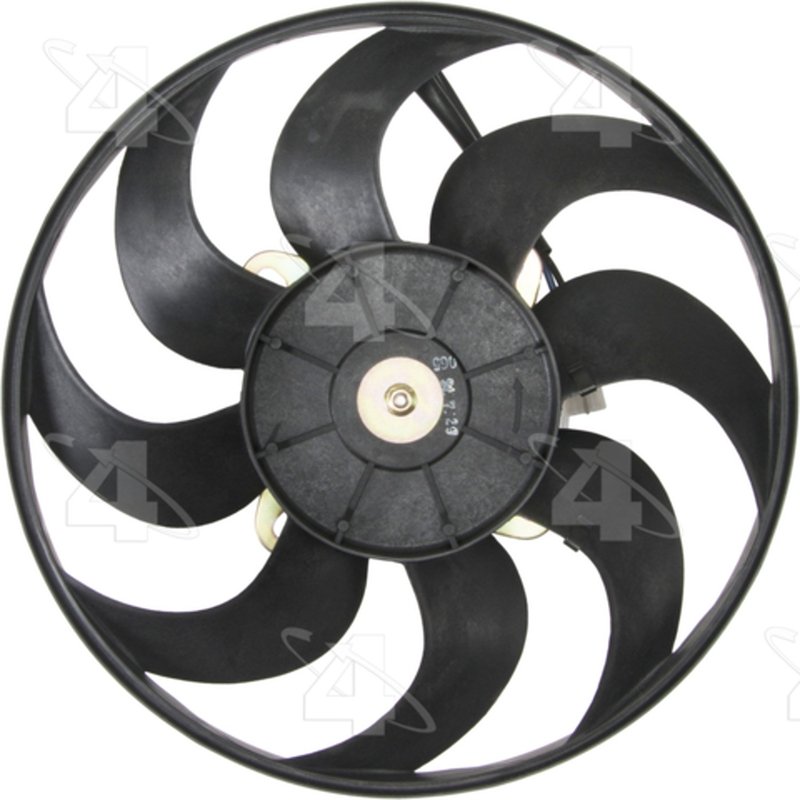

Four Seasons 75504 Engine Cooling Fan Assembly

Overview of Four Seasons Radiator Fan Assy. 75504

The Four Seasons Radiator Fan Assy. 75504 is designed to provide reliable engine cooling for select Volvo models. Engineered with durable plastic and metal materials, this electrical cooling fan assembly ensures efficient airflow to maintain optimal engine temperature.

• Compatible with Volvo 740, 745, and 760 models
• OE mount design for direct replacement
• Includes shroud for improved airflow management
• 12-volt electrical operation with 2-wire female connector
• Rigid plastic 8-blade fan for consistent cooling performance

Product Line Details: Radiator Fan Assy.

The Radiator Fan Assy. product line by Four Seasons focuses on complete engine cooling fan assemblies that integrate fan blades, shrouds, and electrical components. This line is designed to meet original equipment specifications, providing a direct fit and function replacement. The 75504 model exemplifies this approach by combining a robust plastic and metal construction with an OE mount configuration, ensuring compatibility and ease of installation for Volvo vehicles.

Technical Description and Features

This engine cooling fan assembly features a black finished housing and an 8-blade rigid plastic fan blade designed to optimize airflow through the radiator. The assembly operates on a 12-volt electrical system and includes a single T-shaped female connector with two terminals, facilitating straightforward electrical connections. The fan clutch is not mounted within the assembly, allowing compatibility with existing clutch components. The OE mount ensures proper alignment and secure installation on the radiator fan mount location.

Common Applications and Problem Resolution

• Replaces faulty or damaged radiator fan assemblies on Volvo 740, 745, and 760 models
• Addresses engine overheating caused by insufficient airflow
• Resolves electrical fan motor failures
• Eliminates excessive noise from worn or unbalanced fan blades
• Restores proper cooling system function after fan assembly damage

Installation Notes and Tips

Installation requires removal of the existing radiator fan assembly. Note that mounting hardware is not included, so retain original fasteners or acquire appropriate replacements. Ensure electrical connectors match the 2-wire female T-shaped connector on this assembly. Verify that the fan clutch is compatible and properly mounted separately, as this assembly does not include the fan clutch. Follow vehicle-specific service manual instructions for safe and correct installation.

Quality Assurance and Warranty

The Four Seasons Radiator Fan Assy. 75504 is manufactured to meet OE replacement standards, ensuring reliable performance and fitment. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or manufacturer resources for exact warranty terms.
