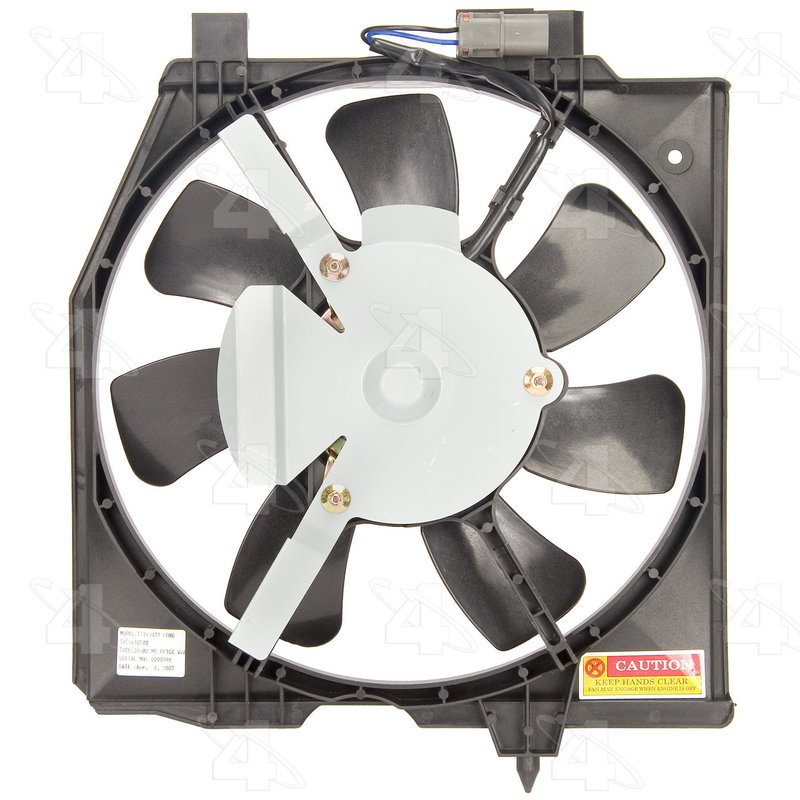

Four Seasons 75520 A/C Condenser Fan Assembly

Overview of Four Seasons Condenser Fan Assy. 75520

The Four Seasons Condenser Fan Assembly 75520 is designed specifically for Mazda Protege and Protege5 models. This electrical A/C condenser fan assembly ensures efficient cooling performance with durable plastic and metal construction.

• Material: Combination of plastic and metal for durability
• Voltage: 12V electrical operation
• Includes plastic shroud for optimized airflow
• OE mount type for direct replacement
• Fan blade count: 6 rigid plastic blades
• Connector: 2-wire lead with female connector
• Fan clutch not included within assembly
• Dimensions: 14 inches height, 16.5 inches length, 5.5 inches depth

Four Seasons Condenser Fan Assy. Product Line Details

The Four Seasons Condenser Fan Assy. product line focuses on providing reliable cooling fan assemblies that meet original equipment specifications. This line is engineered to deliver consistent airflow and cooling efficiency for automotive A/C condenser systems. The 75520 model maintains OE mounting standards and electrical compatibility, ensuring seamless integration with Mazda Protege and Protege5 vehicles.

Detailed Product Description

This A/C condenser fan assembly features a 12-volt electrical motor designed to maintain optimal condenser temperatures. The fan includes six rigid plastic blades housed within a black plastic shroud, which helps direct airflow efficiently across the condenser. The assembly mounts using OE mounting points, allowing for straightforward installation without modification. The connector is a 2-wire lead with a female rectangular connector, matching factory wiring harnesses. Note that the fan clutch is not included in this assembly, as it is designed to operate independently.

Common Applications and Issues Addressed

• Replaces faulty or damaged condenser fan assemblies on Mazda Protege and Protege5
• Resolves overheating issues related to insufficient condenser cooling
• Eliminates electrical fan motor failures causing A/C system inefficiency
• Restores proper airflow to maintain A/C condenser performance
• Addresses noise or vibration caused by worn fan blades or shroud damage

Installation Notes and Tips

• OE mount design allows for direct bolt-on installation without modification
• Mounting hardware is not included; reuse existing bolts or source separately
• Ensure electrical connectors match factory harness for proper connection
• Verify fan clutch is functioning separately as it is not included in this assembly
• Handle plastic blades and shroud carefully to avoid damage during installation

Quality Assurance and Warranty

The Four Seasons Condenser Fan Assembly 75520 is manufactured to meet original equipment standards for fit, form, and function. Constructed with durable plastic and metal materials, it is designed for long-term reliability in Mazda Protege and Protege5 vehicles. While specific warranty details are not provided, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship.
