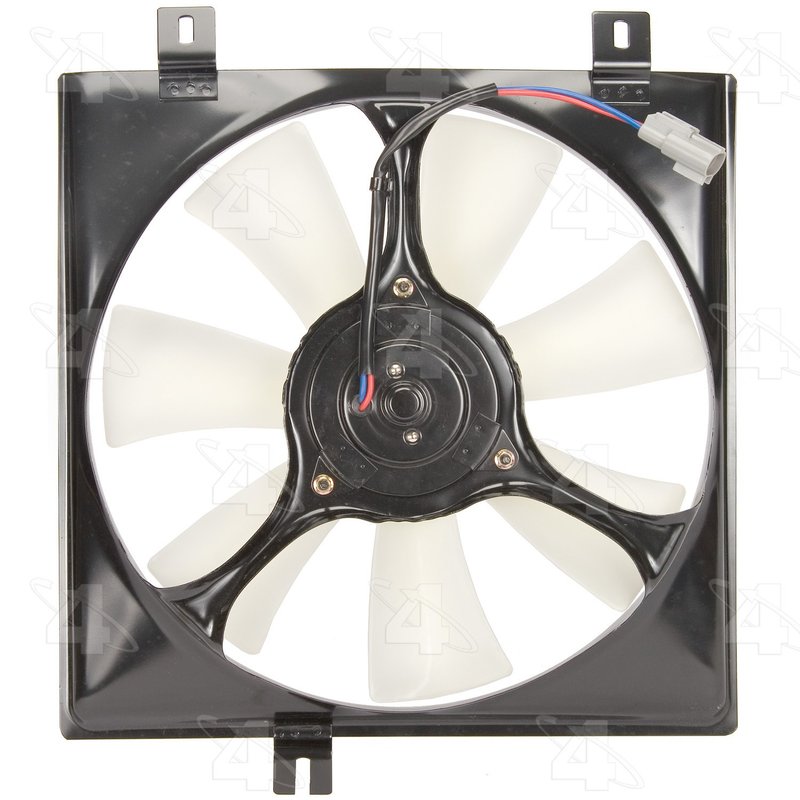

Four Seasons 75576 A/C Condenser Fan Assembly

Overview of Four Seasons Condenser Fan Assy. 75576

The Four Seasons Condenser Fan Assembly 75576 is designed specifically for Toyota RAV4 models, providing reliable cooling performance for your vehicle's air conditioning system. This OE replacement part ensures proper fit and function to maintain optimal condenser operation.

• Material: Durable plastic and metal construction
• Voltage: 12V electrical operation
• Includes metal shroud for enhanced airflow
• Rigid plastic fan blades with 6 blades for efficient cooling
• OE mount type for direct replacement installation
• Connector: 2-wire lead with female connector and male terminals
• Fan clutch not included within assembly
• Shroud included and made of metal for durability

Detailed Product Description

The Four Seasons Condenser Fan Assy. 75576 features a combination of plastic and metal materials to balance durability and weight. The assembly operates on a 12-volt electrical system and includes a rigid 6-blade plastic fan designed to provide consistent airflow across the condenser. The metal shroud is included to direct airflow efficiently, improving the cooling capacity of the condenser fan. This assembly is designed as an OE mount replacement, ensuring compatibility with Toyota RAV4 models. The connector system includes a single square-shaped female connector with two male terminals, facilitating straightforward electrical connections.

The fan clutch is not mounted within this assembly, which is typical for condenser fan assemblies, allowing compatibility with existing clutch systems. The overall height of the assembly is approximately 20.25 inches, making it suitable for the designated mounting location on the condenser fan.

About the Condenser Fan Assy. Product Line

The Four Seasons Condenser Fan Assy. product line focuses on providing reliable cooling fan assemblies designed to meet OE specifications. These assemblies are engineered to maintain proper airflow and cooling efficiency for vehicle condensers, helping to support the HVAC system's performance. The 75576 model is part of this line, offering a direct OE replacement solution for Toyota RAV4 vehicles.

Common Applications and Issues Addressed

• Restores proper condenser cooling in Toyota RAV4 A/C systems
• Replaces faulty or damaged condenser fan assemblies
• Resolves overheating issues related to insufficient condenser airflow
• Eliminates electrical fan failures due to worn motor or connectors
• Improves overall HVAC system efficiency and reliability

Installation Notes and Tips

• OE mount design allows for direct replacement without modification
• Mounting hardware is not included; reuse existing fasteners if possible
• Ensure electrical connectors match vehicle wiring harness for proper connection
• Verify fan clutch compatibility as it is not included in this assembly
• Handle fan blades carefully to avoid damage during installation

Quality Assurance and Warranty

The Four Seasons Condenser Fan Assembly 75576 is manufactured to meet OE standards for fit, form, and function. It undergoes quality control testing to ensure reliable operation within the Toyota RAV4 HVAC system. This part is an OE replacement, designed to provide consistent performance and durability. Warranty information should be confirmed with the supplier or manufacturer as it may vary.
