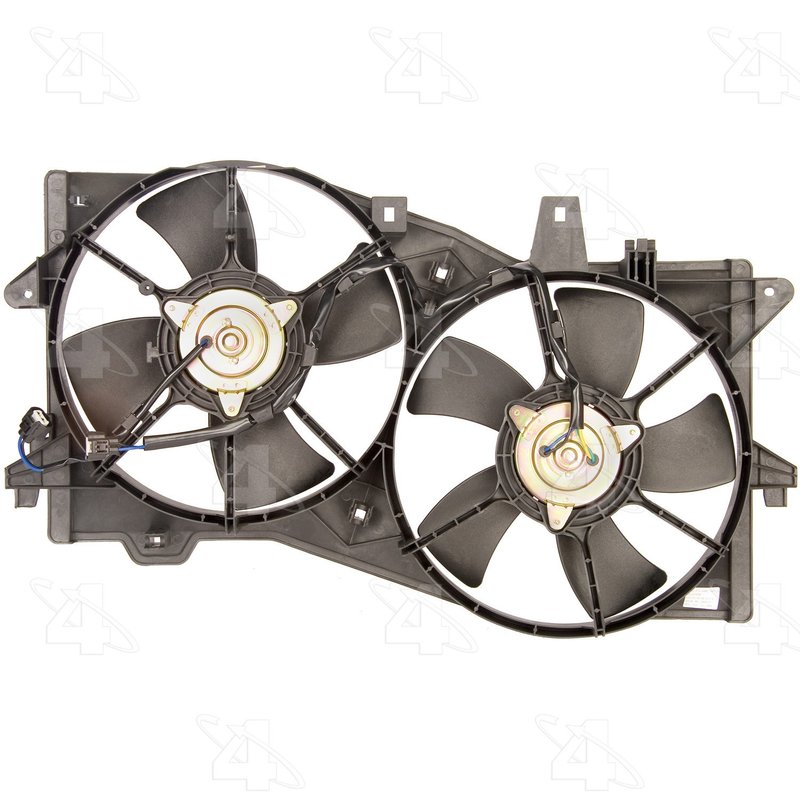

Four Seasons 75613 Dual Radiator and Condenser Fan Assembly

Overview of Four Seasons Rad / Cond Fan Assy. 75613

The Four Seasons Rad / Cond Fan Assembly 75613 is designed specifically for the Mazda MPV, providing reliable cooling performance. This dual radiator and condenser fan assembly ensures efficient airflow to maintain optimal engine temperature and air conditioning system function.

• Dual fan assembly with two 4-blade rigid plastic fans
• Electrical operation at 12 volts for consistent performance
• Includes a black plastic shroud for proper airflow direction
• OE mount type for direct replacement compatibility
• Fan clutch not included, allowing for flexible installation
• Connectors feature a 2-wire lead with male and female terminals

Product Line Details: Rad / Cond Fan Assy.

The Four Seasons Rad / Cond Fan Assy. product line focuses on combined radiator and condenser fan assemblies that integrate dual fans and shrouds for improved cooling efficiency. This line is engineered to meet OE specifications, ensuring proper fit and function for vehicles like the Mazda MPV. The assemblies are constructed with durable plastic and metal materials to withstand engine bay conditions.

Detailed Product Description

This dual radiator and condenser fan assembly (part number 75613) features two rigid plastic fans, each with four blades, designed to optimize airflow through the radiator and condenser. The assembly operates electrically at 12 volts and includes a black plastic shroud to direct airflow effectively. It mounts using OE mounting points, ensuring a straightforward replacement process. The fan clutch is not mounted within the assembly, allowing for compatibility with existing clutch components. Connectors include a 2-wire lead with male and female terminals, facilitating secure electrical connections.

Common Applications and Issues Addressed

• Overheating engine due to insufficient radiator airflow
• Reduced air conditioning performance from condenser cooling issues
• Failure of original fan assembly components causing cooling system inefficiency
• Electrical fan motor failure requiring replacement assembly
• Damaged or cracked fan blades affecting cooling effectiveness

Installation Notes and Tips

Installation requires removal of the existing fan assembly from the Mazda MPV. This assembly mounts using OE mounting points but does not include mounting hardware, so retain original fasteners or source replacements as needed. The fan clutch must be transferred from the original assembly or installed separately, as it is not included. Ensure electrical connectors match the vehicle’s wiring harness for proper connection. Verify clearance around the fan blades and shroud during installation to prevent interference.

Quality Assurance and Warranty

The Four Seasons Rad / Cond Fan Assembly 75613 is manufactured to meet OE replacement standards, ensuring reliable fit and function for the Mazda MPV. Constructed from durable plastic and metal materials, this assembly is designed for long-term service in demanding engine environments. While specific warranty details are not provided, Four Seasons products typically come with a limited warranty against defects in materials and workmanship.
