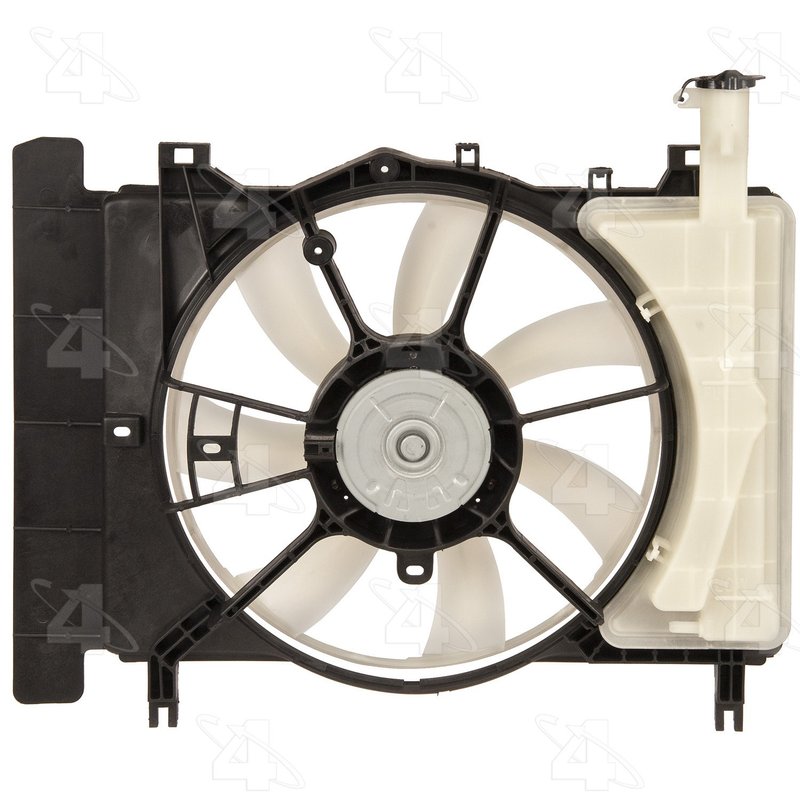

Four Seasons 76001 Engine Cooling Fan Assembly

Overview of Four Seasons Radiator Fan Assy. 76001

The Four Seasons Radiator Fan Assy. 76001 is designed to provide reliable engine cooling for select Toyota and Scion models. This engine cooling fan assembly features a durable plastic and metal construction, ensuring consistent performance in demanding conditions.

• Material: Plastic and metal components for durability
• Voltage: 12V electrical motor assembly
• Includes plastic shroud for optimized airflow
• OE mount type for direct replacement installation
• 7 rigid plastic fan blades for efficient cooling
• Compatible with Toyota RAV4, xD, Yaris and Scion models
• Fan clutch not mounted within the assembly
• Connector: 2-terminal female oval connector
• Dimensions: 31 inches width by 23 inches height

Detailed Product Description

This Four Seasons Radiator Fan Assy. 76001 is an electrical engine cooling fan assembly designed to maintain optimal engine temperature by improving airflow through the radiator. The assembly includes a plastic shroud and a 7-blade rigid plastic fan, mounted on a metal and plastic frame finished in black. It operates on a 12-volt system and features an OE mount type, allowing for straightforward installation on compatible vehicles. The fan clutch is not included within this assembly, which is typical for this part type. The connector is a 2-terminal female oval design, matching factory wiring harnesses for a secure electrical connection.

Compatible Vehicles and Applications

This radiator fan assembly is compatible with various Toyota and Scion models, including the Toyota RAV4, Toyota xD, Toyota Yaris, and Scion vehicles. It is engineered as a direct OE replacement, meeting original equipment specifications to ensure proper fit and function. The part number 76001 corresponds specifically to this assembly, making it suitable for those seeking a reliable cooling fan solution for these models.

Common Issues Addressed by This Cooling Fan Assembly

• Overheating due to faulty or worn radiator fan
• Reduced engine cooling efficiency impacting performance
• Electrical fan motor failure causing inconsistent fan operation
• Damaged or cracked fan blades affecting airflow
• Noise or vibration from unbalanced or damaged fan components

Installation Notes and Tips

Installation requires removal of the existing radiator fan assembly. This part uses OE mounting points for a direct fit but does not include mounting hardware, so retain original fasteners or source replacements as needed. Ensure electrical connectors match the 2-terminal female oval connector on this assembly for proper connection. Verify that the fan clutch is compatible or installed separately, as this assembly does not include it. Proper alignment of the shroud and fan blades is essential to avoid contact with other engine components.

Quality Assurance and Warranty

The Four Seasons Radiator Fan Assy. 76001 is performance rated and designed to meet or exceed OEM standards. It undergoes quality control testing to ensure durability and reliable operation. This part is backed by Four Seasons' commitment to quality, providing confidence in its fit and function for Toyota and Scion vehicles.

About the Four Seasons Radiator Fan Assy. Product Line

The Radiator Fan Assy. product line from Four Seasons focuses on delivering complete engine cooling fan assemblies that combine motor, fan blades, and shroud components. These assemblies are engineered for direct OE replacement, ensuring compatibility and ease of installation. The 76001 model exemplifies this approach by integrating a robust electrical motor with a plastic shroud and rigid fan blades, tailored for specific Toyota and Scion applications.
