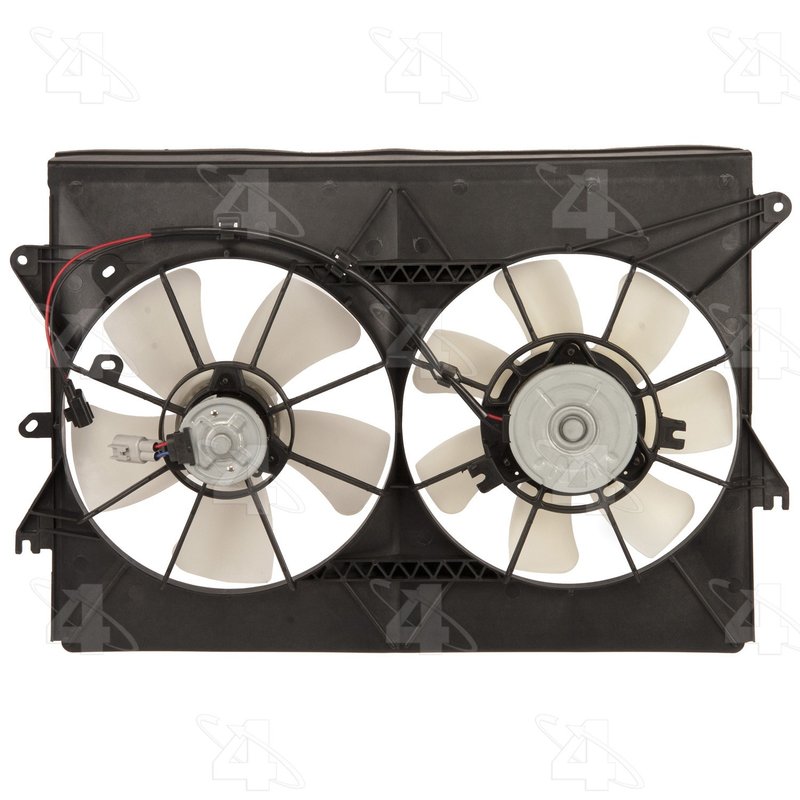

Four Seasons 76009 Dual Radiator and Condenser Fan Assembly

Overview of Four Seasons Rad / Cond Fan Assy. 76009

The Four Seasons Rad / Cond Fan Assy. 76009 is designed specifically for the Scion tC, providing reliable cooling performance for both the radiator and condenser. This dual fan assembly ensures efficient airflow to maintain optimal engine temperature and air conditioning system function.

• Dual radiator and condenser fan assembly with two rigid plastic blades
• OE mount type for direct replacement installation
• Includes plastic shroud for proper airflow management
• Electrical motor assembly operating at 12 volts
• Black plastic and metal construction for durability
• Compatible with Scion tC models
• Fan clutch not mounted within the assembly
• Connector type: 2 wire lead with female and male terminals

Product Line Details: Rad / Cond Fan Assy.

The Rad / Cond Fan Assy. product line by Four Seasons focuses on combined radiator and condenser fan assemblies that integrate dual fans and shrouds into a single unit. This design simplifies installation and improves cooling efficiency by ensuring coordinated airflow across both the radiator and condenser. The 76009 part number is part of this line, offering a direct OE replacement solution for the Scion tC cooling system.

Detailed Product Description

This dual radiator and condenser fan assembly features a durable combination of plastic and metal materials, with rigid plastic blades designed to withstand operational stresses. The assembly measures 30.25 inches in width and 21.5 inches in height, fitting precisely into the Scion tC’s engine bay. It operates on a 12-volt electrical motor, providing consistent airflow without the need for a fan clutch, which is not included in this assembly. The black plastic shroud is included to optimize airflow direction and protect the fan blades. The OE mount type ensures compatibility with factory mounting points, although mounting hardware is not included.

Common Applications and Issues Addressed

• Replacement of faulty or worn dual radiator and condenser fans in Scion tC
• Resolving overheating issues caused by insufficient cooling airflow
• Restoring proper air conditioning condenser cooling performance
• Eliminating electrical fan motor failures affecting engine temperature regulation
• Addressing noise or vibration problems from damaged fan blades or shrouds

Installation Notes and Tips

Installation requires removal of the existing fan assembly and mounting the Four Seasons 76009 unit using OE mounting points. Since mounting hardware is not included, retain original bolts or source appropriate fasteners. Ensure electrical connectors match the vehicle’s wiring harness; this assembly includes two female connectors and two male terminals with a 2-wire lead. Verify that the fan clutch is not required for your application, as this assembly does not include one. Proper alignment of the shroud is essential for optimal airflow and cooling efficiency.

Quality Assurance and Warranty

The Four Seasons Rad / Cond Fan Assy. 76009 is a performance-rated OE replacement part, meeting or exceeding factory specifications for fit and function. Manufactured with quality materials and tested for durability, this assembly supports reliable cooling system operation. Warranty details should be confirmed with the product documentation or supplier, as coverage may vary.
