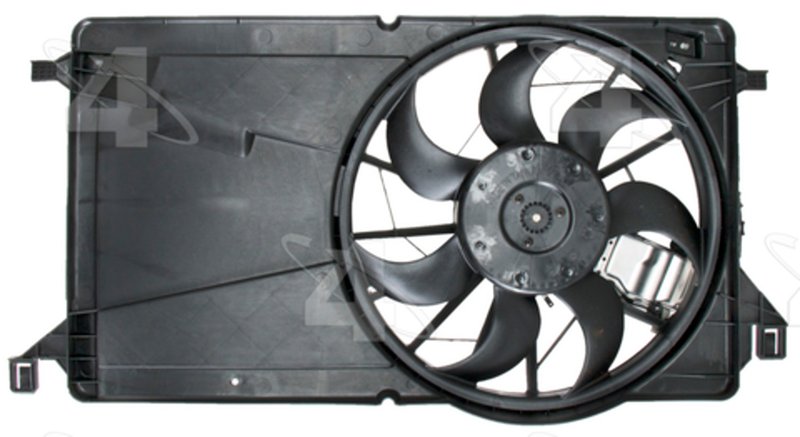

Four Seasons 76010 Engine Cooling Fan Assembly

Overview of Four Seasons Radiator Fan Assy. 76010

The Four Seasons Radiator Fan Assy. 76010 is designed specifically for Mazda 3 models, providing reliable engine cooling performance. This electrical cooling fan assembly features a durable plastic and metal construction to ensure long-lasting operation under demanding conditions.

• Material: Combination of plastic and metal for durability
• Voltage: 12V electrical motor assembly
• Includes a plastic shroud for optimized airflow
• OE mount type with original equipment bolt hole configuration
• 7 rigid plastic fan blades for efficient cooling
• Fan clutch not mounted within the assembly
• Connector: 2-wire lead with female connector and male terminals
• Dimensions: 33.5 inches width by 22.5 inches height

About the Four Seasons Radiator Fan Assy. Product Line

The Radiator Fan Assy. product line from Four Seasons focuses on delivering direct OE replacement cooling fan assemblies. These assemblies are engineered to meet or exceed original equipment specifications, ensuring proper fit and function for specific vehicle applications. The 76010 model is part of this line, designed to maintain optimal engine temperature control for the Mazda 3 by providing consistent airflow through the radiator.

Detailed Product Description

This engine cooling fan assembly operates electrically at 12 volts and features a rigid 7-blade plastic fan designed to maximize airflow efficiency. The assembly includes a plastic shroud that helps direct air through the radiator, improving cooling performance. The fan clutch is not included within this assembly, allowing compatibility with existing clutch components. The OE mount design ensures straightforward installation using the original mounting points on the radiator fan location. The connector system includes a 2-wire lead with a female connector and male terminals, facilitating proper electrical connection.

Common Applications and Issues Addressed

• Replacement for faulty or damaged radiator fan assemblies on Mazda 3 vehicles
• Resolves engine overheating caused by insufficient cooling airflow
• Addresses electrical fan motor failure symptoms such as no fan operation
• Improves cooling system efficiency after fan blade damage or wear
• Restores proper radiator airflow when shroud or fan assembly is compromised

Installation Notes and Tips

This assembly is designed for OE mounting locations on the radiator fan of Mazda 3 models. Mounting hardware is not included, so reuse existing bolts or acquire appropriate fasteners. Ensure electrical connectors match the vehicle’s wiring harness for a secure connection. Verify that the fan clutch is compatible and properly installed separately, as this assembly does not include the clutch. Careful alignment of the shroud and fan blades is recommended to avoid contact with other engine components.

Quality Assurance and Warranty

The Four Seasons Radiator Fan Assy. 76010 is a performance-rated, OE replacement part manufactured to meet industry standards. It undergoes quality control testing to ensure reliable operation and fitment. Warranty coverage details should be confirmed with the product supplier or manufacturer, as they may vary by region or distributor.
