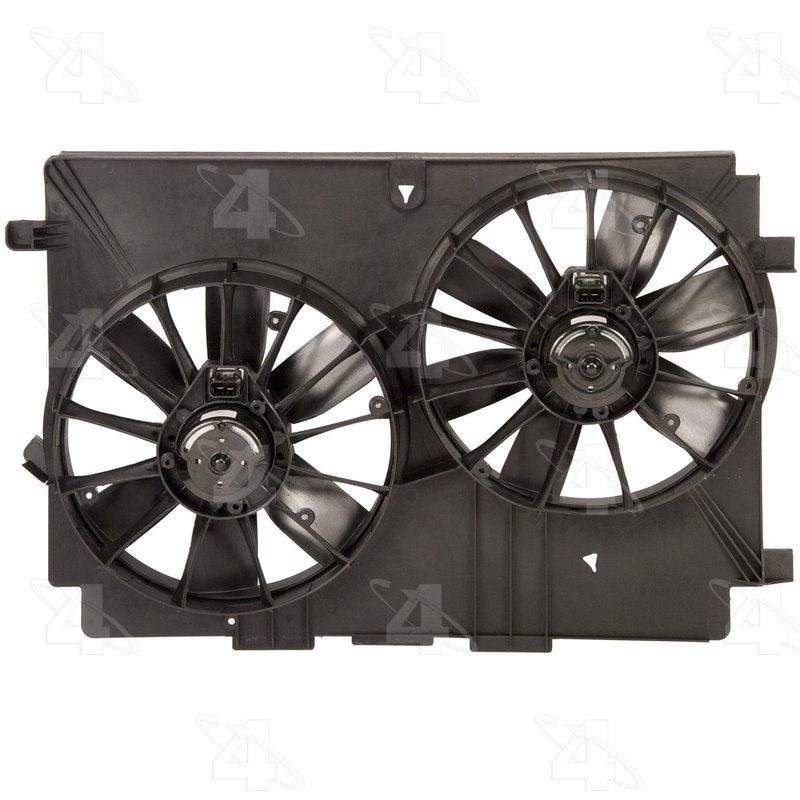

Four Seasons 76034 Dual Radiator and Condenser Fan Assembly

Overview of Four Seasons Rad / Cond Fan Assy. 76034

The Four Seasons Rad / Cond Fan Assy. 76034 is a dual radiator and condenser fan assembly designed for select Chevrolet and Pontiac vehicles. Engineered to provide reliable cooling performance, this assembly is compatible with models such as the Camaro, Corvette, and Firebird.

• Dual fan assembly with two 6-blade rigid plastic fans
• Electrical operation at 12 volts for efficient cooling
• Includes a black plastic shroud for optimal airflow management
• OE mount type ensures direct fitment without modification
• Fan clutch not included, allowing compatibility with existing clutch systems
• Female connectors with two terminals for secure electrical connection
• Plastic and metal construction for durability and corrosion resistance

Product Line Details: Rad / Cond Fan Assy.

The Rad / Cond Fan Assy. product line from Four Seasons focuses on integrated cooling fan assemblies that combine radiator and condenser fans into a single unit. This design simplifies installation and improves cooling efficiency by managing airflow through both the radiator and condenser simultaneously. The 76034 assembly is part of this line, offering a direct OE replacement solution for Chevrolet Camaro, Corvette, and Pontiac Firebird models requiring dual fan operation.

Technical Description and Features

This dual radiator and condenser fan assembly features two rigid plastic fans, each with six blades, designed to provide consistent airflow and cooling performance. The assembly operates electrically at 12 volts and includes a black plastic shroud to direct airflow effectively. The OE mount type ensures that the fan assembly fits precisely into the vehicle’s existing mounting points without the need for additional hardware, which is not included. The fan clutch is not mounted within the assembly, allowing compatibility with the vehicle’s original clutch system. Connectors are female with two terminals, matching the vehicle’s wiring harness for straightforward installation.

Applications and Problem Solving

• Replaces faulty or damaged dual radiator and condenser fan assemblies
• Resolves overheating issues caused by inadequate cooling fan operation
• Addresses electrical fan motor failures in Chevrolet Camaro, Corvette, and Pontiac Firebird
• Improves air conditioning condenser cooling efficiency
• Restores proper airflow management through radiator and condenser

Installation Notes and Tips

Installation requires removal of the existing fan assembly and mounting the Four Seasons 76034 unit using the OE mounting points. Mounting hardware is not included, so retain original fasteners or acquire appropriate replacements. Ensure electrical connectors are securely attached to prevent intermittent operation. Since the fan clutch is not included, verify the condition of the existing clutch before installation. Proper alignment of the shroud is essential for optimal airflow and cooling performance.

Quality Assurance and Warranty

Four Seasons fan assemblies are manufactured to meet or exceed OE specifications, ensuring reliable performance and fitment. The 76034 assembly is an OE replacement part, designed for durability with plastic and metal materials resistant to corrosion and wear. While specific warranty details are not provided here, Four Seasons typically offers limited warranties on their cooling components. Verify warranty terms with the product documentation or supplier.
