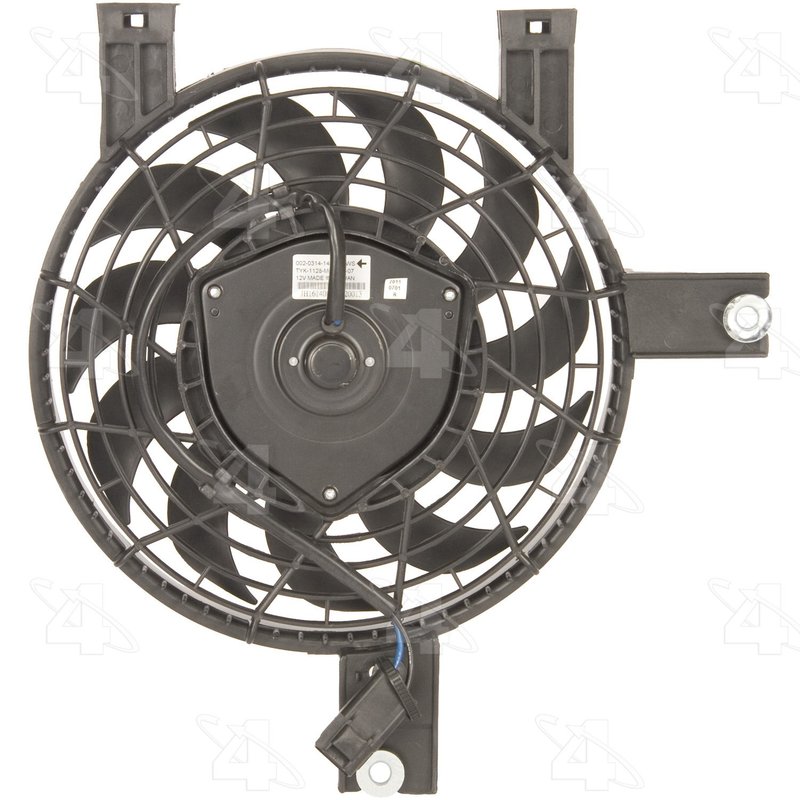

Four Seasons 76090 A/C Condenser Fan Assembly

Overview of Four Seasons Condenser Fan Assy. 76090

The Four Seasons Condenser Fan Assembly 76090 is designed specifically for Lexus Land Cruiser and Toyota LX470 models. This electrical A/C condenser fan assembly ensures efficient cooling performance with durable plastic and metal construction, tailored to meet original equipment standards.

• Material: Combination of plastic and metal for durability
• Voltage: 12V electrical operation
• Includes shroud for optimal airflow management
• OE mount type for direct replacement installation
• Fan blade count: 11 rigid plastic blades
• Connector: 2-wire lead with female rectangular connector
• Fan clutch not included within assembly
• Terminal configuration: male terminals, 2 total

Details on the Four Seasons Condenser Fan Assy. Product Line

The Four Seasons Condenser Fan Assy. product line focuses on providing reliable cooling fan assemblies that meet or exceed original equipment specifications. This line is engineered to deliver consistent airflow and temperature regulation for vehicle A/C condensers, ensuring proper HVAC system function. The 76090 model is part of this line, offering a precise fit and electrical design compatible with select Lexus and Toyota vehicles.

Product Description and Features

This A/C condenser fan assembly features a 14.25-inch height and includes a shroud to direct airflow efficiently across the condenser. The fan blades are made of rigid plastic, with 11 blades designed to optimize cooling performance. The assembly operates on a 12-volt electrical system and uses a 2-wire lead with a female rectangular connector for straightforward electrical integration. The OE mount type ensures the assembly fits securely in the condenser fan location without modification. Note that the fan clutch is not mounted within this assembly, and mounting hardware is not included.

Common Applications and Problem Solving

• Replaces faulty or damaged condenser fan assemblies in Lexus Land Cruiser and Toyota LX470
• Resolves overheating issues related to insufficient condenser cooling
• Addresses electrical fan failures causing A/C system inefficiency
• Eliminates noise or vibration caused by worn fan blades or mounts
• Restores proper airflow to maintain optimal HVAC condenser temperature

Installation Notes and Tips

• Ensure compatibility with Lexus Land Cruiser and Toyota LX470 models before installation
• OE mount design allows for direct replacement without modification
• Verify electrical connections match the 2-wire lead with female rectangular connector
• Fan clutch must be installed separately if required by vehicle design
• Mounting hardware is not included; reuse existing hardware or source separately

Quality Assurance and Warranty

The Four Seasons Condenser Fan Assembly 76090 is manufactured to meet original equipment standards, providing reliable performance and durability. This part is an exact OE replacement designed to maintain factory specifications. Warranty details should be confirmed with the product provider or manufacturer.
