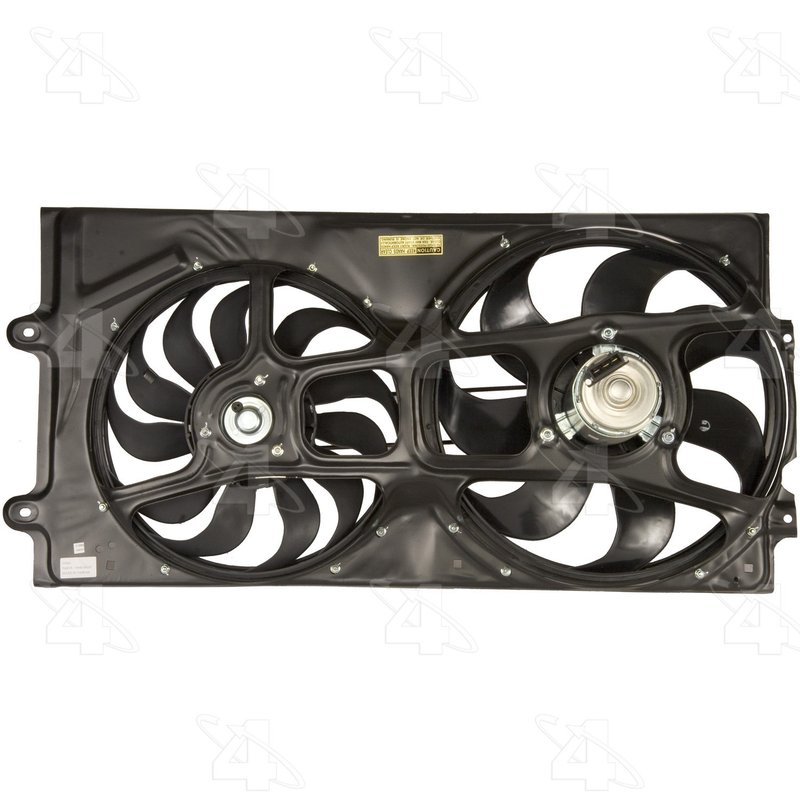

Four Seasons 76102 Dual Radiator and Condenser Fan Assembly

Overview of Four Seasons Rad / Cond Fan Assy. 76102

The Four Seasons Rad / Cond Fan Assy. 76102 is a dual radiator and condenser fan assembly designed specifically for Volkswagen Passat models. This assembly combines durable plastic and metal materials to ensure reliable cooling performance for your vehicle's engine and air conditioning system.

• Dual fan assembly with two 11-blade rigid plastic fans
• Electrical operation with a 12-volt motor
• Includes a plastic shroud for optimal airflow management
• OE mount type for direct replacement installation
• Connector type: 3-terminal female connector with male terminals
• Fan clutch not mounted within the assembly
• Black housing finish for corrosion resistance

Detailed Product Description

This Four Seasons cooling fan assembly (part number 76102) features two 11-blade fans constructed from rigid plastic, designed to provide efficient airflow through the radiator and condenser. The assembly operates electrically at 12 volts and includes a plastic shroud to direct airflow effectively. The housing is finished in black, combining plastic and metal components for durability and heat resistance. It is designed as an OE replacement with an OE mount type, ensuring compatibility and ease of installation on Volkswagen Passat vehicles. The fan clutch is not included within this assembly, allowing for flexibility depending on your vehicle's configuration.

The Rad / Cond Fan Assy. product line by Four Seasons focuses on integrated cooling solutions that combine radiator and condenser fans into a single assembly. This approach simplifies installation and maintenance while maintaining proper engine and A/C system temperatures. The 76102 model fits within this line, providing a reliable replacement part engineered to meet factory specifications.

Common Applications and Issues Addressed

• Overheating engine due to insufficient radiator airflow
• Air conditioning system inefficiency caused by condenser cooling failure
• Damaged or worn dual fan assemblies in Volkswagen Passat models
• Electrical fan motor failure affecting cooling performance
• Replacement of broken or cracked fan blades or shroud

Installation Notes and Tips

• Ensure vehicle compatibility with Volkswagen Passat before installation
• Mounting hardware is not included; reuse existing hardware or acquire separately
• Verify electrical connector compatibility with the vehicle’s wiring harness (3-terminal female connector)
• Check fan clutch requirements as this assembly does not include a fan clutch
• Handle the plastic blades and shroud carefully to avoid damage during installation

Quality Assurance and Warranty

Four Seasons Rad / Cond Fan Assy. 76102 is manufactured to meet OE specifications for fit, form, and function. The assembly undergoes quality control testing to ensure reliable operation under normal driving conditions. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
