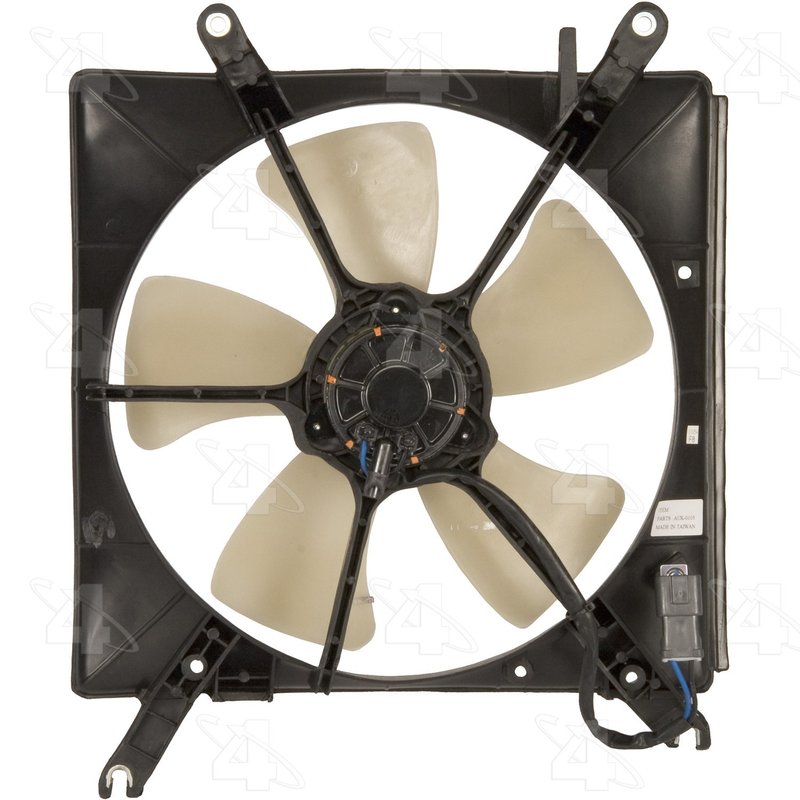

Four Seasons 76109 Engine Cooling Fan Assembly

Overview of Four Seasons Radiator Fan Assy. 76109

The Four Seasons Radiator Fan Assy. 76109 is designed specifically for Acura CL models, providing reliable engine cooling performance. This engine cooling fan assembly features a durable plastic and metal construction to ensure long-lasting operation in demanding conditions.

• Material: Combination of plastic and metal for durability
• Voltage: 12V electrical operation
• Includes a plastic shroud for optimized airflow
• OE mount type for direct replacement installation
• Fan blade count: 6 rigid plastic blades
• Connector: 2-wire lead with female rectangular connector
• Fan clutch not included within the assembly
• Dimensions: 16.5 inches (height) with mounting hardware not included

Detailed Product Description

This Four Seasons Radiator Fan Assy. 76109 is an OE replacement part engineered to meet the cooling requirements of the Acura CL. The assembly includes a single 6-blade rigid plastic fan designed to efficiently move air through the radiator. The fan motor operates electrically at 12 volts and is housed within a black plastic shroud that helps direct airflow and protect the fan blades. The assembly mounts directly to the radiator using OE mount points, ensuring proper fit and function without modification. The fan clutch is not mounted within this assembly, allowing compatibility with existing clutch components on the vehicle.

Applications and Common Issues Addressed

• Replaces faulty or worn radiator fan assemblies in Acura CL vehicles
• Resolves overheating issues caused by insufficient airflow
• Eliminates electrical fan motor failures affecting engine cooling
• Addresses noise or vibration problems from damaged fan blades or shroud
• Improves cooling system efficiency for better engine temperature regulation

Installation Notes and Tips

Installation requires removal of the existing radiator fan assembly from the Acura CL. This part uses OE mounting points for a direct fit but does not include mounting hardware, so retain original bolts or source compatible fasteners. Ensure electrical connectors match the 2-wire female rectangular connector on this assembly for proper connection. Verify the fan clutch is compatible and properly installed, as it is not included with this assembly. Careful handling of the plastic blades and shroud during installation will prevent damage.

Quality Assurance and Warranty

Four Seasons Radiator Fan Assy. 76109 is manufactured to meet OEM specifications for fit, form, and function. The combination of plastic and metal materials provides durability under normal operating conditions. This part is an OE replacement designed to maintain the original cooling system performance of the Acura CL. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.

About the Four Seasons Radiator Fan Assy. Product Line

The Four Seasons Radiator Fan Assy. product line focuses on providing complete engine cooling fan assemblies that include the fan blades, motor, and shroud. These assemblies are designed for direct OE replacement, ensuring compatibility and reliable cooling system operation. The 76109 model exemplifies this approach by offering a fully integrated fan assembly tailored for Acura CL vehicles, supporting efficient engine temperature management without the need for additional components.
