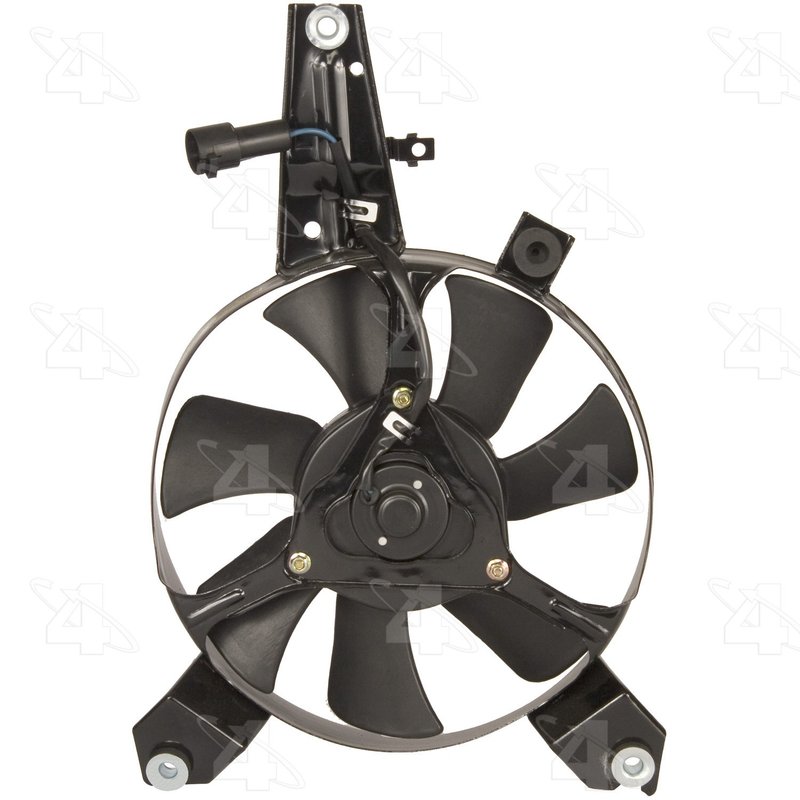

Four Seasons 76113 A/C Condenser Fan Assembly

Overview of Four Seasons Condenser Fan Assy. 76113

The Four Seasons Condenser Fan Assembly 76113 is designed specifically for the Mazda MPV, providing reliable cooling performance for your vehicle's air conditioning system. This OE replacement part ensures proper airflow through the condenser, helping maintain optimal A/C efficiency.

• Material: Durable plastic and metal construction
• Voltage: 12V electrical operation
• Includes metal shroud for enhanced airflow management
• OE mount type for direct fit installation
• Fan clutch not included within assembly
• 7 rigid plastic blades for effective cooling
• Connector: 2-wire lead with female connector
• Terminal configuration: male terminals, 2 total
• Height: 16.75 inches, designed for condenser fan mount location

About the Four Seasons Condenser Fan Assy. Product Line

The Four Seasons Condenser Fan Assy. product line focuses on providing reliable cooling fan assemblies that meet OE specifications. This line is engineered to deliver consistent airflow and durability, using quality materials such as metal shrouds and plastic fan blades. The 76113 model fits seamlessly into the Mazda MPV’s HVAC condenser system, ensuring proper cooling fan operation without the need for additional modifications.

Detailed Product Description

This A/C condenser fan assembly features a combination of plastic and metal materials to balance durability and weight. The 12-volt electrical fan includes a metal shroud that helps direct airflow efficiently across the condenser. With seven rigid plastic blades, the fan assembly is designed to maintain consistent cooling performance. The assembly mounts directly to the condenser fan location using OE mounting points, simplifying installation. Note that the fan clutch is not included within this assembly, so it must be sourced separately if required.

Common Applications and Issues Addressed

• Restores proper condenser cooling for Mazda MPV A/C systems
• Resolves overheating issues caused by faulty or worn condenser fans
• Eliminates abnormal fan noise due to damaged blades or motor failure
• Improves air conditioning efficiency by ensuring adequate airflow
• Replaces broken or corroded fan assemblies to maintain system integrity

Installation Notes and Tips

This condenser fan assembly is designed for direct OE replacement on the Mazda MPV. It mounts using the original equipment mounting points and hardware (mounting hardware not included). Ensure electrical connectors match the vehicle’s wiring harness; this assembly includes a 2-wire lead with a female connector. Verify that the fan clutch is installed separately if your vehicle requires one. Proper alignment of the shroud and fan blades is essential for optimal performance.

Quality Assurance and Warranty

Four Seasons parts are manufactured to meet or exceed OE standards, providing reliable performance and durability. The Condenser Fan Assy. 76113 is an OE replacement part, ensuring compatibility and fitment with the Mazda MPV. While specific warranty details are not provided here, Four Seasons typically offers limited warranties on their HVAC components to cover defects in materials and workmanship.
