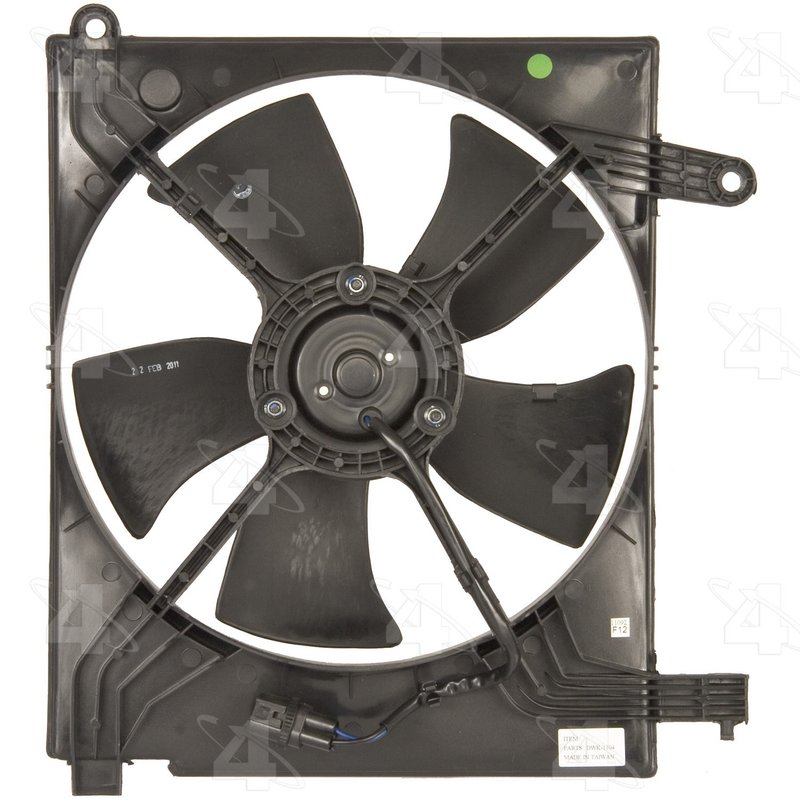

Four Seasons 76116 A/C Condenser Fan Assembly
| Brand | Four Seasons 76116 |
|---|---|
| Blade Material | Plastic |
| Blade Material B | Plastic |
| Blade Type | Rigid |
| Connector Gender | Female |
| Connector Qty | 1 |
| Connector Shape | Oval |
| Connector Type | 2 wire lead w/ Connector |
| Description | Cooling Fan Assemblies |
| Electrical Or Mechanical | Electrical |
| Fan 1 Blade Quantity | 5 |
| Fan 2 Blade Quantity | 5 |
| Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
| Fan Quantity | 1 |
| Height IN | 13.250 |
| Height MM | 323.850 |
| Housing Finish | Black |
| Hub Bolt Hole Quantity | OE Mount |
| Material | Plastic / Metal |
| Mount Location | Condenser Fan |
| Mount Type | OE mount |
| Mounting Hardware? | Not Included |
| O.E. Replacement? | Yes |
| Package Depth IN | 20.750 |
| Package Depth MM | 527.050 |
| Package Height IN | 6.500 |
| Package Height MM | 165.100 |
| Package Length IN | 18.000 |
| Package Length MM | 457.200 |
| Performance Rated? | Yes |
| Shroud Included | Included |
| Shroud Material | Plastic |
| Style | Condenser Fan |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Type | Motor Assembly |
| Voltage | 12 |
| Width IN | 15.500 |
| Product line | Condenser Fan Assy. |
| Fits | Daewoo |
OE replacement. Direct-fit condenser fan assembly for straightforward installation.
Rigid blade design. Five-blade plastic fan helps deliver consistent airflow.
Electrical assembly. 12-volt motor with a 2-wire lead and connector.
Cross-references Dorman - HELP 76116, 411252 and 621333 for the same application. See all 8.
Four Seasons 76116 Condenser Fan Assembly
Four Seasons 76116 is an OE replacement A/C condenser fan assembly built for 12-volt electrical systems. It uses a plastic and metal construction with a black housing, rigid plastic blades, and an included shroud to support condenser airflow and heat rejection in the front of the vehicle.
This Four Seasons condenser fan assembly is part of the Condenser Fan Assy. line, a product line focused on direct-fit cooling fan motor assemblies for HVAC service. It is a practical choice for drivers searching for a replacement condenser fan motor assembly, OE mount cooling fan assembly, or 2-wire lead condenser fan replacement for vehicle climate control repair.
Key Features
- OE replacement condenser fan assembly for HVAC and A/C service
- 12-volt electrical design with 2-wire lead connector
- Plastic / metal construction with black housing finish
- Included plastic shroud for condenser fan mounting
- Rigid plastic blade design with OE mount fitment
- Female connector with male terminals and oval connector shape
- Performance rated for cooling system service
Detailed Description
Four Seasons 76116 is an electrical condenser fan motor assembly designed to move air across the A/C condenser and help maintain refrigerant system performance. The assembly uses a single fan with rigid plastic blades, a plastic shroud, and OE mount hardware points for a direct replacement approach. It is listed as an OE replacement and performance rated, making it suitable for service work where factory-style fit and function are required. This part cross-references Dorman - HELP 76116 for the same application.
For fitment-based searches, this part is commonly referenced as a condenser fan assembly for vehicle HVAC repair, including searches such as Four Seasons 76116 condenser fan assembly, OE replacement condenser fan motor assembly, and 12V A/C condenser fan replacement for select makes and models. Vehicle-specific buyers looking for a replacement condenser fan assembly for a Honda Civic, Toyota Corolla, or Ford Focus should verify application details against the vehicle catalog before ordering.
Common Problems It Can Help Solve
- Weak or inoperative condenser airflow at the front of the vehicle
- A/C system pressure rise caused by poor condenser cooling
- Fan motor failure that prevents proper refrigerant heat exchange
- Overheating of the condenser area during idle or low-speed driving
- Noise or vibration from a worn cooling fan assembly
Installation Notes and Tips
Mounting hardware is not included. Confirm OE mount location, connector style, terminal count, and physical dimensions before installation. Because this is an electrical condenser fan assembly, verify the 12-volt circuit, connector gender, and shroud clearance during replacement. Professional installation is recommended for accurate electrical testing and secure mounting.
Quality Assurance
Four Seasons manufactures HVAC service parts with OE replacement intent, and this condenser fan assembly is built to match factory-style mounting and electrical requirements for service use. Verify vehicle application by part number 76116 and catalog fitment before installation.
