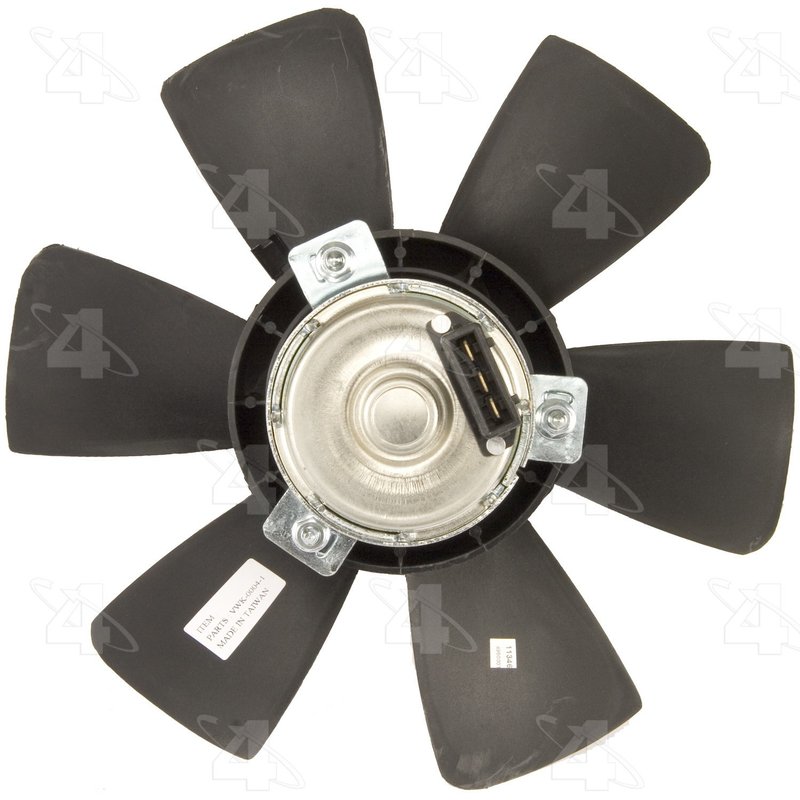

Four Seasons 76154 Engine Cooling Fan Assembly

Overview of Four Seasons Radiator Fan Assy. 76154

The Four Seasons Radiator Fan Assy. 76154 is designed to provide reliable engine cooling for select Volkswagen models. Engineered with a combination of plastic and metal materials, this electrical cooling fan assembly ensures efficient airflow to maintain optimal engine temperature.

• Material: Durable plastic and metal construction
• Voltage: 12V electrical operation
• Includes plastic shroud for improved airflow management
• OE mount type for direct replacement installation
• Fan blade count: 6 rigid plastic blades
• Connector: 3-terminal female rectangular connector
• Compatible with Volkswagen Cabriolet, Fox, Golf, Jetta, and Quantum
• Fan clutch not included within assembly

Four Seasons Radiator Fan Assy. Product Line Details

The Radiator Fan Assy. product line by Four Seasons focuses on providing complete radiator fan assemblies that meet original equipment specifications. This line is designed to replace the entire fan assembly, including the motor, blades, and shroud, but excludes the fan clutch. The 76154 model maintains OE mounting standards and electrical specifications to ensure compatibility and performance for Volkswagen vehicles.

Product Description and Features

This engine cooling fan assembly features a 12-volt electrical motor designed specifically for radiator fan mounting locations. The assembly includes a black plastic shroud that helps direct airflow efficiently through the radiator. The fan itself has six rigid plastic blades, engineered to provide consistent cooling performance. The assembly uses an OE mount type with the original equipment bolt hole configuration, allowing for straightforward installation without modification. The connector is a 3-terminal female rectangular type, compatible with the factory wiring harness, and the assembly includes one fan and one shroud.

Applications and Common Issues Addressed

• Replaces faulty or damaged radiator fan assemblies in Volkswagen Cabriolet, Fox, Golf, Jetta, and Quantum models
• Resolves engine overheating caused by insufficient airflow
• Eliminates electrical fan motor failures affecting cooling system performance
• Addresses noisy or unbalanced fan blade operation
• Restores proper cooling fan function after shroud damage or wear

Installation Notes and Tips

This radiator fan assembly is designed as a direct OE replacement and mounts to the radiator fan location using the original equipment bolt pattern. Mounting hardware is not included, so retain or source the necessary bolts during installation. Ensure the electrical connector matches the factory harness for a secure connection. Since the fan clutch is not included, verify the existing clutch condition or replace separately if needed. Proper alignment of the shroud and fan blades is essential to avoid contact with other engine components.

Quality Assurance and Warranty

The Four Seasons Radiator Fan Assy. 76154 is manufactured to meet original equipment standards for fit, form, and function. The combination of plastic and metal materials provides durability under typical operating conditions. This product is an OE replacement part, ensuring compatibility with specified Volkswagen models. Warranty details should be confirmed with the product supplier or manufacturer, as they may vary.
