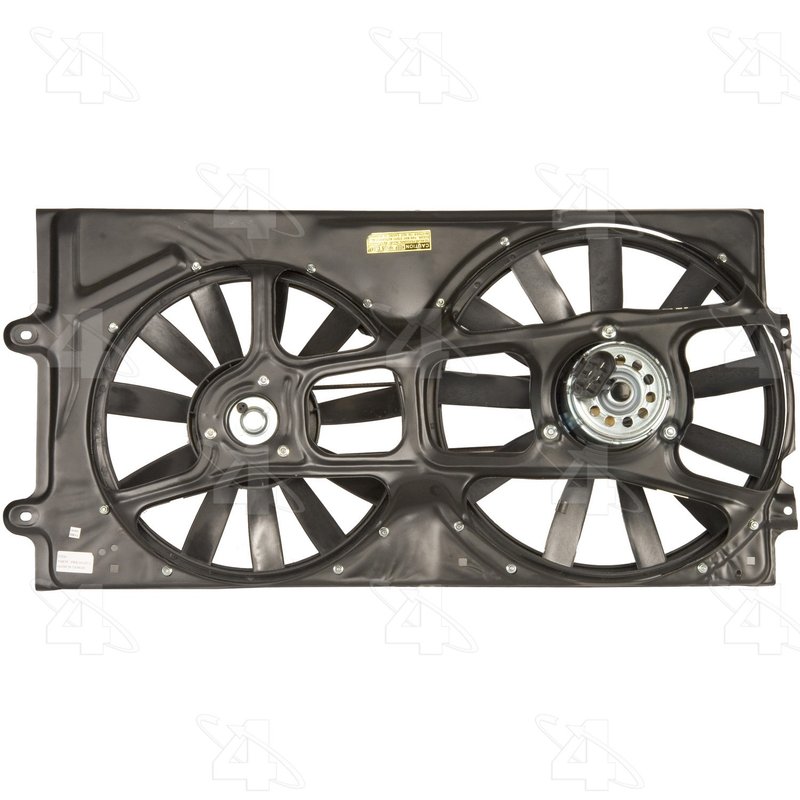

Four Seasons 76168 Dual Radiator and Condenser Fan Assembly

Overview of Four Seasons Rad / Cond Fan Assembly 76168

The Four Seasons Rad / Cond Fan Assy. 76168 is designed specifically for Volkswagen Passat models, providing reliable cooling performance. This dual radiator and condenser fan assembly ensures efficient airflow to maintain optimal engine temperature and air conditioning system function.

• Dual fan assembly with two 11-blade rigid plastic fans
• Electrical operation with 12-volt motor
• OE mount type for direct replacement
• Includes plastic shroud for proper airflow direction
• Black housing finish for durability and corrosion resistance
• Four-terminal female connector with male terminals
• Fan clutch not mounted within assembly
• Plastic and metal construction for strength and lightweight design

Detailed Product Features and Specifications

This Four Seasons cooling fan assembly (part number 76168) features two 11-blade fans made from rigid plastic, designed to provide consistent airflow through the radiator and condenser. The assembly operates electrically at 12 volts and includes a plastic shroud to optimize cooling efficiency. The housing is finished in black, combining durability with a clean appearance. It mounts using OE specifications, ensuring a direct fit for Volkswagen Passat vehicles without modification. The fan clutch is not included within this assembly, allowing compatibility with existing clutch components. The connector system includes a single 4-terminal female connector with male terminals, facilitating straightforward electrical connections.

About the Four Seasons Rad / Cond Fan Assy. Product Line

The Four Seasons Rad / Cond Fan Assy. product line focuses on integrated dual radiator and condenser fan assemblies designed to meet OE standards. These assemblies combine durable materials such as plastic and metal to deliver reliable cooling performance. The 76168 model is part of this line, engineered to provide a precise fit and efficient operation for Volkswagen Passat cooling systems.

Common Applications and Problem Resolution

• Replaces faulty or worn dual radiator and condenser fan assemblies
• Resolves overheating issues caused by inadequate airflow
• Restores proper air conditioning condenser cooling performance
• Eliminates electrical fan motor failures in Volkswagen Passat models
• Addresses noise or vibration problems from damaged fan blades or shrouds

Installation Notes and Tips

This assembly mounts using OE specifications for a direct fit on Volkswagen Passat vehicles. Note that mounting hardware is not included and must be reused or sourced separately. The fan clutch is not pre-installed, so ensure compatibility with your existing clutch setup. Electrical connections use a 4-terminal female connector; verify connector compatibility before installation. Handle the plastic blades and shroud carefully to avoid damage during installation.

Quality Assurance and Warranty Information

Four Seasons cooling fan assemblies are manufactured to meet or exceed OE standards for fit, form, and function. The 76168 dual radiator and condenser fan assembly undergoes quality control testing to ensure reliable operation. This part is an OE replacement designed specifically for Volkswagen Passat models, providing confidence in durability and performance.
