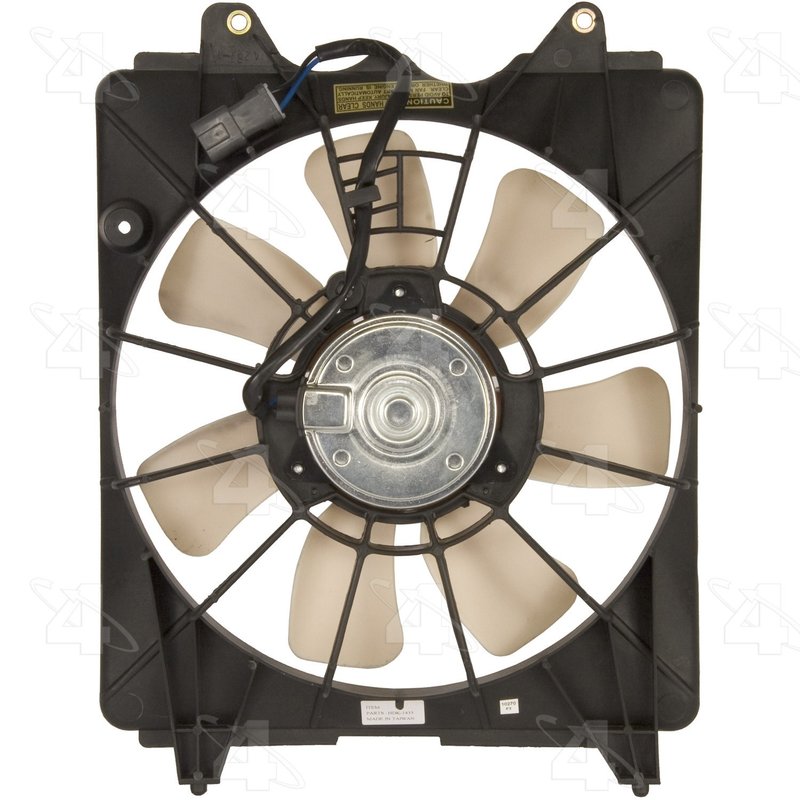

Four Seasons 76178 A/C Condenser Fan Assembly

Overview of Four Seasons Condenser Fan Assy. 76178

The Four Seasons Condenser Fan Assembly 76178 is designed specifically for Honda Civic models, providing reliable cooling performance for your vehicle's A/C condenser. This assembly combines durable plastic and metal materials to ensure long-lasting operation in demanding automotive environments.

• Material: Plastic and metal construction for durability
• Voltage: 12V electrical operation
• Includes plastic shroud for optimized airflow
• OE mount type for direct replacement installation
• Fan clutch not included within the assembly
• 7 rigid plastic blades for efficient cooling
• Connector: 2-wire lead with female connector
• Height: 17 inches (381 mm)

About the Four Seasons Condenser Fan Assy. Product Line

The Four Seasons Condenser Fan Assy. product line focuses on providing complete cooling fan assemblies designed to meet original equipment specifications. This ensures compatibility and performance for HVAC components such as A/C condensers and evaporators. The 76178 model is part of this line, engineered to deliver consistent airflow and maintain proper condenser temperatures in Honda Civic vehicles.

Detailed Product Description

This A/C condenser fan assembly features a combination of plastic and metal materials, offering a balance of strength and lightweight design. The 12-volt electrical fan includes a single 7-blade rigid plastic fan that is housed within a black plastic shroud to direct airflow efficiently across the condenser. The assembly mounts using OE mount points, ensuring a straightforward replacement process without modification. The fan clutch is not mounted within this assembly, which is typical for this type of condenser fan setup. Electrical connections are made via a 2-wire lead with a female rectangular connector, designed for compatibility with the Honda Civic's wiring harness.

Common Applications and Issues Addressed

• Replacement of faulty or worn condenser fan assemblies in Honda Civic models
• Resolving overheating issues related to insufficient condenser cooling
• Restoring proper A/C system performance by ensuring adequate airflow
• Addressing electrical fan failures that impact HVAC efficiency
• Eliminating noise or vibration caused by damaged fan blades or shrouds

Installation Notes and Tips

This condenser fan assembly is designed for direct OE replacement on compatible Honda Civic vehicles. Mounting hardware is not included, so retain original fasteners or acquire appropriate hardware before installation. Ensure electrical connectors are securely attached and free of corrosion. Since the fan clutch is not included, verify the existing clutch condition or replace separately if necessary. Proper alignment of the shroud and fan blades is essential to avoid contact with other engine components.

Quality Assurance and Warranty

Four Seasons parts are manufactured to meet or exceed OEM standards, providing reliable performance and fitment. The Condenser Fan Assy. 76178 is an OE replacement part, ensuring compatibility with Honda Civic HVAC systems. While specific warranty details are not provided here, Four Seasons typically offers limited warranties covering defects in materials and workmanship.
