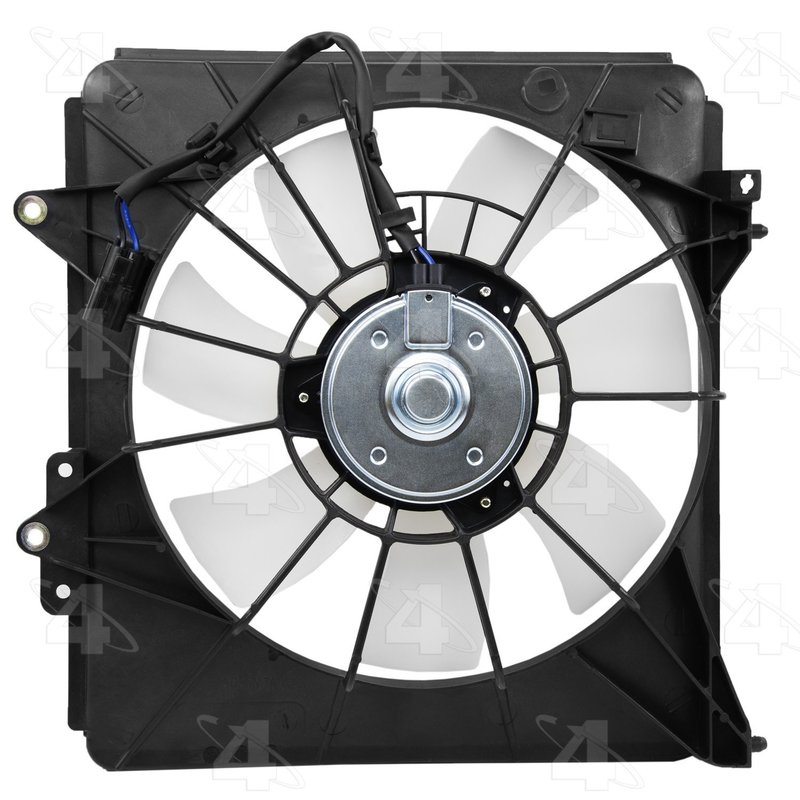

Four Seasons 76221 A/C Condenser Fan Assembly

Overview of Four Seasons Condenser Fan Assy. 76221

The Four Seasons Condenser Fan Assembly 76221 is designed specifically for Honda Fit models, providing reliable cooling performance for your vehicle's A/C condenser. This OE replacement part ensures proper airflow and temperature regulation within the HVAC system.

• Durable plastic and metal construction for long-lasting use
• 12-volt electrical motor assembly with a rigid 6-blade plastic fan
• Includes a plastic shroud for optimal airflow management
• OE mount type for direct fit installation on Honda Fit
• Equipped with a 2-terminal female connector and male terminals

Four Seasons Condenser Fan Assy. Product Line Details

The Four Seasons Condenser Fan Assy. product line focuses on cooling fan assemblies designed to meet or exceed original equipment specifications. This line provides components that maintain proper condenser cooling, essential for efficient A/C system operation. The 76221 assembly is part of this line, offering a motor assembly with a black housing finish and OE mounting compatibility for Honda Fit vehicles.

Product Features and Specifications

This A/C condenser fan assembly features a 16.25-inch height and 15.75-inch width, making it suitable for the designated mount location on the condenser fan of Honda Fit models. The fan clutch is not mounted within the assembly, allowing compatibility with existing fan clutch setups. The assembly includes one fan with six rigid plastic blades, designed to provide consistent airflow. The electrical motor operates at 12 volts and connects via a single rectangular 2-terminal female connector, ensuring straightforward electrical integration.

Common Applications and Problem Resolution

• Replaces faulty or damaged condenser fan assemblies in Honda Fit vehicles
• Resolves overheating issues related to insufficient condenser cooling
• Addresses A/C system inefficiencies caused by fan motor failure
• Eliminates noise or vibration from worn fan blades or motor components
• Restores proper airflow to maintain optimal HVAC performance

Installation Notes and Tips

This condenser fan assembly is designed for OE mount installation on Honda Fit models. Mounting hardware is not included, so retain original fasteners or acquire appropriate replacements. Ensure electrical connectors are securely attached and verify the fan clutch setup is compatible, as the clutch is not included within this assembly. Proper alignment of the shroud and fan blades is essential for optimal performance.

Quality Assurance and Warranty

The Four Seasons Condenser Fan Assembly 76221 is a performance-rated OE replacement part, manufactured to meet industry standards for durability and reliability. While specific warranty details are not provided, Four Seasons products typically adhere to quality assurance protocols to support long-term vehicle operation.
