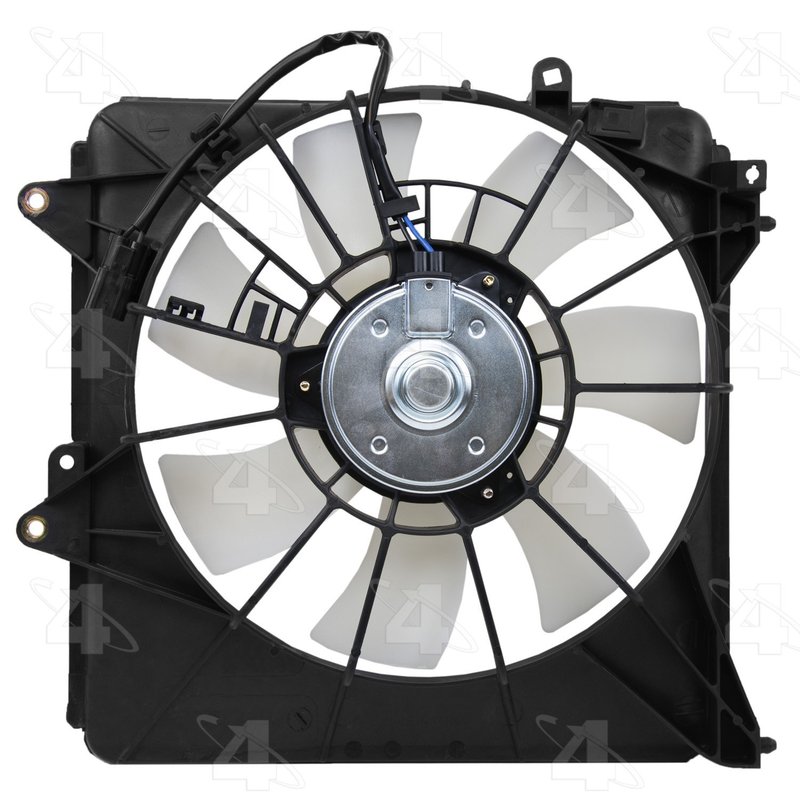

Four Seasons 76222 A/C Condenser Fan Assembly

Overview of Four Seasons Condenser Fan Assy. 76222

The Four Seasons Condenser Fan Assembly 76222 is designed specifically for the Honda Fit, providing reliable cooling performance for your vehicle's A/C condenser. This electrical motor assembly features a durable combination of plastic and metal materials, ensuring long-lasting operation under demanding conditions.

• Compatible with Honda Fit models
• Electrical 12-volt motor assembly
• Includes a plastic shroud for optimal airflow
• OE mount type for direct replacement
• Six rigid plastic fan blades for efficient cooling
• Single fan quantity with 2-wire lead and female connector
• Black housing finish for corrosion resistance

Four Seasons Condenser Fan Assy. Product Line Details

The Four Seasons Condenser Fan Assy. product line focuses on delivering reliable cooling fan assemblies designed to meet or exceed original equipment specifications. This line emphasizes performance-rated components that integrate seamlessly with your vehicle's HVAC system. The 76222 assembly is part of this line, offering an OE replacement solution that maintains proper condenser cooling for the Honda Fit.

Product Features and Specifications

This condenser fan assembly measures 16.25 inches in height and 13 inches in width, making it a precise fit for the Honda Fit's condenser fan mount location. The assembly includes a plastic shroud that helps direct airflow efficiently across the condenser. The fan features six rigid plastic blades mounted on a motor assembly that operates electrically at 12 volts. The unit uses a 2-wire lead with a female rectangular connector, designed for straightforward electrical connection. The housing is finished in black to resist environmental wear, and the assembly mounts using OE mounting points, ensuring compatibility without modification.

Common Applications and Problem Solving

• Replaces faulty or worn condenser fan motors in Honda Fit models
• Restores proper airflow to prevent A/C condenser overheating
• Eliminates electrical fan failures causing insufficient cooling
• Addresses noisy or unbalanced fan blade issues
• Improves overall HVAC system efficiency and vehicle comfort

Installation Notes and Tips

Installation of the Four Seasons Condenser Fan Assembly 76222 requires removal of the existing condenser fan motor assembly. Note that mounting hardware is not included, so retain original fasteners or acquire appropriate replacements. Ensure electrical connectors match the 2-wire lead female connector for proper connection. Verify the fan clutch is not mounted within this assembly, as it is designed to operate independently. Follow vehicle-specific service manual instructions for safe and correct installation.

Quality Assurance and Warranty

This Four Seasons condenser fan assembly is performance rated and designed as an OE replacement part, meeting original equipment standards for fit and function. While specific warranty details are not provided here, Four Seasons products typically come with manufacturer-backed warranties to ensure reliability and customer satisfaction. Always confirm warranty terms with the product documentation or supplier.
