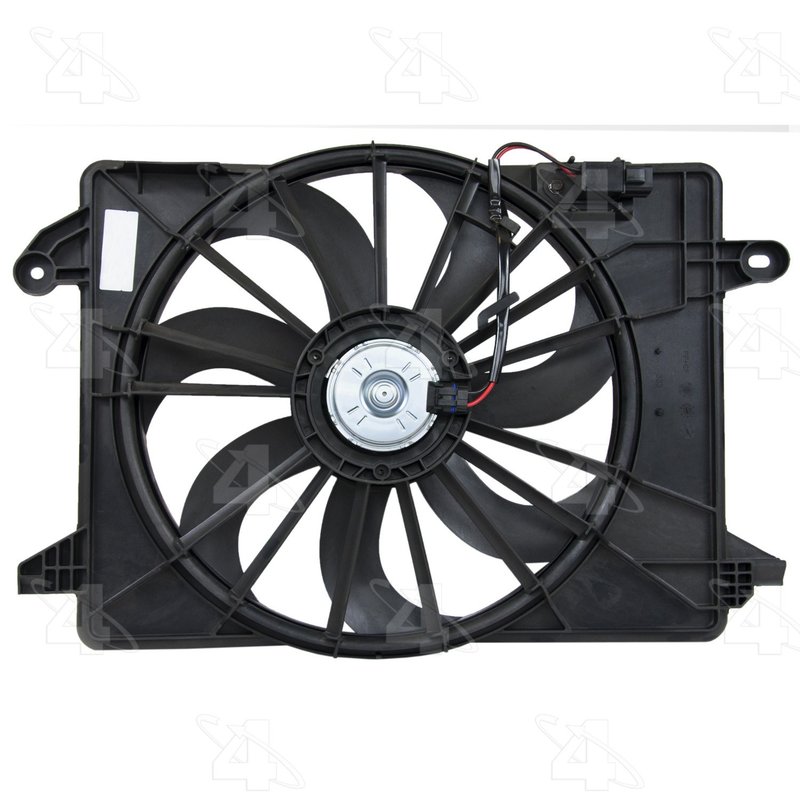

Four Seasons 76230 Engine Cooling Fan Assembly

Overview of Four Seasons Radiator Fan Assy. 76230

The Four Seasons Radiator Fan Assy. 76230 is designed to provide reliable engine cooling for select Chrysler and Dodge vehicles. This engine cooling fan assembly is engineered to meet original equipment specifications, ensuring proper fit and function for models like the Chrysler 300, Dodge Challenger, and Dodge Charger.

• Durable plastic and metal construction for long-lasting performance
• 12-volt electrical motor assembly with a rigid 7-blade plastic fan
• Includes a plastic shroud for optimal airflow and protection
• OE mount type with a female square connector and 3-wire lead
• Compatible with radiator fan mount location on specified vehicles

Four Seasons Radiator Fan Assy. Product Line Details

The Radiator Fan Assy. product line from Four Seasons focuses on delivering engine cooling fan assemblies that meet or exceed OE standards. This line emphasizes electrical fan motor assemblies designed for direct replacement, featuring components such as plastic blade fans and integrated shrouds to maintain proper engine temperature and airflow. The 76230 part is a part of this line, offering a balance of durability and performance for Chrysler and Dodge applications.

Product Features and Specifications

This engine cooling fan assembly features a 12-volt electrical motor with a rigid 7-blade plastic fan designed to efficiently move air through the radiator. The assembly includes a plastic shroud to direct airflow and protect the fan blades. It mounts directly to the radiator fan location using OE mount points, ensuring a secure fit without modification. The connector is a female square type with a 3-wire lead, compatible with the vehicle’s electrical system. The fan clutch is not mounted within this assembly, allowing for compatibility with existing clutch components.

Common Applications and Problem Solving

• Replacement for faulty or damaged radiator fan assemblies on Chrysler 300, Dodge Challenger, and Dodge Charger
• Resolves engine overheating issues caused by inefficient or non-functioning cooling fans
• Addresses electrical fan motor failures that impact engine temperature regulation
• Restores proper airflow through the radiator to maintain optimal engine performance
• Eliminates noise or vibration problems related to worn or broken fan blades

Installation Notes and Tips

Installation requires removal of the existing radiator fan assembly. This part mounts using OE mount points and does not include mounting hardware, so retain original fasteners or acquire appropriate replacements. Ensure electrical connectors match the vehicle’s wiring harness; the 76230 features a female square connector with a 3-wire lead. Since the fan clutch is not included, verify compatibility with the existing clutch before installation. Proper alignment of the shroud and fan blades is essential for optimal cooling performance.

Quality Assurance and Warranty

The Four Seasons Radiator Fan Assy. 76230 is performance rated and designed as an OE replacement part. Manufactured with quality plastic and metal materials, it meets industry standards for durability and reliability. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
