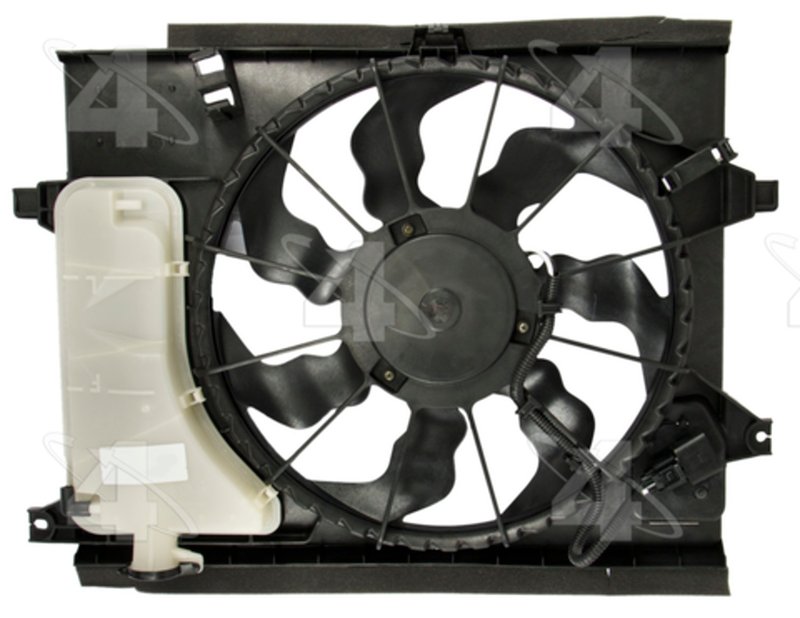

Four Seasons 76277 Engine Cooling Fan Assembly

Overview of Four Seasons Radiator Fan Assy. 76277

The Four Seasons Radiator Fan Assy. 76277 is designed specifically for Kia Soul models, providing reliable engine cooling performance. This electrical engine cooling fan assembly features a durable plastic and metal construction to ensure long-lasting operation.

• Compatible with Kia Soul vehicles
• Electrical 12-volt motor assembly
• Includes a plastic shroud for optimal airflow
• OE mount type for direct replacement
• 7 rigid plastic fan blades for efficient cooling
• Single fan quantity with 3-wire lead and rectangular female connector

Product Line Details: Radiator Fan Assy.

The Radiator Fan Assy. product line by Four Seasons focuses on engine cooling fan assemblies that meet original equipment specifications. This line emphasizes performance-rated components designed to maintain proper engine temperature and airflow. The 76277 model fits within this line as a direct OE replacement, ensuring compatibility and reliable function for Kia Soul vehicles.

Detailed Product Description

This Four Seasons engine cooling fan assembly combines plastic and metal materials to balance durability and weight. The 12-volt electrical motor powers a rigid 7-blade plastic fan, which is mounted on an OE-style hub bolt hole configuration. The assembly includes a plastic shroud to direct airflow efficiently through the radiator. It features a 3-wire lead with a female rectangular connector and male terminals, facilitating straightforward electrical connections. The fan clutch is not mounted within this assembly, allowing compatibility with existing clutch components. Measuring 24.5 inches in width and 17 inches in height, this radiator fan assembly is designed for precise fitment in the Kia Soul's radiator fan mount location.

Common Applications and Issues Addressed

• Replaces faulty or damaged radiator fan assemblies in Kia Soul models
• Resolves engine overheating caused by insufficient cooling airflow
• Addresses electrical fan motor failures
• Improves cooling system efficiency after fan blade damage
• Restores proper radiator fan operation following connector or wiring issues

Installation Notes and Tips

This radiator fan assembly is an OE replacement part and mounts directly to the radiator fan location using the original equipment mount points. Mounting hardware is not included, so retain existing bolts or purchase separately if needed. Ensure electrical connectors match the 3-wire lead with a female rectangular connector for proper installation. Verify that the fan clutch is compatible and mounted separately, as this assembly does not include the fan clutch. Proper alignment and secure mounting are essential for optimal performance and to avoid vibration or noise.

Quality Assurance and Warranty

The Four Seasons Radiator Fan Assy. 76277 is performance rated and manufactured to meet or exceed OE standards. It undergoes quality control testing to ensure reliable operation in Kia Soul vehicles. This part is an OE replacement, providing assurance of fit and function. Warranty details should be confirmed with the original product documentation or supplier.
