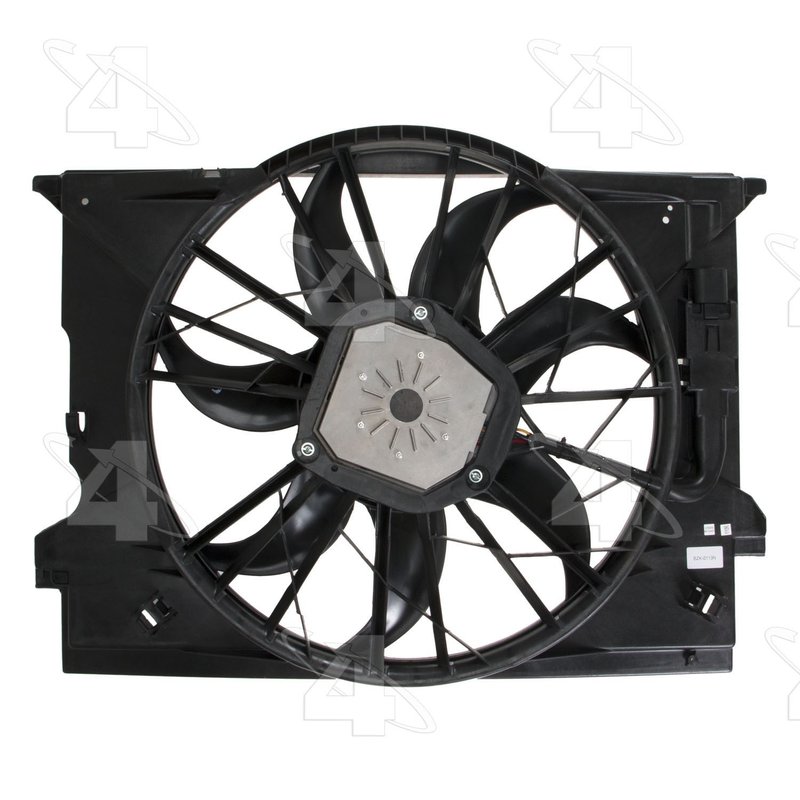

Four Seasons 76288 Engine Cooling Fan Assembly

Radiator Fan Assembly for Mercedes-Benz Cooling

Four Seasons 76288 is an engine cooling fan assembly built for OE-style radiator fan replacement. It uses a plastic and metal construction with a black housing, rigid plastic blade, and included shroud to match the original mounting layout on select Mercedes-Benz applications.

Compatible with Mercedes-Benz CLS350, CLS500, CLS550, E280, E300, E320, E350, E500, E550, CLS55 AMG, and E55 AMG applications, this Four Seasons Radiator Fan Assy. is a direct-fit cooling solution for vehicles that need dependable radiator airflow control. The Four Seasons 76288 is a performance-rated, 12-volt electrical motor assembly with a 4-terminal connector and OE mount design.

Key Features

• OE replacement radiator fan assembly for select Mercedes-Benz models
• Plastic / metal construction with black housing finish
• Included plastic shroud for radiator fan mounting
• 12-volt electrical motor assembly with 4-terminal connector
• Rigid plastic blade design with OE mount fitment
• Performance rated for radiator cooling applications
• Fan clutch not mounted within the assembly

Product Details

Four Seasons 76288 is part of the Radiator Fan Assy. line and is engineered as an OE replacement for vehicles that use an electric radiator fan assembly. The design includes a single rigid blade, square 4-terminal connector, female connector housing, and male terminals for factory-style integration. With a 20.250-inch height and 25.250-inch width, this assembly follows the original mounting format for the listed Mercedes-Benz fitments. Cross-reference part numbers include TYC 621510 and VDO FA70766 for the same application.

Common Cooling Issues This Part Can Address

• Weak or inoperative radiator fan operation
• Insufficient airflow through the radiator at idle or low speed
• Overheating caused by a failed electric fan motor assembly
• Damaged fan shroud or broken blade components
• Electrical connector or terminal wear at the fan assembly

Installation Notes

Verify OE mount location, connector style, and dimensions before installation. Mounting hardware is not included, so reuse or source the correct fasteners as needed. This assembly is intended for radiator fan applications on 2003-2011 Mercedes-Benz E-Class and CLS-Class vehicles listed in the fitment data, including 2006-2011 Mercedes-Benz CLS500, 2007-2011 Mercedes-Benz CLS550, and 2003-2009 Mercedes-Benz E500.

• Fits 2010-2011 Mercedes-Benz CLS350, radiator fan assy.
• Fits 2006-2011 Mercedes-Benz CLS500, radiator fan assy.
• Fits 2007-2011 Mercedes-Benz CLS550, radiator fan assy.
• Fits 2007-2009 Mercedes-Benz E280, radiator fan assy.
• Fits 2008-2009 Mercedes-Benz E300, radiator fan assy.
• Fits 2007-2009 Mercedes-Benz E320, radiator fan assy.
• Fits 2003-2005 Mercedes-Benz E320, radiator fan assy.
• Fits 2006-2009 Mercedes-Benz E350, radiator fan assy.
• Fits 2003-2009 Mercedes-Benz E500, radiator fan assy.
• Fits 2007-2009 Mercedes-Benz E550, radiator fan assy.
• Fits 2006 Mercedes-Benz CLS55 AMG, radiator fan assy.
• Fits 2003-2006 Mercedes-Benz E55 AMG, radiator fan assy.

Quality Assurance

Four Seasons supplies OE-style cooling components for radiator fan replacement, and this 76288 assembly is marked as an OE replacement and performance rated for the listed applications. Confirm connector shape, terminal count, and mounting points against the original unit before final installation.
