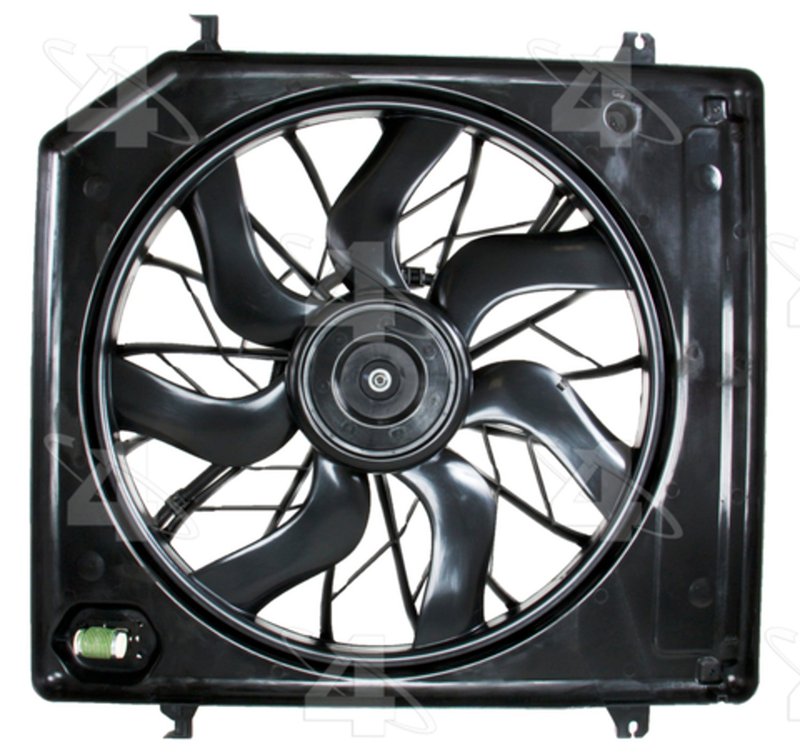

Four Seasons 76309 Engine Cooling Fan Assembly

Overview of Four Seasons Radiator Fan Assembly 76309

The Four Seasons Radiator Fan Assy. 76309 is designed specifically for Kia Sorento models, providing reliable engine cooling performance. This electrical engine cooling fan assembly features a durable plastic and metal construction to ensure long-lasting operation under demanding conditions.

• Material: Plastic and metal components for durability
• Voltage: 12V electrical operation
• Includes plastic shroud for optimized airflow
• OE mount type for direct replacement installation
• 7 rigid plastic fan blades for efficient cooling
• Connector: 3-wire lead with male terminal
• Dimensions: 25.75 inches height, 22.5 inches width
• Fan clutch not included, fan clutch mounted separately
• Shroud included, made of plastic

Detailed Product Description

This Four Seasons Radiator Fan Assy. 76309 is an electrical motor assembly designed to replace the original equipment cooling fan on Kia Sorento vehicles. The assembly includes a rigid 7-blade plastic fan and a plastic shroud to direct airflow efficiently through the radiator. The fan operates on a 12-volt electrical system and features a 3-wire lead connector with male terminals for straightforward electrical integration. The OE mount design ensures compatibility with the factory mounting points, simplifying installation without the need for modification. Note that the fan clutch is not mounted within this assembly and must be installed separately.

About the Four Seasons Radiator Fan Assy. Product Line

The Four Seasons Radiator Fan Assy. product line focuses on providing direct OE replacement cooling fan assemblies that meet or exceed factory specifications. These assemblies are engineered to maintain proper engine temperature by delivering consistent airflow through the radiator. The 76309 model is part of this line, offering a balance of durable materials and precise fitment for Kia Sorento vehicles.

Common Applications and Issues Addressed

• Replacement for faulty or damaged radiator cooling fans
• Resolves engine overheating caused by insufficient airflow
• Fixes electrical fan motor failures in Kia Sorento models
• Addresses noisy or unbalanced fan blade operation
• Restores proper cooling system function after fan clutch removal

Installation Notes and Tips

Installation of the Four Seasons Radiator Fan Assy. 76309 requires removal of the existing fan assembly from the radiator fan mount location. Since mounting hardware is not included, retain original bolts or source OE fasteners. Ensure the 3-wire electrical connector is properly engaged to avoid electrical faults. The fan clutch must be mounted separately if applicable. Verify clearance around the fan blades and shroud before finalizing installation to prevent interference.

Quality Assurance and Warranty

This engine cooling fan assembly is performance rated and designed as an OE replacement part, ensuring compatibility and reliability. Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. For specific warranty details, refer to the manufacturer’s documentation or contact authorized service providers.
