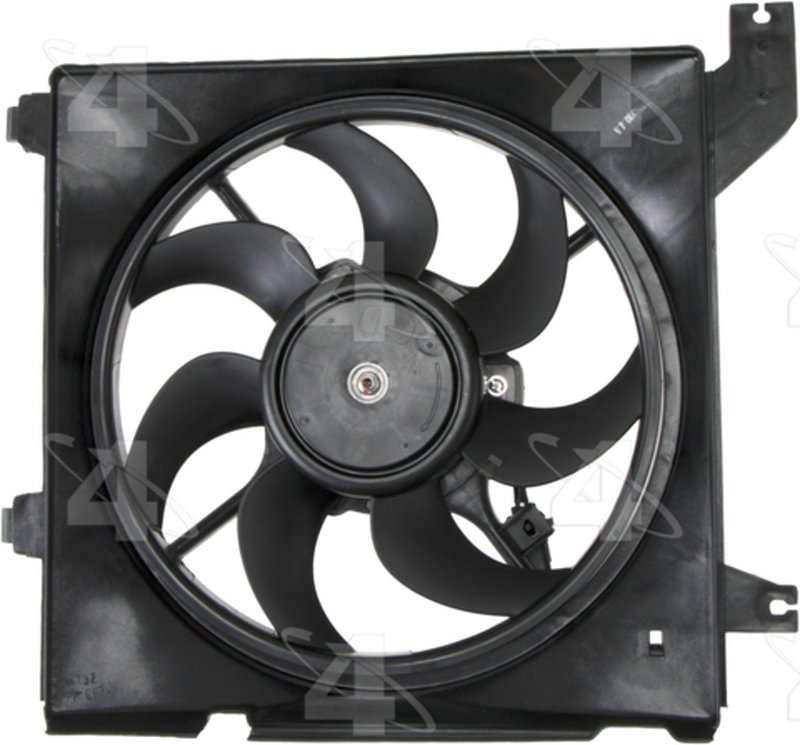

Four Seasons 76314 Engine Cooling Fan Assembly

Overview of Four Seasons Radiator Fan Assy. 76314

The Four Seasons Radiator Fan Assy. 76314 is designed specifically for Hyundai Tiburon models, providing reliable engine cooling performance. This engine cooling fan assembly features a durable plastic and metal construction to ensure long-lasting operation under demanding conditions.

• Material: Combination of plastic and metal for durability
• Voltage: 12V electrical motor assembly
• Includes a plastic shroud for optimal airflow management
• OE mount type with original equipment bolt hole configuration
• Fan blade count: 7 rigid plastic blades
• Electrical connection: 2-wire lead with female connector
• Dimensions: 17.25 inches height by 14.5 inches width
• Fan clutch not mounted within the assembly
• Shroud included, made of plastic

About the Radiator Fan Assy. Product Line

The Four Seasons Radiator Fan Assy. product line focuses on providing complete cooling fan assemblies that meet original equipment specifications. This line is engineered to deliver consistent cooling performance and fitment accuracy, making it suitable for vehicles like the Hyundai Tiburon. The assemblies include the fan, motor, and shroud components, designed to work together for efficient engine temperature regulation.

Detailed Product Description

This Four Seasons engine cooling fan assembly (part number 76314) is an electrical motor assembly operating at 12 volts, designed to replace the radiator fan on Hyundai Tiburon vehicles. The assembly features seven rigid plastic blades mounted on a hub with OE bolt hole configuration, ensuring direct fitment without modification. The included plastic shroud helps direct airflow through the radiator, improving cooling efficiency. The fan clutch is not included within this assembly, allowing compatibility with existing clutch components. The unit connects via a 2-wire lead with a female connector, simplifying installation and electrical integration.

Common Applications and Issues Addressed

• Replaces faulty or worn radiator fan assemblies on Hyundai Tiburon
• Resolves overheating issues caused by inefficient cooling fans
• Eliminates electrical fan motor failures affecting engine temperature control
• Restores proper airflow through the radiator for improved engine performance
• Addresses noise or vibration problems from damaged fan blades or shrouds

Installation Notes and Tips

This radiator fan assembly is designed for OE mounting and fits directly onto the radiator fan location of Hyundai Tiburon models. Mounting hardware is not included, so retain original bolts or source appropriate fasteners. Ensure electrical connectors match the vehicle’s wiring harness for a secure connection. Verify that the fan clutch is compatible and properly installed, as this assembly does not include the clutch. Careful alignment of the shroud and fan blades is recommended to avoid contact with other engine components.

Quality Assurance and Warranty

The Four Seasons Radiator Fan Assy. 76314 is a performance-rated, OE replacement part manufactured to meet industry standards. It undergoes quality control testing to ensure reliable operation and fitment. While specific warranty details are not provided here, Four Seasons typically offers limited warranties on their cooling system components. Consult product documentation or the manufacturer for exact warranty terms.
