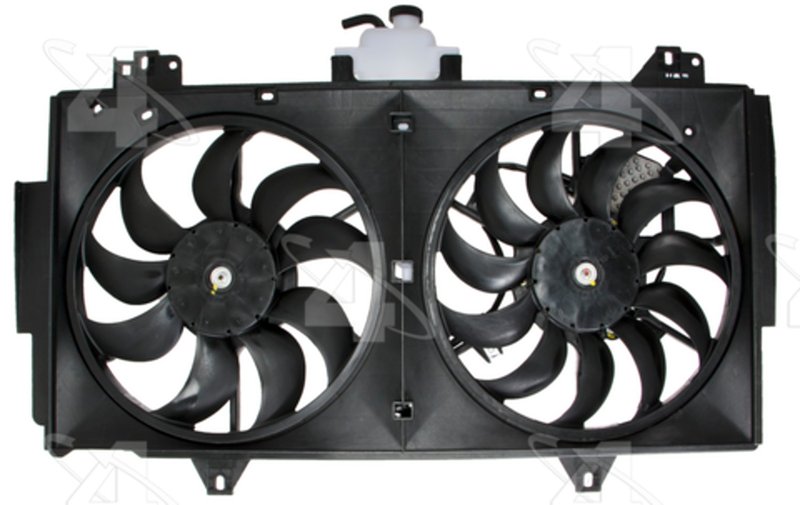

Four Seasons 76319 Dual Radiator and Condenser Fan Assembly

Overview of Four Seasons Rad / Cond Fan Assy. 76319

The Four Seasons Rad / Cond Fan Assy. 76319 is designed specifically for Mazda 6 models, providing reliable cooling performance for both the radiator and condenser. This dual fan assembly ensures efficient airflow to maintain optimal engine temperature and air conditioning system function.

• Dual radiator and condenser fan assembly with two rigid blades
• Constructed from durable plastic and metal materials
• Includes a plastic shroud for improved airflow management
• OE mount type for direct replacement installation
• 12-volt electrical motor assembly with a 2-terminal female connector
• Dimensions: 31.5 inches wide by 16.25 inches high
• Fan clutch not mounted within the assembly
• Shroud included, mounting hardware not included

Product Line Details: Rad / Cond Fan Assy.

The Rad / Cond Fan Assy. product line by Four Seasons focuses on integrated cooling fan assemblies that combine radiator and condenser fans into a single unit. This design simplifies installation and enhances cooling efficiency by coordinating airflow across both components. The 76319 part number is part of this line, engineered to meet OE specifications and performance standards for compatible vehicles.

Detailed Product Description

This Four Seasons dual radiator and condenser fan assembly features a robust plastic and metal construction, ensuring durability and resistance to heat and vibration. The assembly includes two rigid fan blades housed within a black plastic shroud, which optimizes airflow direction and cooling efficiency. The electrical motor operates at 12 volts and connects via a single oval-shaped 2-terminal female connector, facilitating straightforward electrical integration. The OE mount design allows for a direct fit replacement on Mazda 6 models, maintaining factory mounting points and alignment. Note that the fan clutch is not included within this assembly, and mounting hardware must be sourced separately.

Common Applications and Issues Addressed

• Replacement of faulty or worn dual radiator and condenser fan assemblies on Mazda 6
• Resolving engine overheating due to inadequate radiator cooling
• Improving air conditioning condenser performance for better climate control
• Addressing electrical fan motor failures causing cooling system inefficiency
• Restoring proper airflow with a complete shroud and fan blade assembly

Installation Notes and Tips

Installation of the Four Seasons 76319 fan assembly requires removal of the existing dual fan unit from the radiator and condenser area. Ensure the electrical connector matches the 2-terminal female oval connector provided. Since mounting hardware is not included, retain original fasteners or acquire appropriate OE mounting bolts. Verify that the fan clutch is installed separately if required by the vehicle. Proper alignment of the shroud and fan blades is critical to avoid contact with other engine components.

Quality Assurance and Warranty

Four Seasons Rad / Cond Fan Assy. 76319 is manufactured to meet OE replacement standards and is performance rated for reliable operation. The assembly undergoes quality control testing to ensure electrical and mechanical functionality. While specific warranty details are not provided here, Four Seasons typically offers limited warranties on their cooling system components. Consult product documentation or the manufacturer for exact warranty terms.
