Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

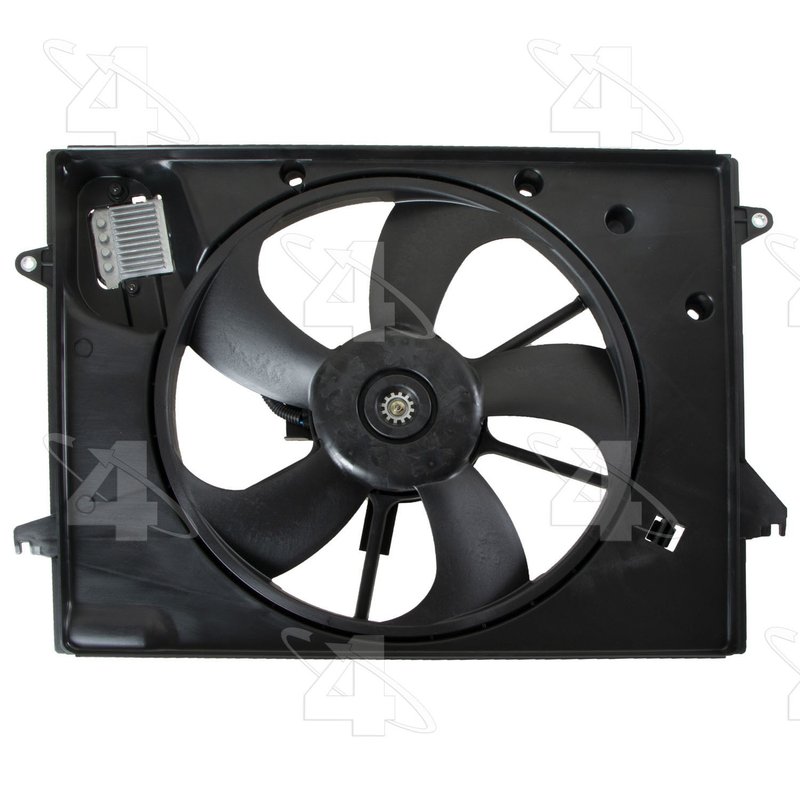

Four Seasons 76389 Engine Cooling Fan Assembly
| Brand | Four Seasons 76389 |
|---|---|
| Material | Plastic / metal |
| Voltage | 12 |
| Housing Finish | Black |
| Hub Bolt Hole Quantity | Oe mount |
| Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
| Fan Quantity | 1 |
| Shroud Included | Included |
| Shroud Material | Plastic |
| Shroud Color | Black |
| Terminal Quantity | 5 |
| Terminal Gender | Male |
| Blade Material | Plastic |
| Blade Type | Rigid |
| Electrical Or Mechanical | Electrical |
| Fan 1 Blade Quantity | 5 |
| Connector Qty | 1 |
| Connector Type | Prong |
| Description | Cooling fan assemblies |
| Height IN | 19.250 |
| Mount Location | Radiator fan |
| Mount Type | Oe mount |
| Mounting Hardware? | Not included |
| O.E. Replacement? | Yes |
| Package Length IN | 29.16 |
| Performance Rated? | Yes |
| Style | Radiator fan |
| Type | Motor assembly |
| Width IN | 29.16 |
| Product line | Radiator Fan Assy. |
| Fits | Hyundai · 5 vehicles |
OE replacement. Direct-fit cooling fan assembly for straightforward installation.
Plastic / metal construction. Combines durable materials with a black housing and shroud.
Electrical design. 12-volt motor assembly with a rigid 5-blade fan.
Cross-references Four Seasons 76389, Global Parts Distributors LLC 2811953 and Global Parts Distributors LLC 2811964 for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator Fan Assembly for Hyundai Sonata
Four Seasons 76389 is an OE replacement engine cooling fan assembly built for radiator fan service on select Hyundai Sonata applications. It combines a plastic and metal construction with a black shroud and an OE mount layout for direct replacement use.
Compatible with 2015 Hyundai Sonata, 2016 Hyundai Sonata with fan blade and motor, and 2017 Hyundai Sonata radiator fan applications, this Four Seasons radiator fan assembly is built for 12-volt electrical operation and uses a 5-terminal male prong connector.
Key Features
- Four Seasons Radiator Fan Assy. line
- Part number 76389
- OE replacement engine cooling fan assembly
- Electrical motor assembly with 12-volt operation
- Plastic blade with rigid 5-blade design
- Included black plastic shroud
- OE mount and OE replacement design
- Fan clutch not mounted within the assembly
Product Details
This radiator fan assembly is designed for radiator fan mounting locations and uses a single fan configuration with a rigid plastic blade. The housing finish is black, and the assembly includes a 5-terminal male connector with one prong-style connector interface. Four Seasons 76389 cross-references TYC 623700 for the same application.
Common Cooling System Issues It May Address
- Engine temperature rising at idle or in slow traffic
- Weak or inoperative radiator fan operation
- Cooling fan noise caused by worn motor components
- Fan blade or shroud damage from age or heat exposure
- Electrical connector or terminal wear at the fan assembly
Installation Notes and Tips
Verify OE mount alignment, connector style, and radiator fan location before installation. Mounting hardware is not included, so reuse or source the correct fasteners as needed. Confirm the vehicle uses the matching 12-volt electrical setup and inspect the cooling system for related faults before replacing the assembly.
Quality Assurance
Four Seasons 76389 is listed as an OE replacement and performance-rated cooling fan assembly for direct-fit service on the specified Hyundai Sonata applications. It is built to match the original radiator fan assembly layout for 2015-2017 Sonata coverage.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2017 | Hyundai | Sonata | Limited | 2.4L | L4 | — | N/A | Engine Cooling Fan Assembly RF Assy; Radiator Fan Assy. |
| 2017 | Hyundai | Sonata | SE | 2.4L | L4 | — | N/A | Engine Cooling Fan Assembly RF Assy; Radiator Fan Assy. |
| 2017 | Hyundai | Sonata | Sport | 2.4L | L4 | — | N/A | Engine Cooling Fan Assembly RF Assy; Radiator Fan Assy. |
| 2016 | Hyundai | Sonata | — | 2.4L | L4 | — | N/A | w/ Fan Blade and Motor; Radiator Fan Assy. |
| 2015 | Hyundai | Sonata | — | 2.4L | L4 | ELECTRIC/GAS | N/A | Radiator Fan Assy. |
