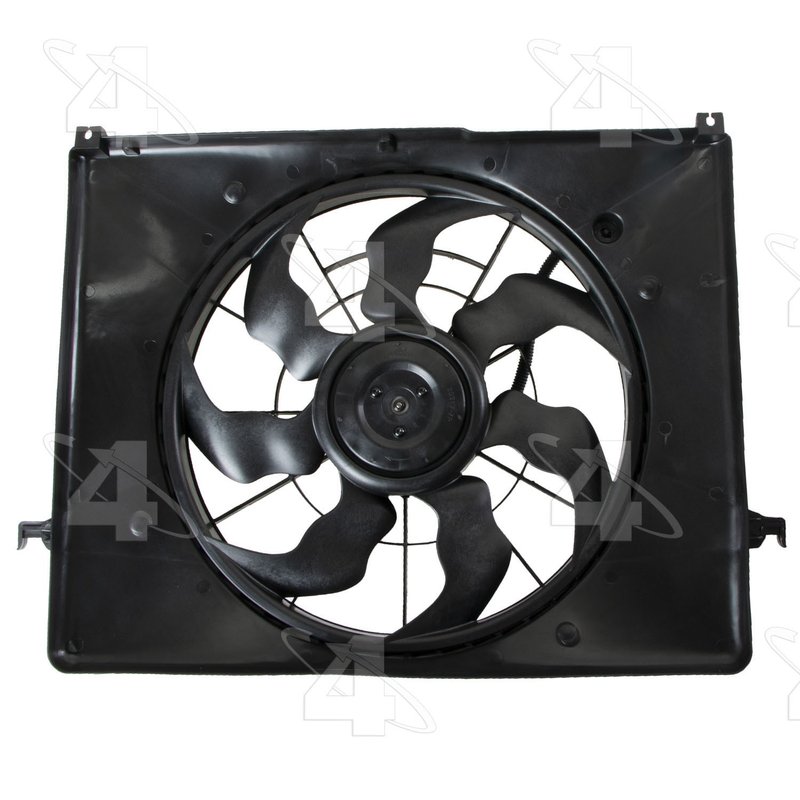

Four Seasons 76396 Engine Cooling Fan Assembly
| Brand | Four Seasons 76396 |
|---|---|
| Blade Material | Plastic |
| Blade Type | Rigid |
| Connector Qty | 1 |
| Connector Type | 2 Spade |
| Description | Cooling Fan Assemblies |
| Electrical Or Mechanical | Electrical |
| Fan 1 Blade Quantity | 7 |
| Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
| Fan Quantity | 1 |
| Height IN | 20.250 |
| Housing Finish | Black |
| Hub Bolt Hole Quantity | OE Mount |
| Material | Plastic / Metal |
| Mount Location | Radiator Fan |
| Mount Type | OE mount |
| Mounting Hardware? | Not Included |
| O.E. Replacement? | Yes |
| Performance Rated? | Yes |
| Shroud Color | Black |
| Shroud Included | Included |
| Shroud Material | Plastic |
| Style | Radiator Fan |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Type | Motor Assembly |
| Voltage | 12 |
| Width IN | 28.125 |
| Product line | Radiator Fan Assy. |
| Fits | Hyundai · 2 vehicles |
OE replacement. Direct-fit cooling fan assembly with OE mount and no fan clutch included.
Complete assembly. Includes shroud, rigid 7-blade fan, and motor for a ready-to-install setup.
Electrical design. 12-volt unit with a 2-spade connector and 2 male terminals.
Cross-references Four Seasons 76396, TYC 623330 and 253800A170 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator Fan Assembly for Hyundai Sonata
Four Seasons 76396 is an OE replacement engine cooling fan assembly for the radiator fan location. It is built with a plastic and metal construction, 12-volt electrical operation, and an included black shroud for a direct-fit style service replacement.
Compatible with 2009-2010 Hyundai Sonata radiator fan applications, this Four Seasons Radiator Fan Assy. is identified by part number 76396 and cross-references TYC 623330 for the same application.
Key Features
- OE replacement engine cooling fan assembly
- 12-volt electrical motor assembly
- Plastic blade with rigid 7-blade design
- Black plastic shroud included
- 2-spade connector with 2 male terminals
- OE mount design for radiator fan location
- Plastic / metal construction
- Performance rated
Product Details
The Four Seasons 76396 radiator fan assembly is a direct replacement cooling fan assembly for Hyundai Sonata models from 2009 to 2010. It uses an electrical motor assembly layout with a single rigid plastic fan blade set inside a black plastic shroud, helping restore radiator airflow management in the engine cooling system. The assembly is built for OE mount applications and does not include a fan clutch within the assembly.
Four Seasons 76396 is a practical choice when servicing a Hyundai Sonata radiator fan assembly that needs an OE-style replacement. The part number 76396 is also listed with interchange references 253800A170 and A11532.
Common Issues This Part May Address
- Inoperative radiator fan motor
- Reduced airflow through the radiator
- Cooling fan noise from a worn assembly
- Overheating caused by fan assembly failure
- Damaged or cracked fan shroud components
Installation Notes and Tips
Verify connector style, terminal layout, and OE mount points before installation. This assembly uses a 2-spade connector and 2 male terminals, with mounting hardware not included. Confirm radiator fan clearance, shroud alignment, and electrical connection integrity during replacement on 2009-2010 Hyundai Sonata applications.
Quality Assurance
Four Seasons supplies OE replacement cooling components, and this radiator fan assembly is performance rated for service use. Part number 76396 is built to match the listed application requirements for 2009-2010 Hyundai Sonata radiator fan service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2010 | Hyundai | Sonata | 2.4L | L4 | N/A | Radiator Fan Assy. |
| 2009 | Hyundai | Sonata | 2.4L | L4 | N/A | Radiator Fan Assy. |
