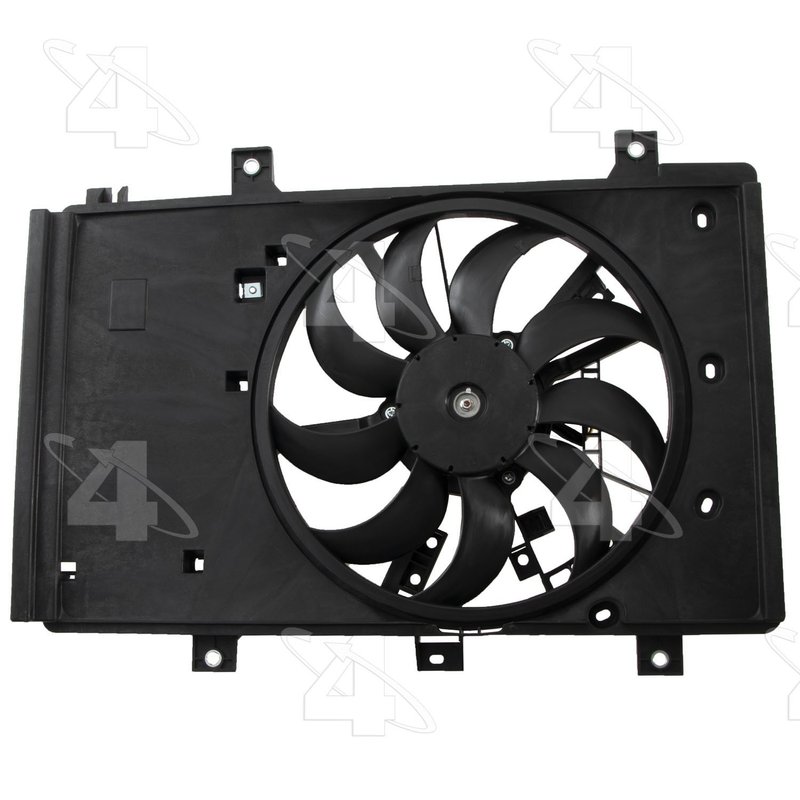

Four Seasons 76408 Engine Cooling Fan Assembly

Overview of Four Seasons Radiator Fan Assembly 76408

The Four Seasons Radiator Fan Assy. 76408 is designed to provide reliable engine cooling for select Toyota and Scion models. This engine cooling fan assembly features a durable plastic and metal construction with an OE mount design, ensuring compatibility and performance for vehicles like the Toyota Yaris, Yaris iA, Yaris R, and Scion iA.

• Material: Plastic and metal components for durability
• Voltage: 12V electrical motor assembly
• Includes plastic shroud for optimized airflow
• OE mount type for direct fit installation
• Fan clutch not mounted within assembly
• Rigid blade type with one fan included
• 4-pin female electrical connector with one connector included
• Dimensions: 25 inches width by 16.7 inches height

Details on the Radiator Fan Assy. Product Line

The Four Seasons Radiator Fan Assy. product line focuses on complete cooling fan assemblies designed to meet original equipment specifications. This line provides components that integrate the fan blade, motor, and shroud into a single assembly, simplifying replacement and ensuring proper fitment. The 76408 model is part of this line, offering a direct OE replacement for compatible Toyota and Scion vehicles without the fan clutch included, allowing for flexible installation options.

Product Description and Features

This engine cooling fan assembly operates on a 12-volt electrical motor, delivering consistent airflow to maintain optimal engine temperature. The assembly includes a rigid fan blade and a plastic shroud that enhances cooling efficiency by directing airflow through the radiator. The black housing finish and OE mount type ensure that the part integrates seamlessly with the vehicle’s existing cooling system. The 4-pin female connector and single connector design facilitate straightforward electrical connections. Note that mounting hardware is not included, and the fan clutch must be sourced separately if required.

Compatible Vehicles and Common Applications

• Replacement for cooling fan assembly issues in Toyota Yaris, Yaris iA, and Yaris R models
• Suitable for Scion iA engine cooling system repairs
• Addresses overheating caused by faulty or worn fan assemblies
• Resolves electrical fan motor failures impacting engine temperature regulation
• Replaces damaged or broken fan blades and shrouds

Installation Notes and Tips

Installation requires removal of the existing radiator fan assembly and proper alignment with the OE mount points. Since mounting hardware is not included, retain original fasteners or acquire compatible hardware separately. Ensure the 4-pin connector is securely attached to the vehicle’s wiring harness to maintain electrical function. Verify that the fan clutch is installed if your vehicle requires it, as this assembly does not include the clutch.

Quality Assurance and Warranty

The Four Seasons Radiator Fan Assy. 76408 is performance rated and designed as an OE replacement part, meeting manufacturer specifications for fit and function. This ensures reliable operation within the cooling system of compatible Toyota and Scion vehicles. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
