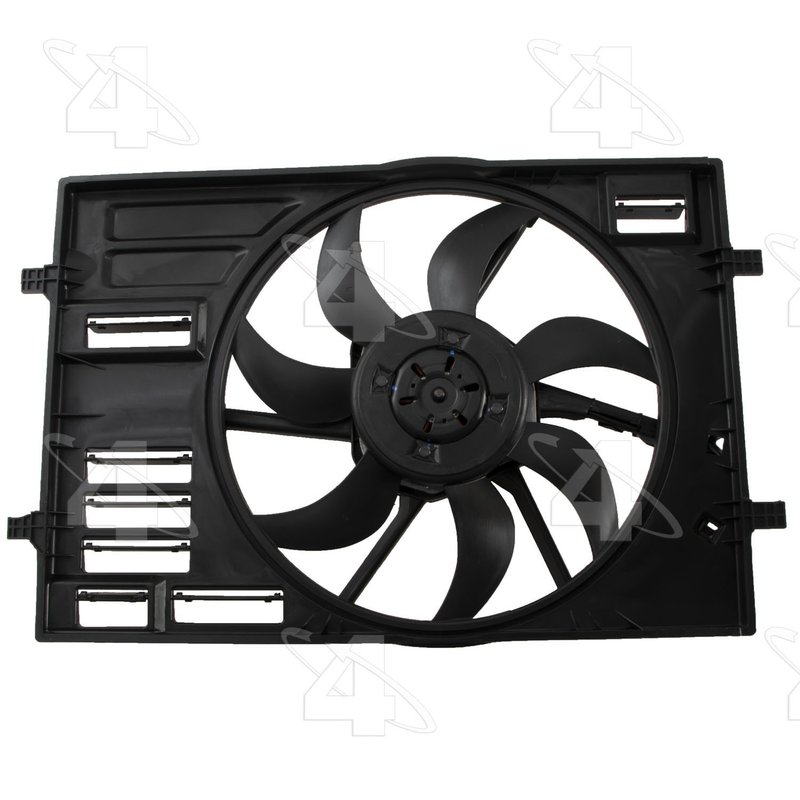

Four Seasons 76409 Engine Cooling Fan Assembly

Overview of Four Seasons Radiator Fan Assy. 76409

The Four Seasons Radiator Fan Assy. 76409 is designed to provide reliable engine cooling for select Volkswagen models. This engine cooling fan assembly is engineered to maintain optimal operating temperatures, ensuring consistent performance for vehicles like the Volkswagen Golf, Jetta, and Taos.

• Material: Durable plastic and metal construction
• Voltage: 12V electrical motor assembly
• Includes plastic shroud for efficient airflow
• OE mount type with original equipment bolt hole configuration
• Fan clutch not mounted within the assembly
• Equipped with a 4-pin female electrical connector
• Dimensions: 26.37 inches width by 18.66 inches height

Detailed Product Description

This Four Seasons Radiator Fan Assy. 76409 features a rigid blade type designed for effective air movement through the radiator. The assembly includes a plastic shroud that helps direct airflow, improving cooling efficiency. It operates on a 12-volt electrical motor system and connects via a single 4-pin female connector, compatible with the original equipment wiring harness. The fan assembly is constructed from a combination of plastic and metal materials, providing a balance of durability and weight savings. It mounts directly to the radiator using OE mount points, ensuring a precise fit for Volkswagen models such as the e-Golf, Golf Alltrack, Golf R, Golf SportWagen, GTI, Jetta, and Taos.

About the Radiator Fan Assy. Product Line

The Four Seasons Radiator Fan Assy. product line focuses on delivering engine cooling fan assemblies that meet original equipment specifications. This line is designed to replace factory-installed radiator fans with components that maintain proper airflow and cooling performance. The 76409 model is a direct OE replacement, performance rated to meet the demands of Volkswagen vehicles, and includes the necessary shroud for installation, although mounting hardware is not included.

Common Applications and Issues Addressed

• Overheating due to faulty or worn radiator fan assemblies
• Inconsistent engine temperature regulation in Volkswagen Golf and Jetta models
• Electrical fan motor failure causing cooling system inefficiency
• Damaged or missing fan shroud affecting airflow and cooling
• Replacement for original radiator fan assemblies in e-Golf and Taos vehicles

Installation Notes and Tips

• Ensure compatibility with your specific Volkswagen model before installation
• OE mount type allows for direct replacement without modification
• Mounting hardware is not included; reuse existing hardware or acquire separately
• Verify electrical connector type matches vehicle wiring harness (4-pin female connector)
• Handle the plastic shroud carefully to avoid damage during installation

Quality Assurance and Warranty

The Four Seasons Radiator Fan Assy. 76409 is performance rated and designed to meet original equipment standards for Volkswagen vehicles. This ensures reliable operation and durability under normal driving conditions. While specific warranty details are not provided, Four Seasons products typically adhere to industry quality standards for engine cooling components.
