Four Seasons 76414 Engine Cooling Fan Assembly

Overview of Four Seasons Radiator Fan Assy. 76414

The Four Seasons Radiator Fan Assy. 76414 is designed specifically for the Mazda CX-9, providing reliable engine cooling performance. This engine cooling fan assembly features a durable combination of plastic and metal materials to ensure long-lasting operation in demanding conditions.

• Compatible with Mazda CX-9 models
• OE mount type for direct fit installation
• Constructed with plastic and metal components for durability
• Includes one cooling fan with a black plastic shroud
• Operates on 12-volt electrical system with a 3-pin male connector
• Fan dimensions: approximately 21.85 inches in height and 299.21 inches in width

Product Line Details: Radiator Fan Assy.

The Radiator Fan Assy. product line by Four Seasons focuses on providing complete engine cooling fan assemblies that meet original equipment specifications. This line is engineered to deliver efficient airflow and maintain optimal engine temperatures, helping to prevent overheating in vehicles like the Mazda CX-9. The assemblies are designed for straightforward OE mounting, ensuring compatibility and ease of replacement.

Detailed Product Description

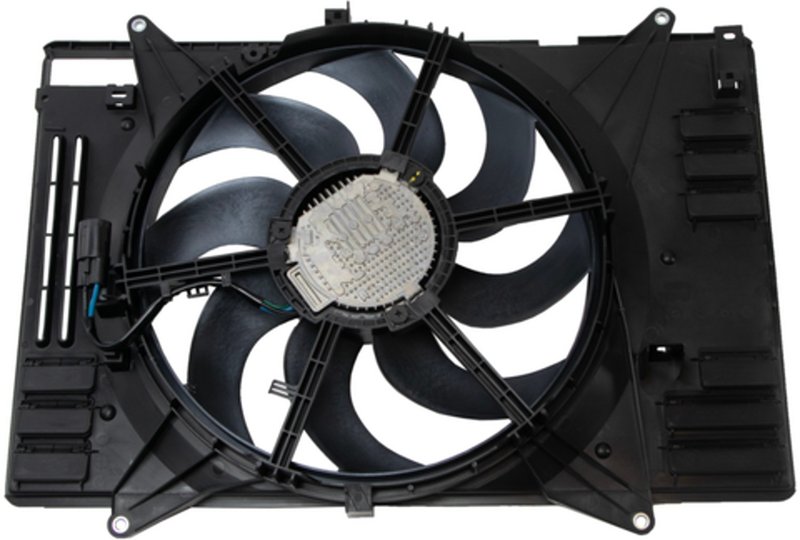

This Four Seasons engine cooling fan assembly (part number 76414) features a single black fan blade housed within a plastic shroud. The combination of plastic and metal materials balances weight and strength, contributing to effective heat dissipation. The assembly includes a 3-pin male electrical connector compatible with the Mazda CX-9's 12-volt system, ensuring proper electrical connection and fan operation. The OE mount type allows for a direct fit replacement without modification, maintaining factory performance standards.

Common Applications and Issues Addressed

• Replaces faulty or damaged radiator cooling fans in Mazda CX-9 vehicles
• Resolves engine overheating caused by insufficient airflow
• Addresses fan motor failure or electrical connector issues
• Improves cooling system efficiency after radiator or thermostat replacement
• Eliminates noise or vibration from worn fan assemblies

Installation Notes and Tips

Installation of the Four Seasons Radiator Fan Assy. 76414 requires removal of the existing fan assembly from the Mazda CX-9. Since mounting hardware is not included, retain original fasteners or acquire appropriate replacements. Ensure the 3-pin male connector is securely attached to the vehicle’s wiring harness to maintain proper electrical function. Verify clearance around the fan blades to prevent interference with other engine components.

Quality Assurance and Warranty

Four Seasons manufactures this radiator fan assembly to meet or exceed OEM standards for fit, form, and function. The part number 76414 undergoes quality control testing to ensure reliable operation within the Mazda CX-9 cooling system. Warranty coverage details should be confirmed with the product documentation or supplier.
