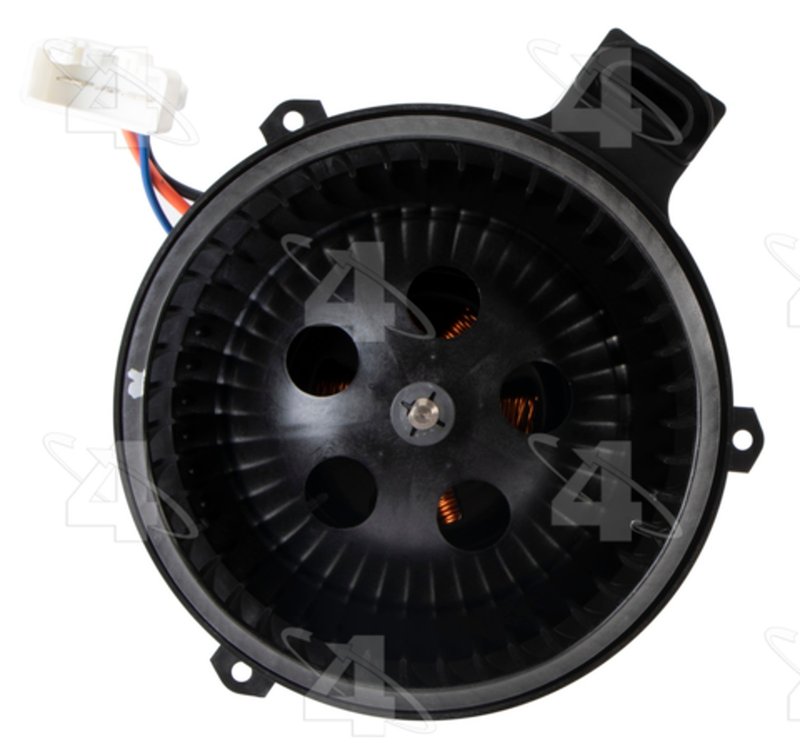

Four Seasons 76502 HVAC Blower Motor

Overview of Four Seasons Blower Motor 76502

The Four Seasons Blower Motor 76502 is designed to restore proper airflow in your vehicle's HVAC system. Engineered for select Cadillac, Chevrolet, and Toyota models, this blower motor assembly ensures reliable operation and efficient climate control performance.

• 12-volt brushless blower motor assembly
• Includes a 6.083-inch diameter vented cage wheel
• Flanged end design with OE mounting style
• Three male terminals with 3 lead wires and female connector
• Counterclockwise rotation for precise fitment
• Constructed from durable plastic and metal materials

Four Seasons Blower Motor Product Line Details

The Four Seasons Blower Motor line focuses on delivering direct OE replacement HVAC blower motors that meet original equipment specifications. This product line emphasizes compatibility and durability, providing components that integrate seamlessly with factory HVAC systems. The 76502 blower motor is part of this line, offering a flanged style motor with vented design and included cage wheel to maintain optimal airflow and system efficiency.

Product Features and Specifications

This HVAC blower motor features a 12-volt brushless design, ensuring quieter operation and longer service life. The motor includes a vented cage wheel measuring 6.083 inches in diameter and 2.6875 inches in height, which helps maintain consistent airflow through the HVAC system. The flanged end and OE mount type allow for straightforward installation in compatible vehicles. The motor rotates counterclockwise and is equipped with three male terminals and a female connector with three lead wires, including both spade and connector terminal types for secure electrical connections. Constructed from a combination of plastic and metal, this blower motor assembly balances durability with weight considerations.

Compatible Vehicles and Applications

• Cadillac ATS
• Chevrolet Camaro
• Cadillac CTS
• Toyota Prius
• Toyota Prius Plug-In
• Toyota Prius V

This blower motor assembly is designed as a direct OE replacement for these specific makes and models, ensuring proper fit and function within the HVAC system.

Common Issues Addressed by Four Seasons Blower Motor 76502

• Reduced or no airflow from HVAC vents
• Intermittent blower motor operation
• Unusual noises or vibrations from the blower motor area
• HVAC system overheating due to poor ventilation
• Failure of original blower motor components

Installation Notes and Tips

Installation of the Four Seasons Blower Motor 76502 requires removal of the existing blower motor assembly. Ensure the vehicle's battery is disconnected before beginning work to prevent electrical hazards. The OE mount and flanged end design facilitate alignment and secure attachment. Verify the three lead wires and connector terminals match the vehicle's wiring harness for proper electrical connection. Testing the blower motor operation before reassembling the HVAC housing is recommended to confirm correct installation.

Quality Assurance and Warranty

The Four Seasons Blower Motor 76502 is a new, not remanufactured, component designed to meet or exceed original equipment standards. It undergoes quality control inspections to ensure reliable performance. This part is an OE replacement, providing assurance of compatibility and durability. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
